Highly Angle Sensor: Internal use of angle sensor for 360 degree measurement, the wind indicator protector ensures linear and high accuracy for use.
Low Inertia ABS Construction: Utilizes low inertia ABS material for improved wind direction response, robust construction, resistance, and term durability.
Wind Direction Measurement: Operates on a rotating principle for accurate wind direction measurements, featuring no dead spots and strong strike resistance.

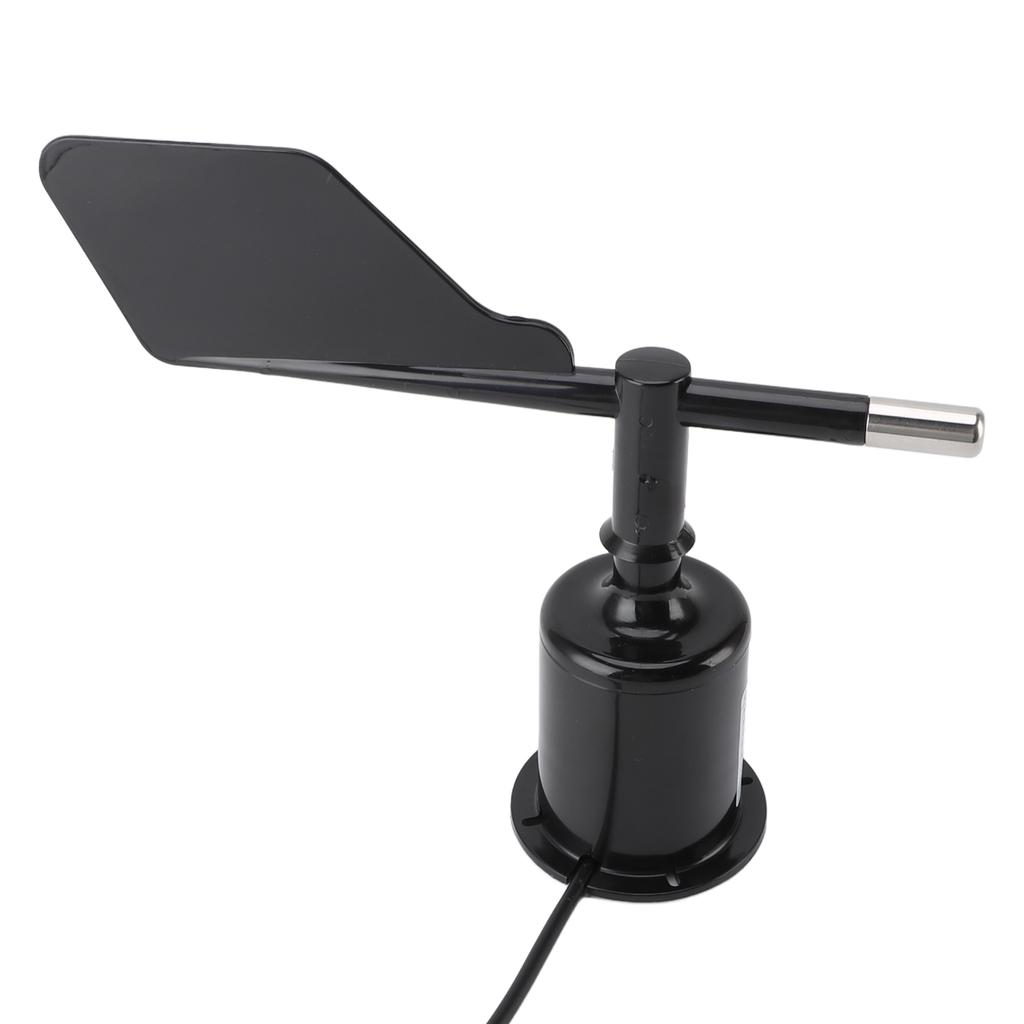

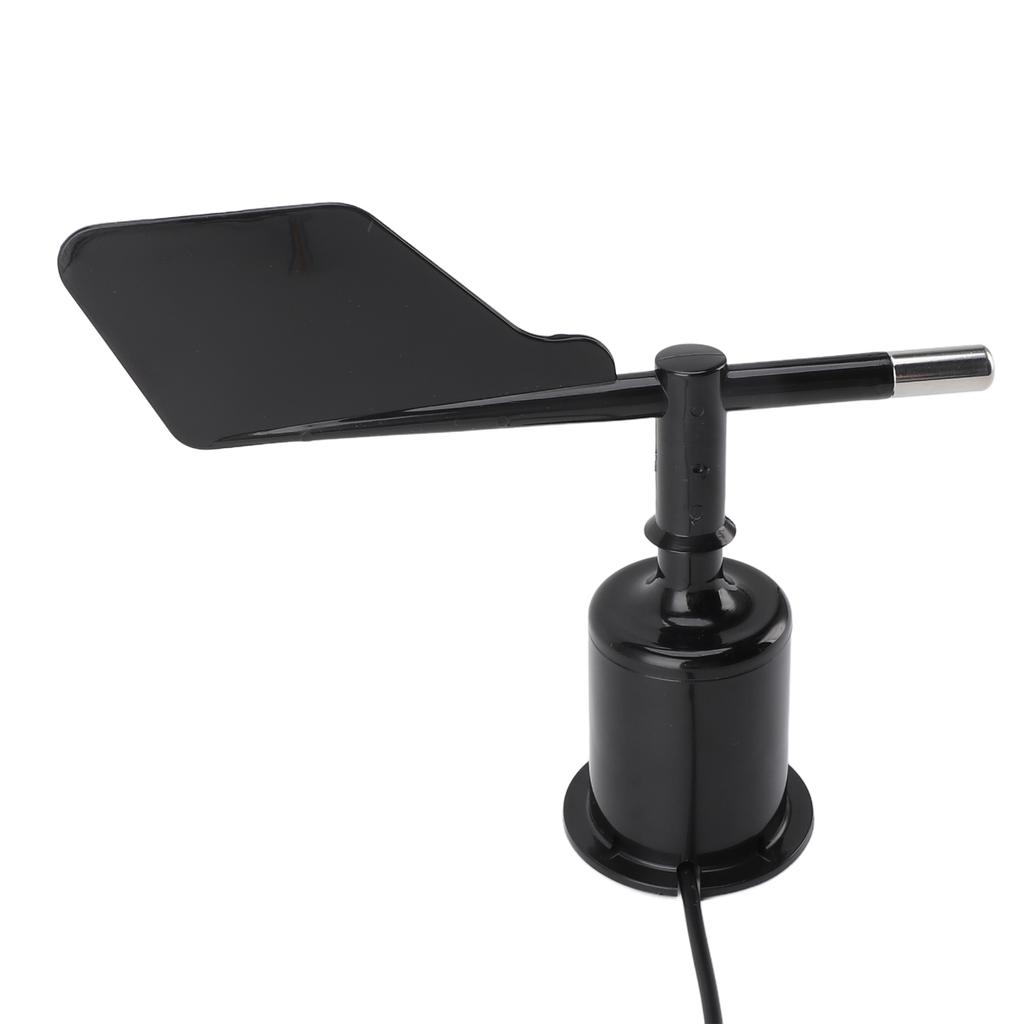

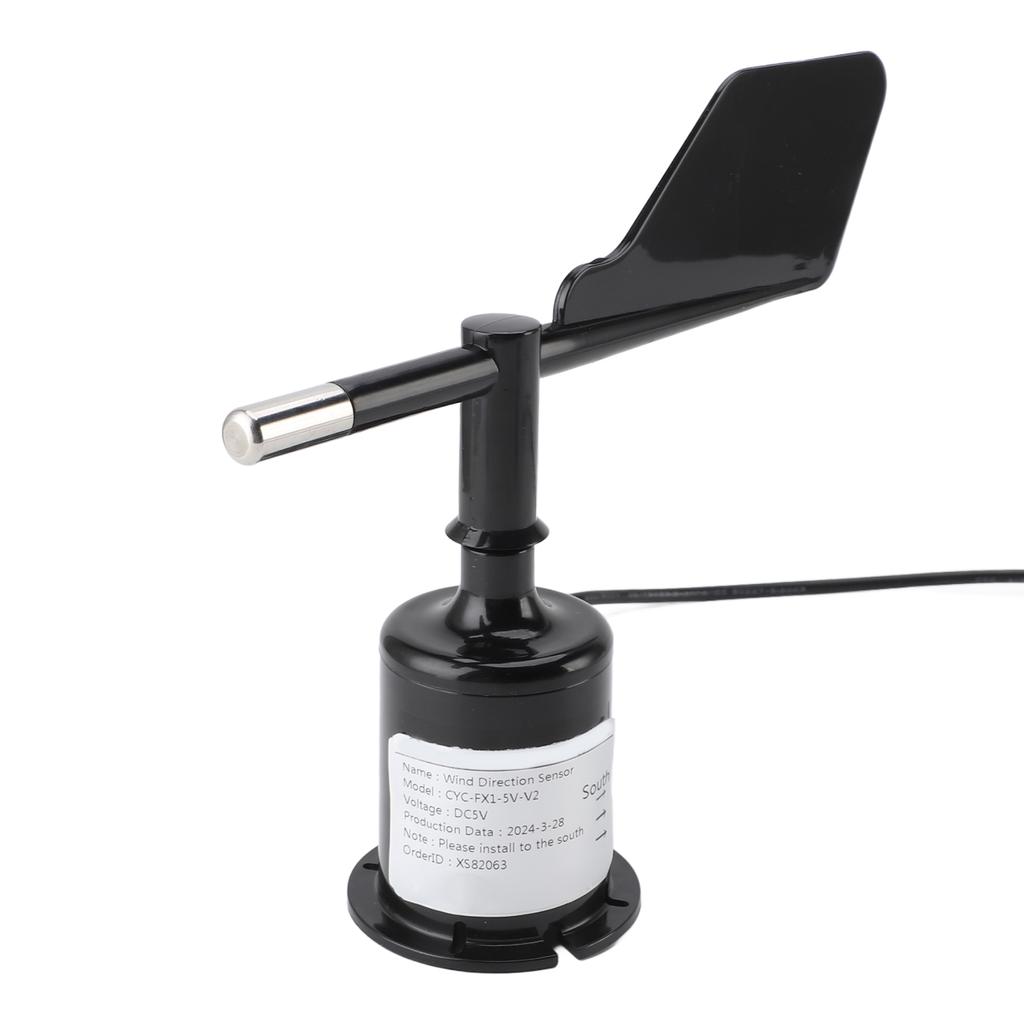

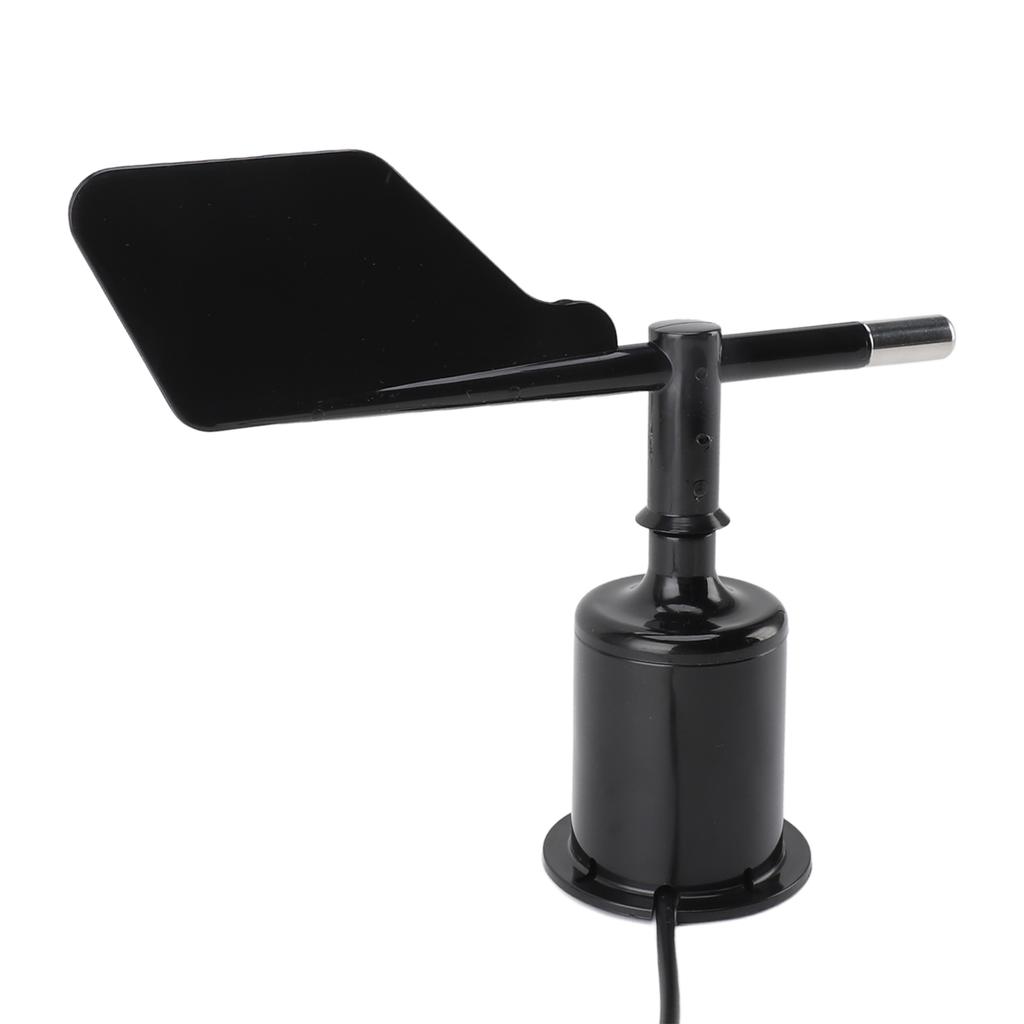

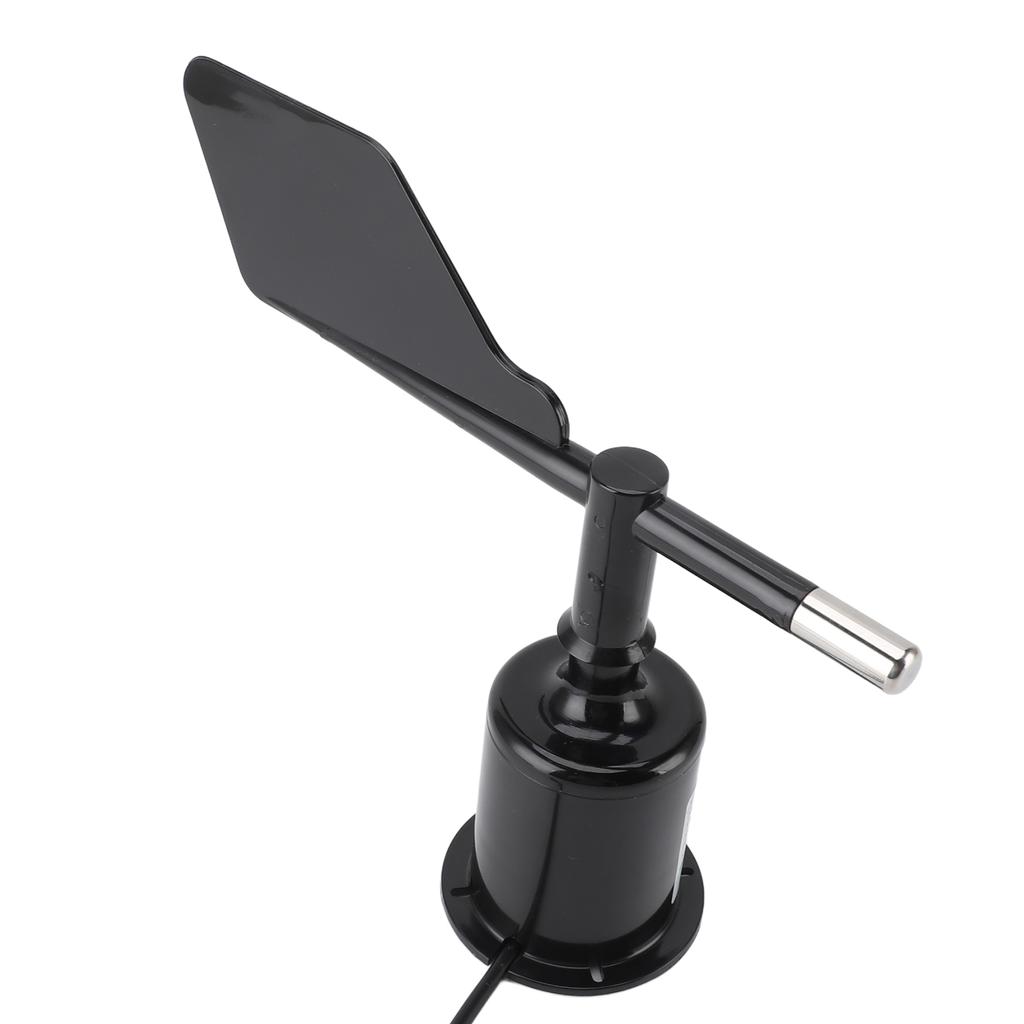

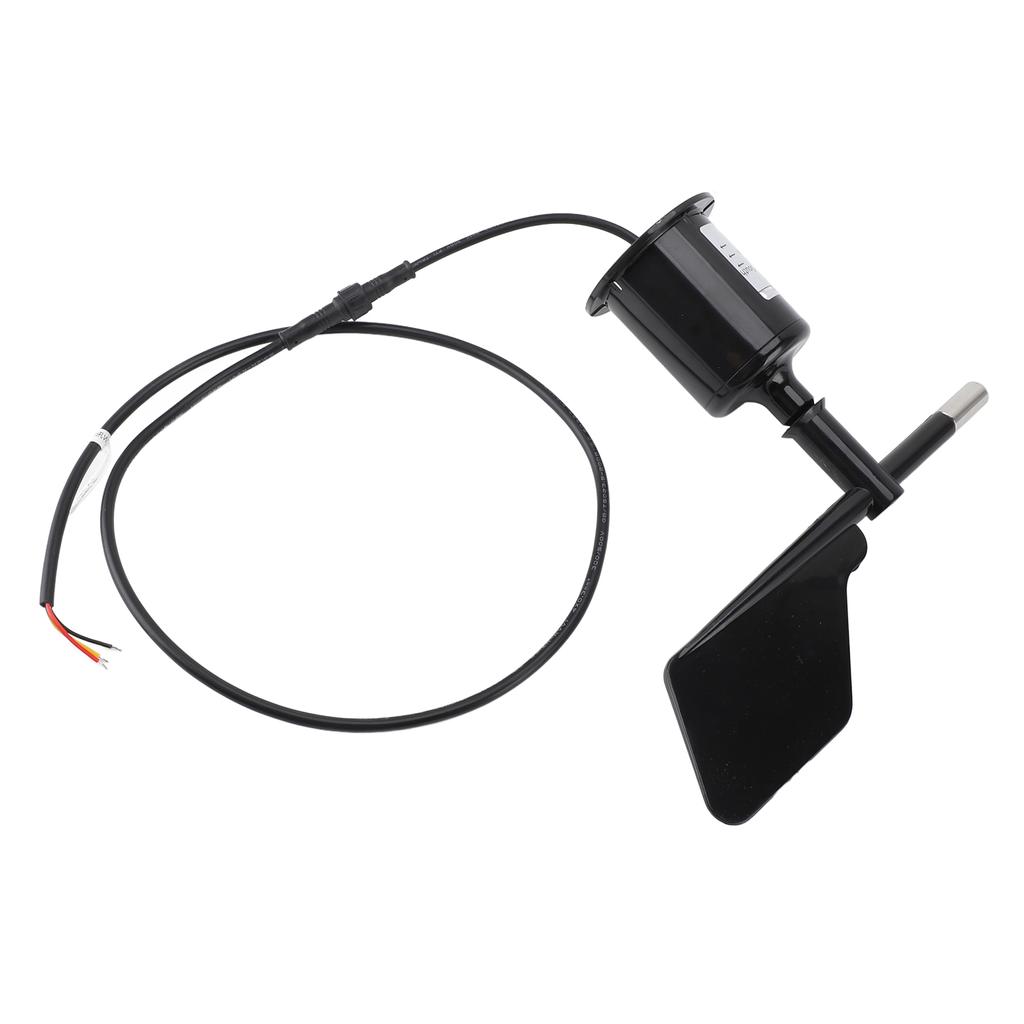

Item Type: Wind Direction Sensor
Material: ABS
Weight: Approx. 385.00gCelsius13.58oz
Product Size: Approx. 223x190x70mmCelsius8.78x7.48x2.76in
Power Supply Voltage: 5V
Output: 0 to 2.5V
Extension Cable Length: 0.8m
Accuracy: directional: +Celsius-3 degrees
Resolution: directional: 1 degrees
Startup Wind Speed: less than 0.8mCelsiuss
Maximum Power Consumption: 0.48W
Load Capacity: 12V power supply, current output impedance less than 350 Ohm
24V power supply, current output impedance less than 900 Ohm
Voltage output impedance more than 1K Ohm
Operating Environment: Temperature -35 celsius to 60 celsius
Humidity less than 100% non condensing
Protecting : IP64
Cable : Rated voltage: 300V 80 celsius

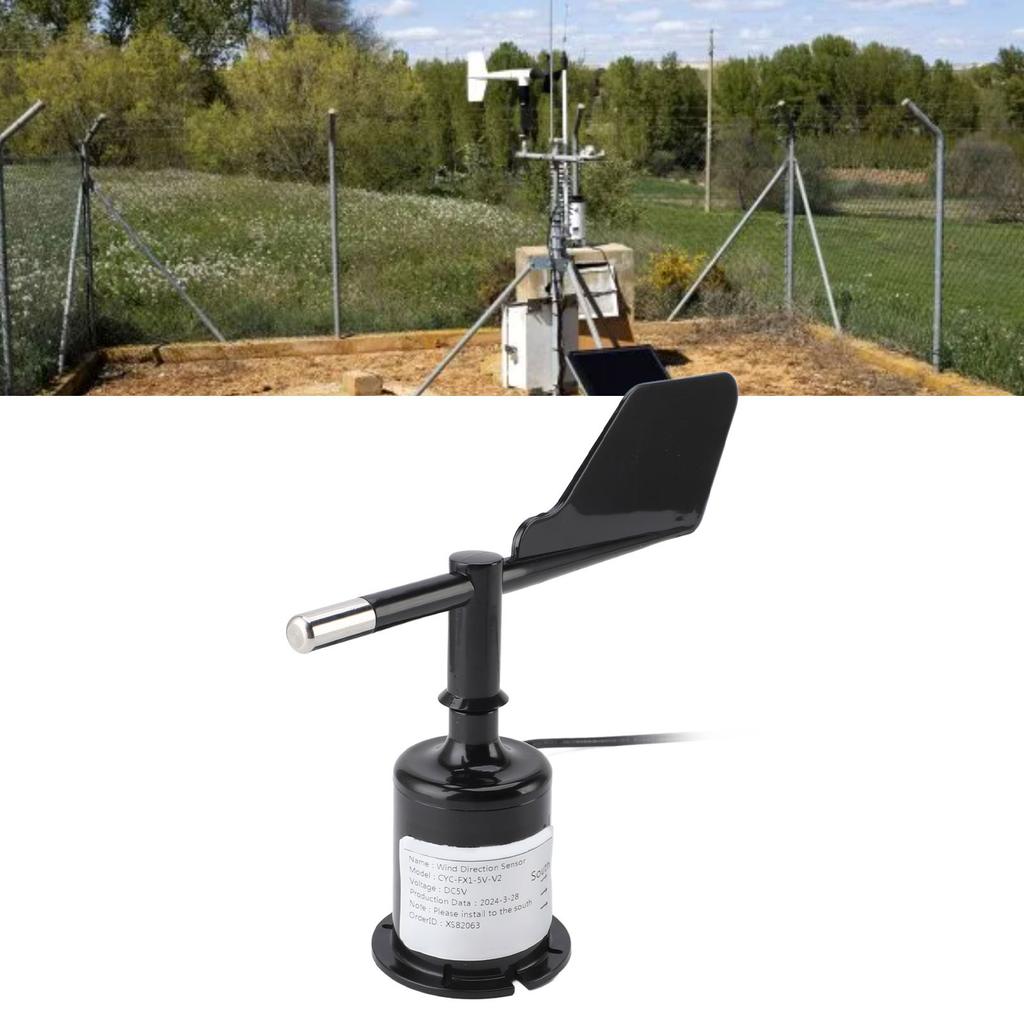

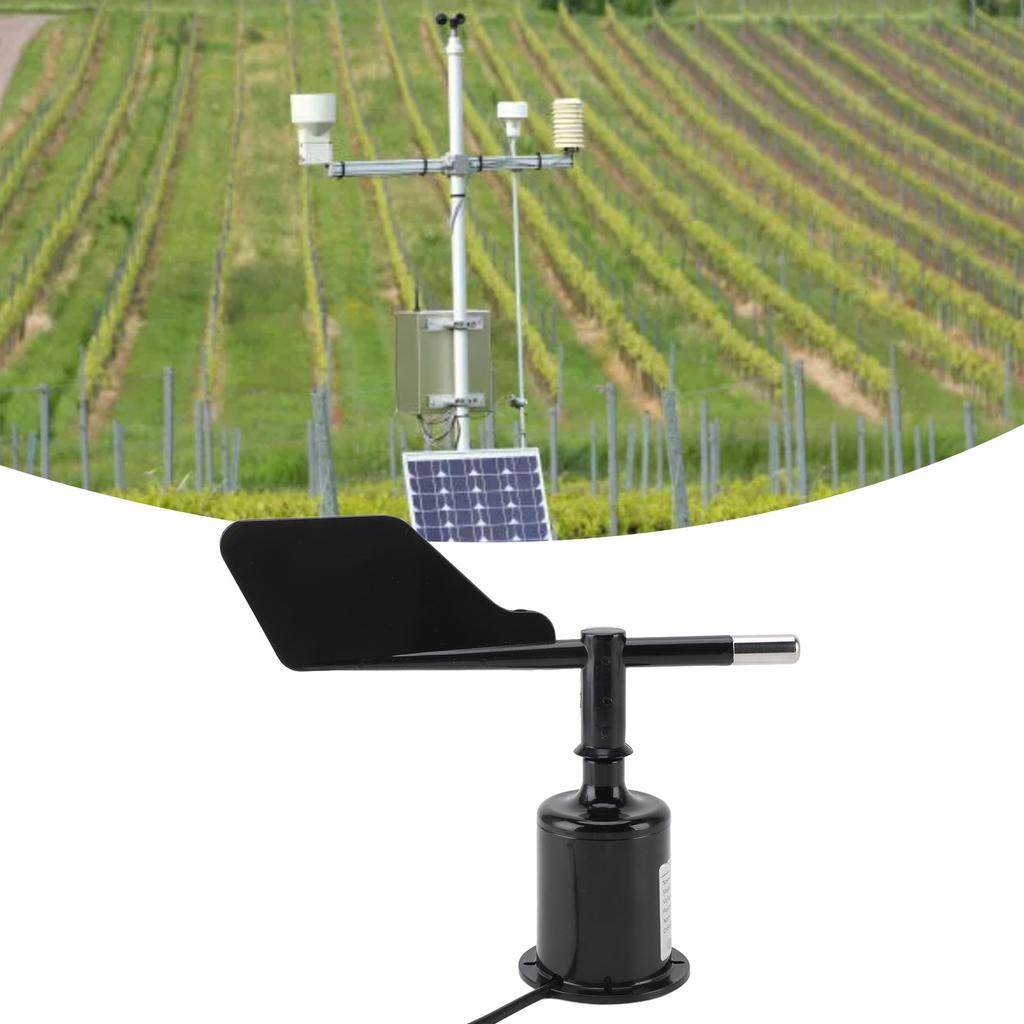

Application: for garden, greenhouse, environmental protecting, meteorological station, ship, dock, aquaculture, advertising barrier, weather, marine, environment, airport, port, laboratory, agriculture and traffic environment wind direction measurement
Installation Aperture: 3.2mmCelsius0.13in

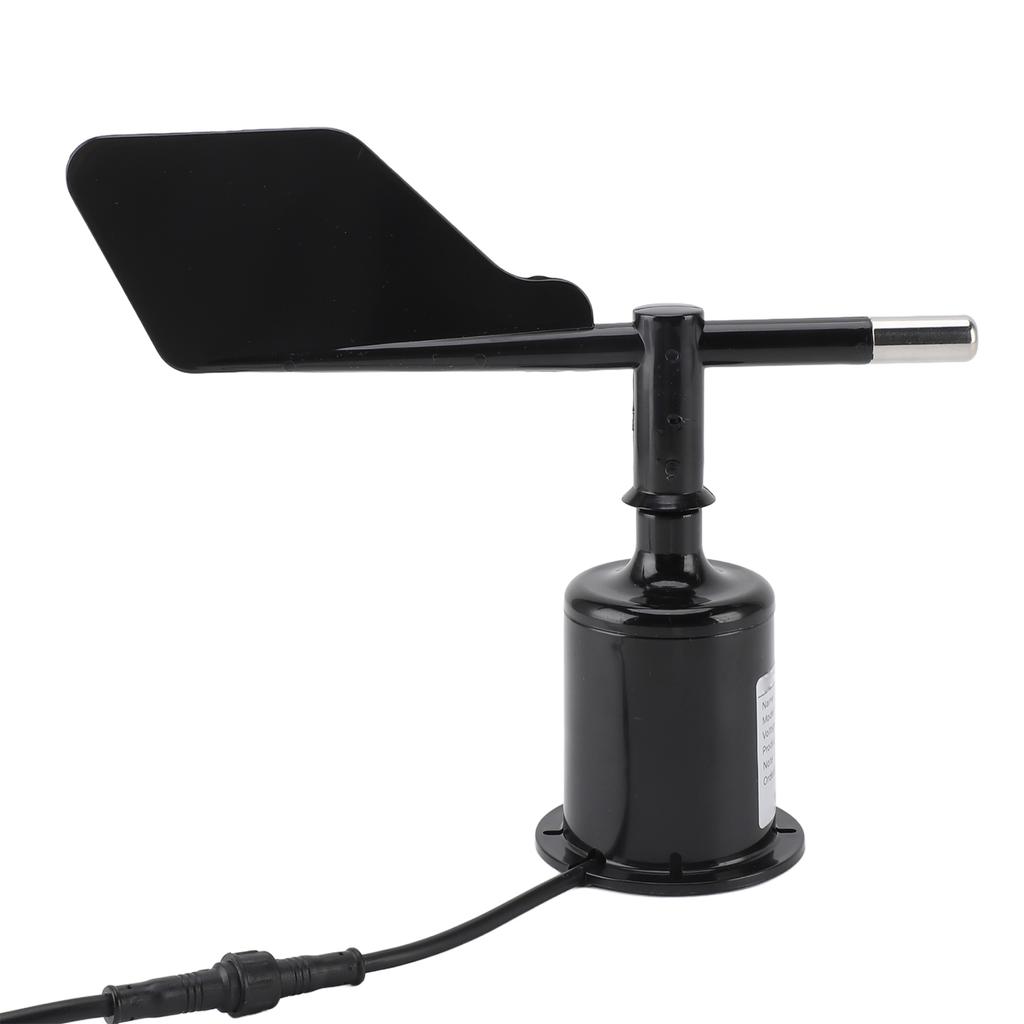

Mating Plug Diameter: 15mmCelsius0.59in (recommend reserving 25mm for wiring, wire up fi t, then install and fix the sensor)
Calculation : 0 to 2.5V: F=VCelsius2.5x359
Note: F represents wind direction angle value, unit: degrees ; V represents sensor output voltage value, V

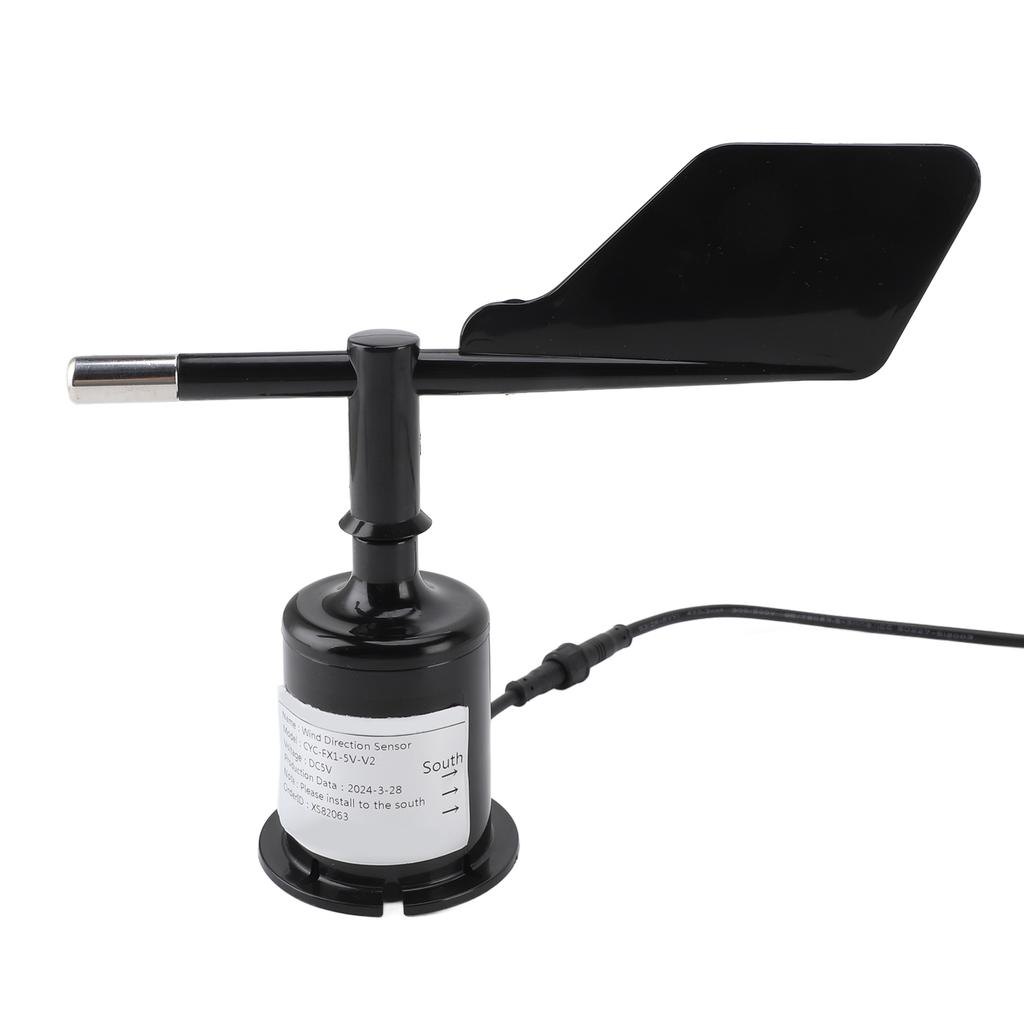

Wiring :
Red wire output signal (voltage): power positive
Black wire output signal (voltage): power negative
Yellow wire output signal (voltage): signal
Troubleshooting:
1. The impeller does not rotate smoothly and is severely delayed. Due to foreign objects or jamming inside the bearing caused by term use. Please return the sensor to the company for processing
2. Analog signal, the displayed value is incorrect when output. It may be due to wiring problems or communicating port failures ing to the inability to obtain correct data. Please check if the wiring is correct and secure, whether the communicating port is in use, and whether the communicating port settings are correct
