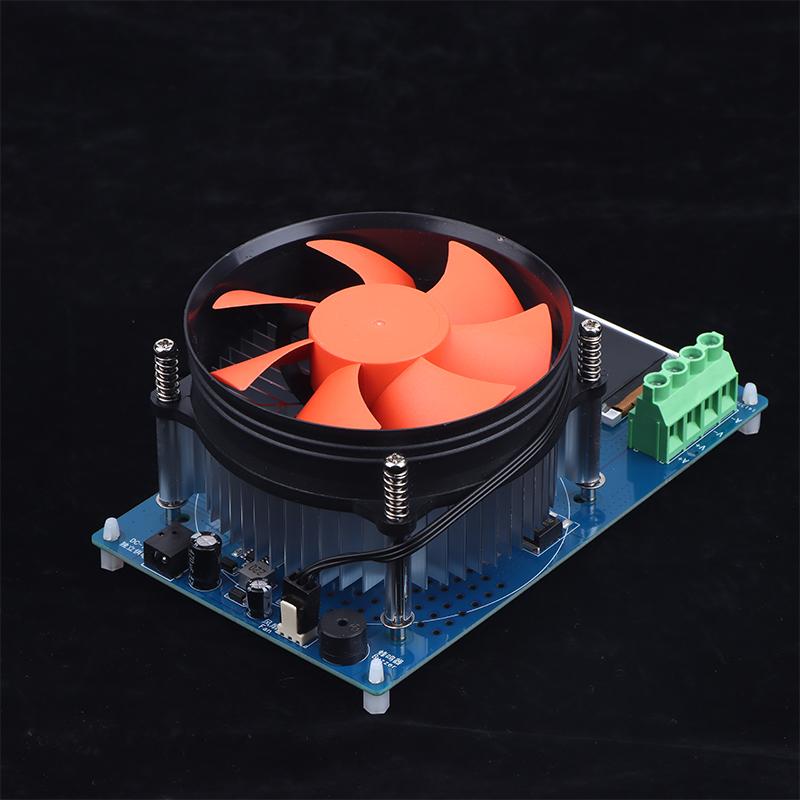

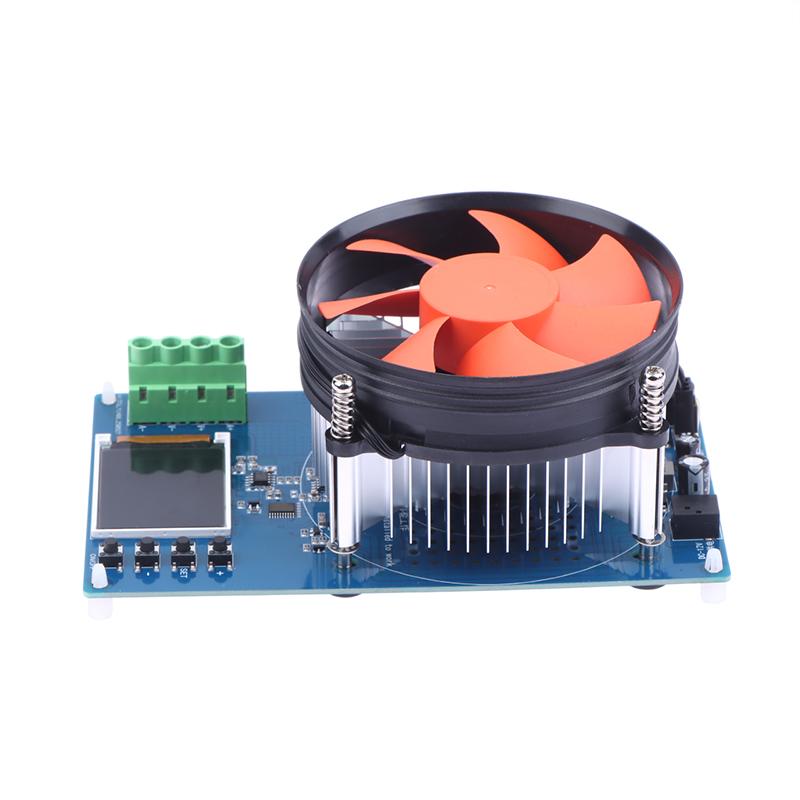

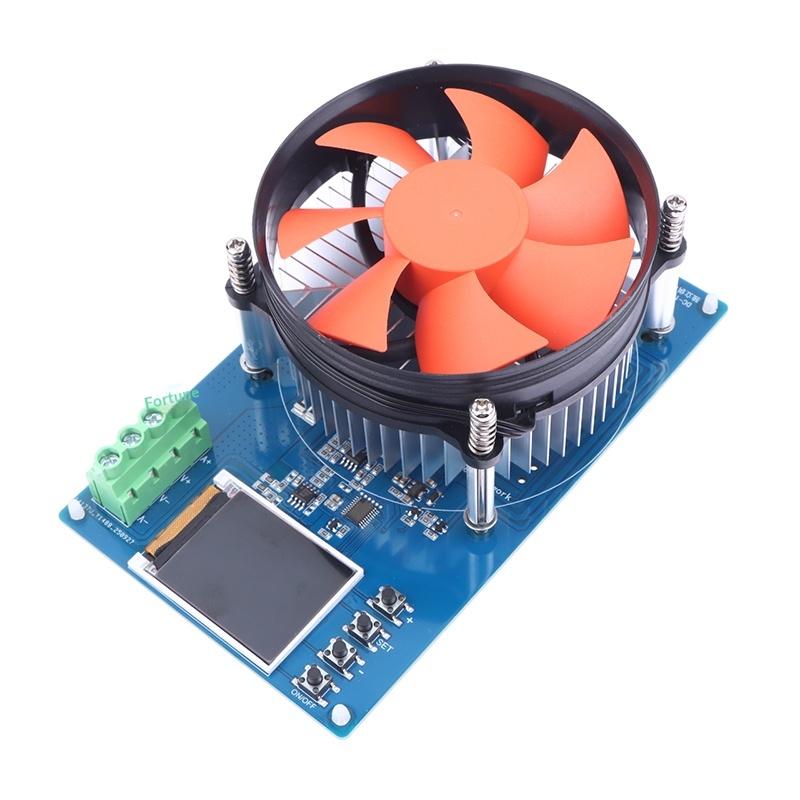

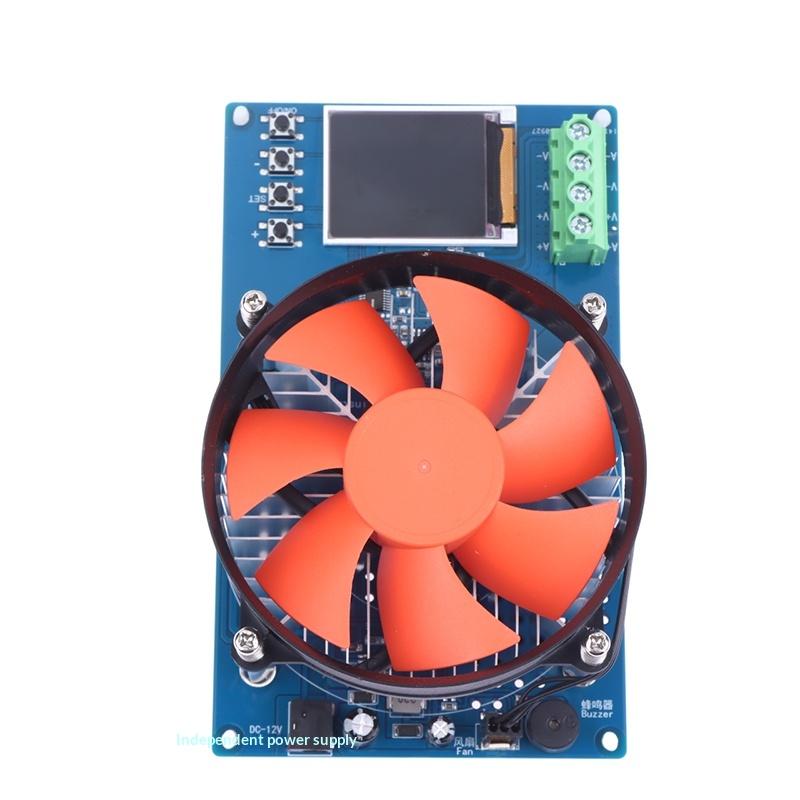

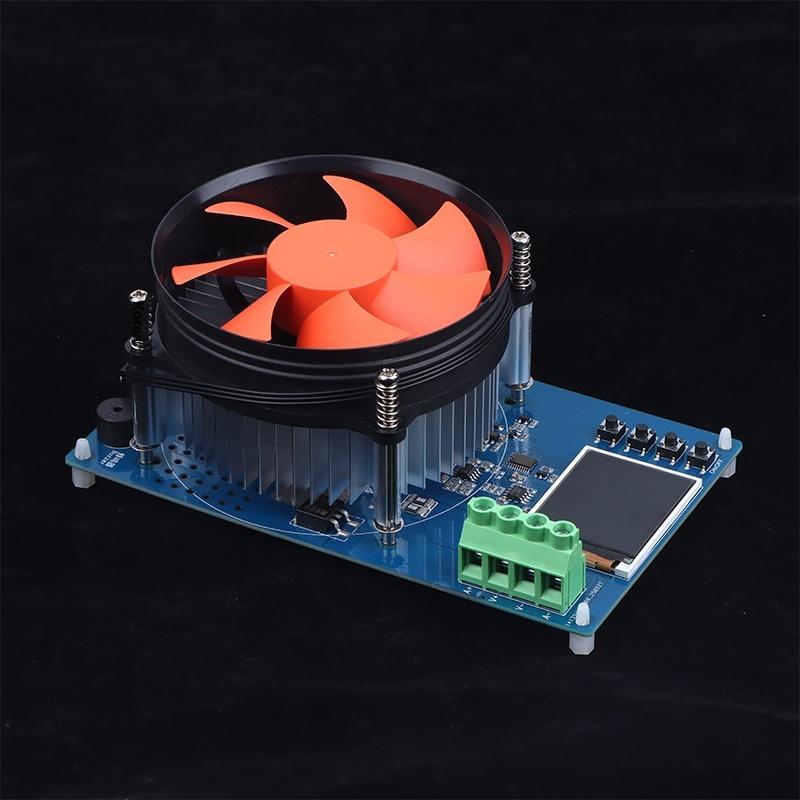

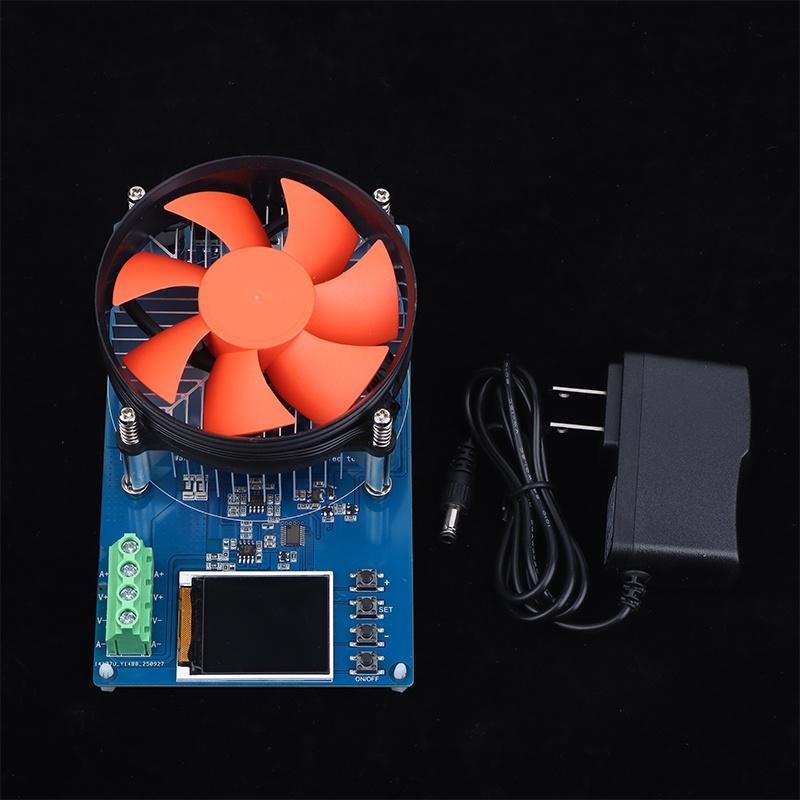

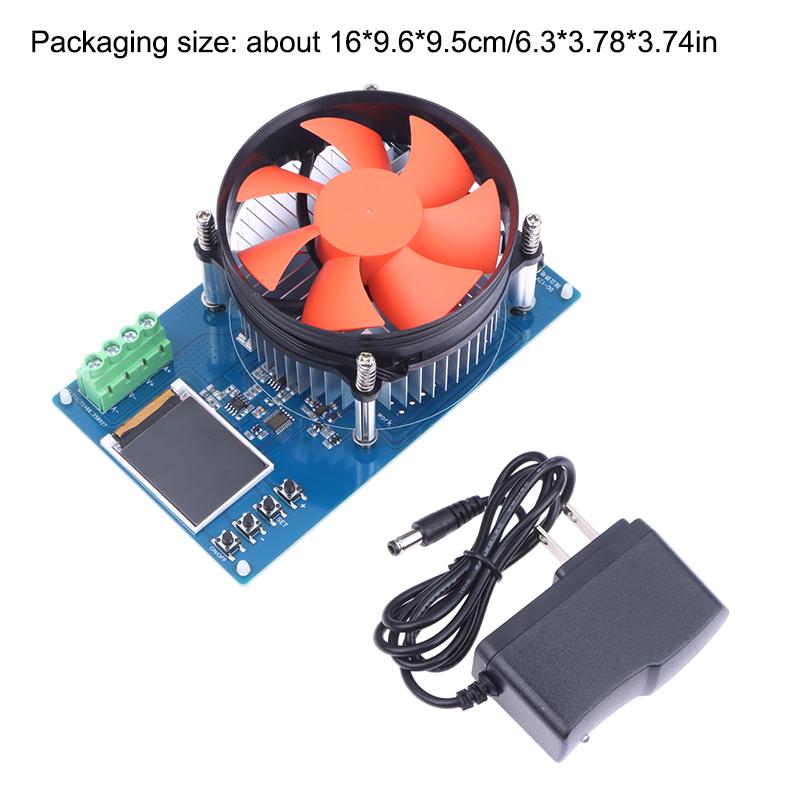

150W 20A Adjustable Constant Current Electronic Load 1.77inch TFT Color Display Adjustable Testing Module Digital Analyzer

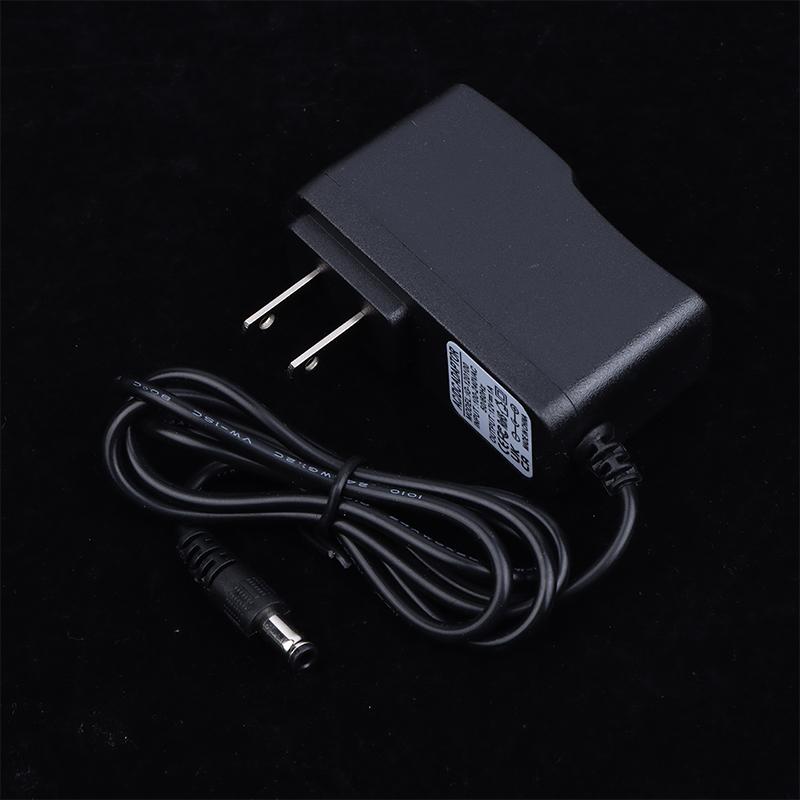

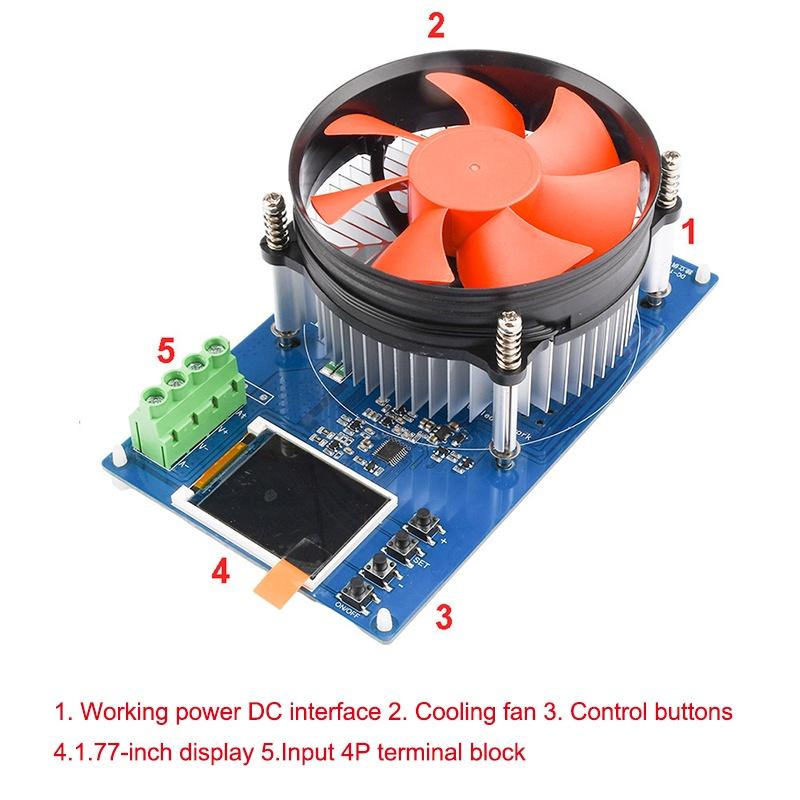

Features: This product supports 0~150V, 0~20A within the maximum 150W load Over-voltage, over-current, over-power, over-temperature protection and reverse connection protection below 100V Support timing shutdown and specified voltage shutdown Four-wire wiring system for more accurate capacity measurement Active heat dissipation with load current above 3A or core temperature ≥40℃ to start the fan Specifications: Load voltage-U: DC0V~150V Load current-I: 0~20A Load power-W:U×I≤150W(max) To avoid pulse damage, the total load power is capped at 60W when the load voltage is ≥120V Capacity metering range:0~999999mAh Energy measurement range:0~999999mWh Applicable power supply: DC12V 1A Wiring mode: four-wire system A+ V+ V- A- Display mode: 1.77 inch TFT color screen Control operation: 4 button control Heat dissipation mode: active heat dissipation load current 3A or more or core temperature Greater than or equal to 40 Celsius to start the fan Online view: not supported Over-voltage protection: support Overcurrent protection: support Over power protection: Support Over-temperature protection: the core temperature exceeds 80 Celsius to stop the load (non-adjustable) Time limit discharge: Support Power failure save: Support Restore Factory Settings: ①Device power off ②Press and hold the "SET" key and do not release ③Equipment power on, wait for the display normal display and then release the "SET" key, the operation is complete Package Included: 1set Notes: Due to manual measurement , there may be 5mm deviation exist,hope you can understand. There are slight difference between the picture and the item caused by light brightness,hope you can understand. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
