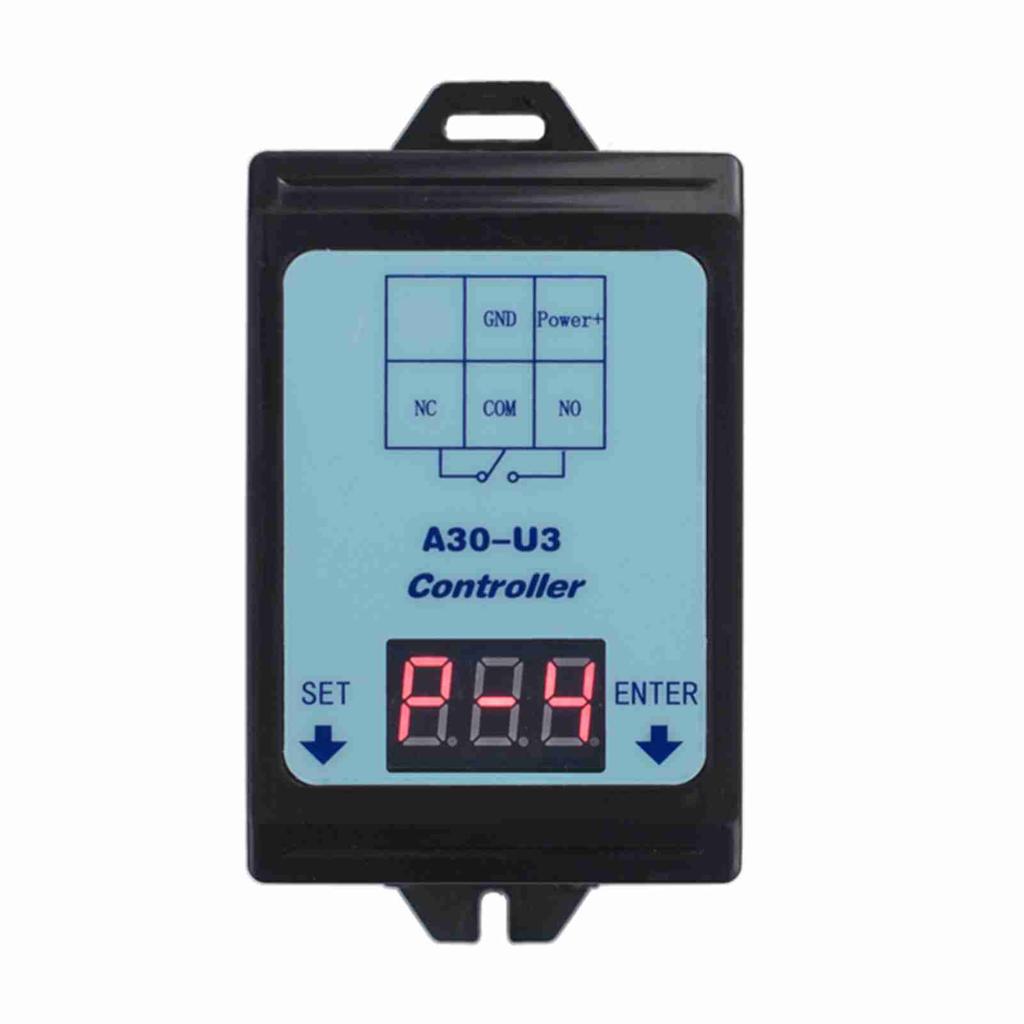

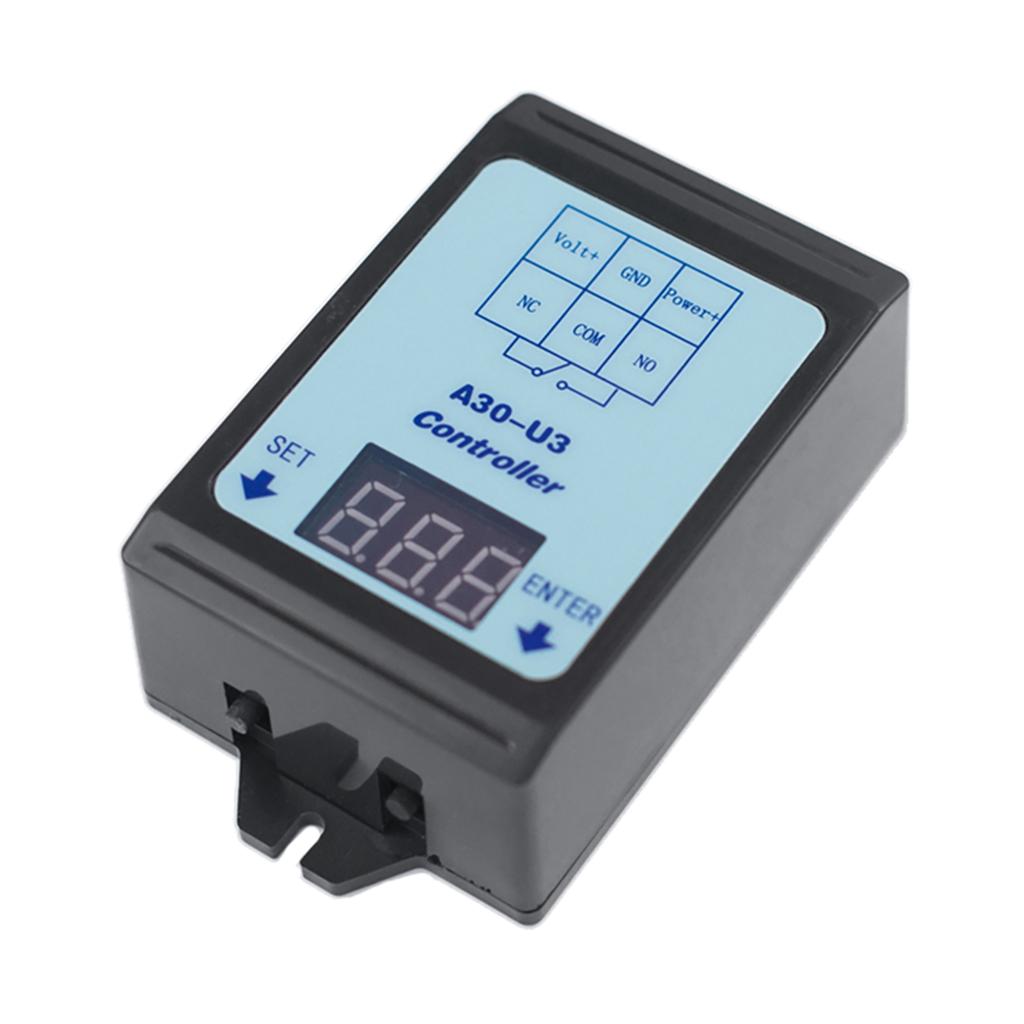

6-80V Voltage Monitoring Relay Time Delay Relay Charging Discharge Controller Module Undervoltage Overvoltage Relay with 4 Operating Mod

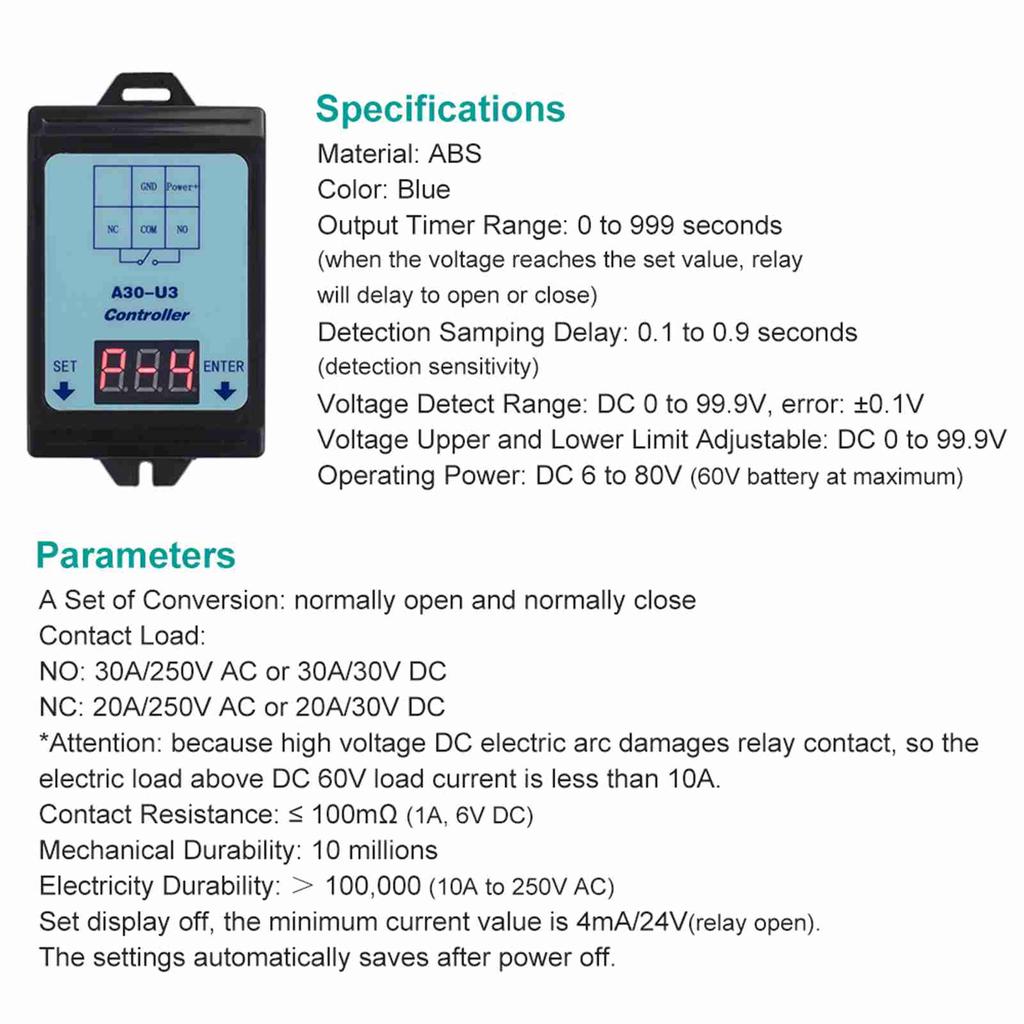

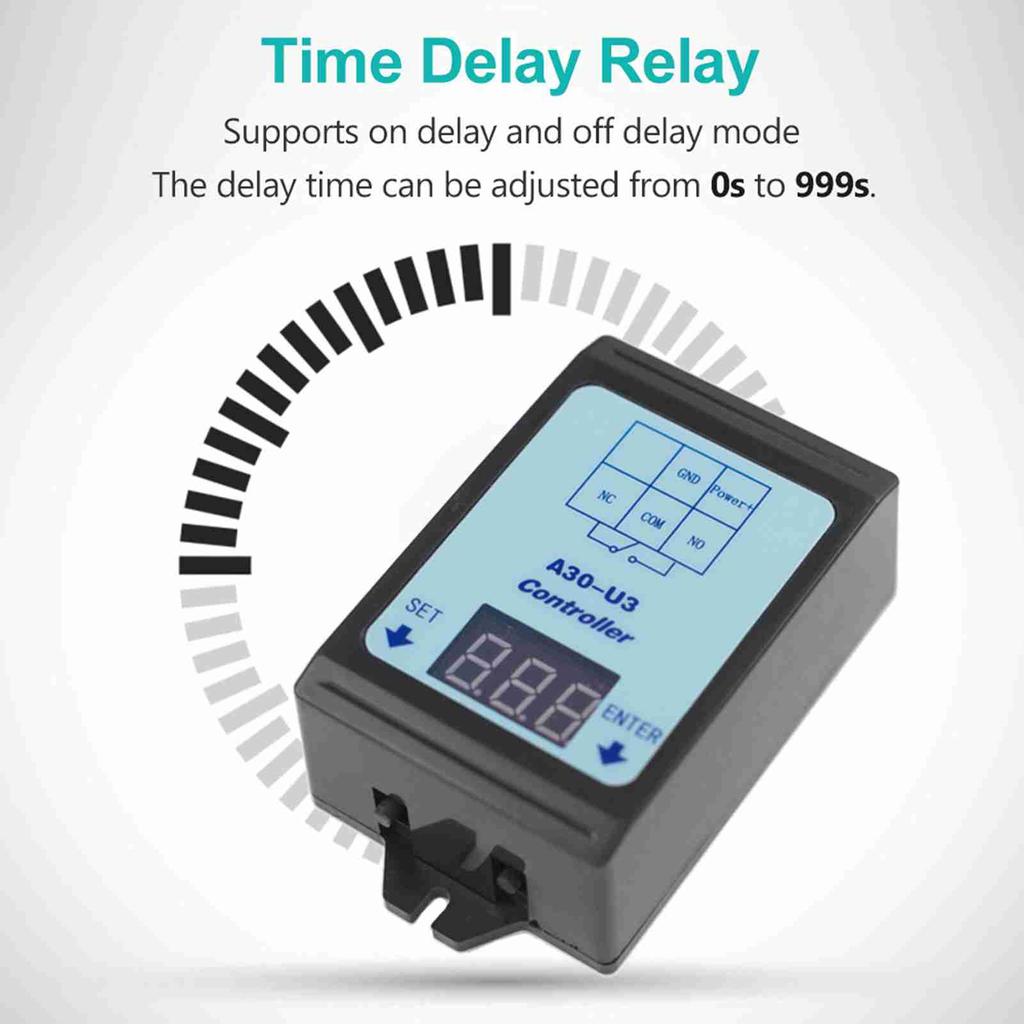

The operating power supply is 6 to 80V, and the contact load is 30A, 250V AC, or 30V . Quality voltage monitoring relays offer excellent quality, time, and higher efficiency. Supports on delay and off delay mode, the delay time can be adjusted from 0s to s. Provides 4 operating modes: P-1, relay close delay time and display off setting; P-2, voltage control timer A (delay on); P-3, voltage control timer B (delay off); and P-4, voltage range control. Parameters: A Set of Conversion: normally open and normally close Contact Load:  NO: 30A/250V AC or 30A/30V NC: 20A/250V AC or 20A/30V *Attention: Because high-voltage arcing can damage relay contacts, load current 50V should be less than 10A. Contact Resistance: Less than and equal to 100mohm (1A, 6V ) Mechanical Durability: 10 millions Electricity Durability: ＞ 100,000 (10A to 250V AC) Set display off, the minimum current value is 4mA/24V(relay open). The settings automatically saves after power off. Specifications: Material: ABS Color: Blue Output Timer Range: 0 to seconds (when the voltage rches the set value, relay will delay to open or close) Detection Samping Delay: 0.1 to 0.9 seconds (detection sensitivity) Voltage Detect Range: 0 to 99.9V, error: +-0.1V Voltage Upper and Lower Limit : 0 to 99.9V Operating Power: 6 to 80V (60V battery at maximum) Item Size: 9.4*5.2*3cm / 3.7*2.04*1.18in
