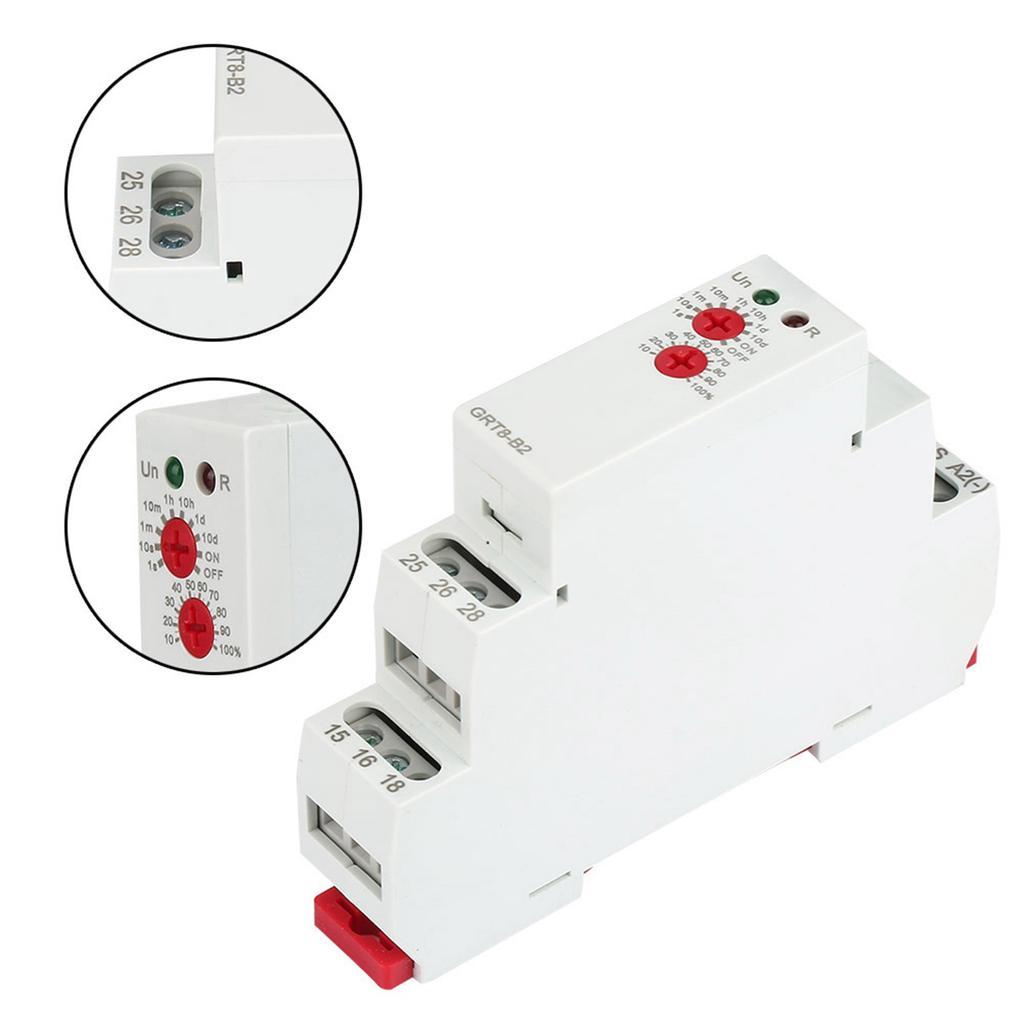

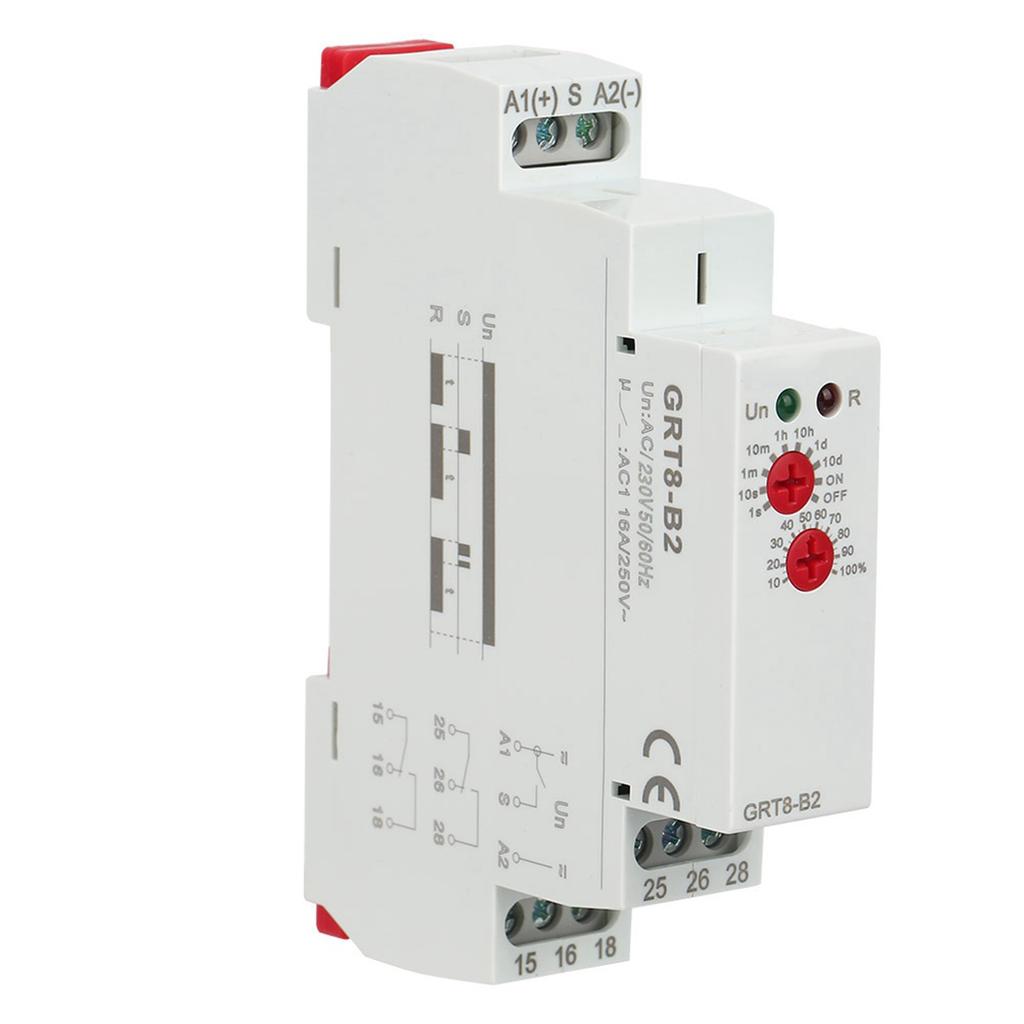

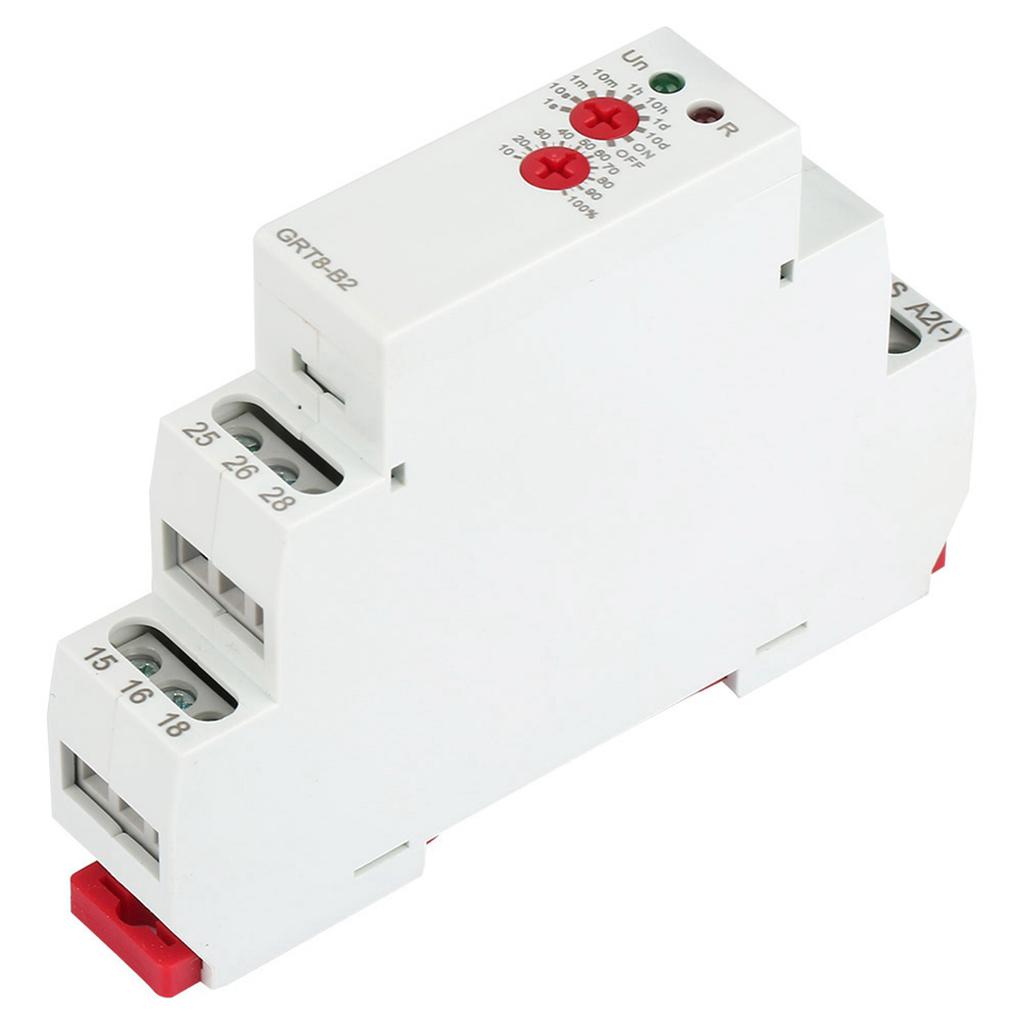

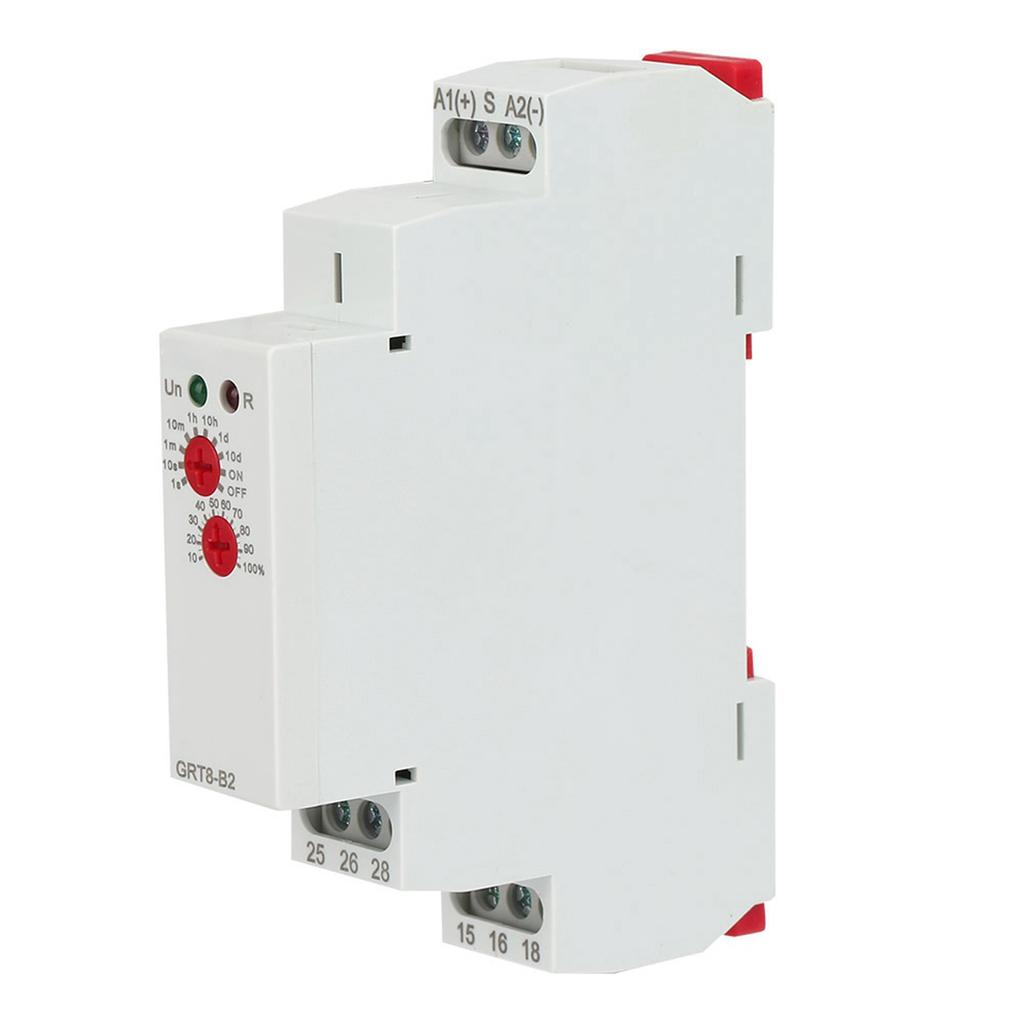

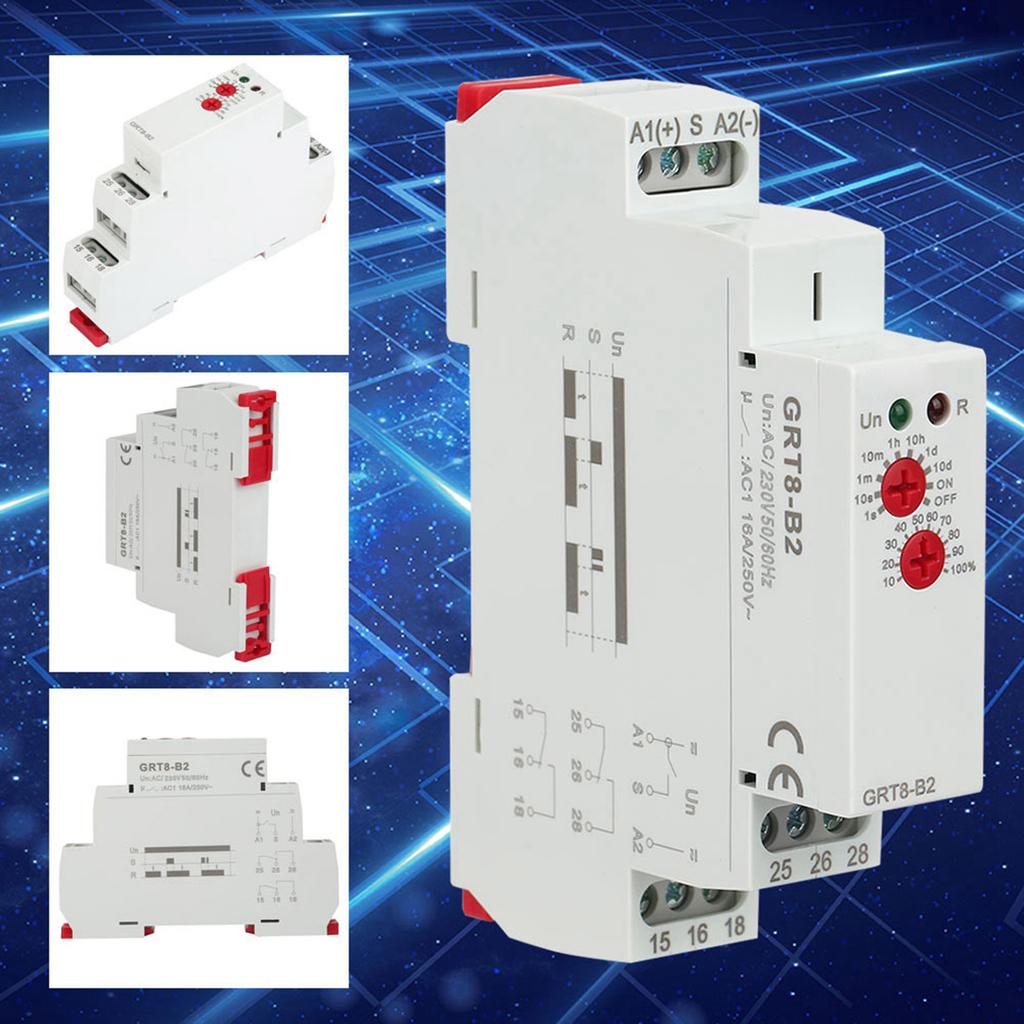

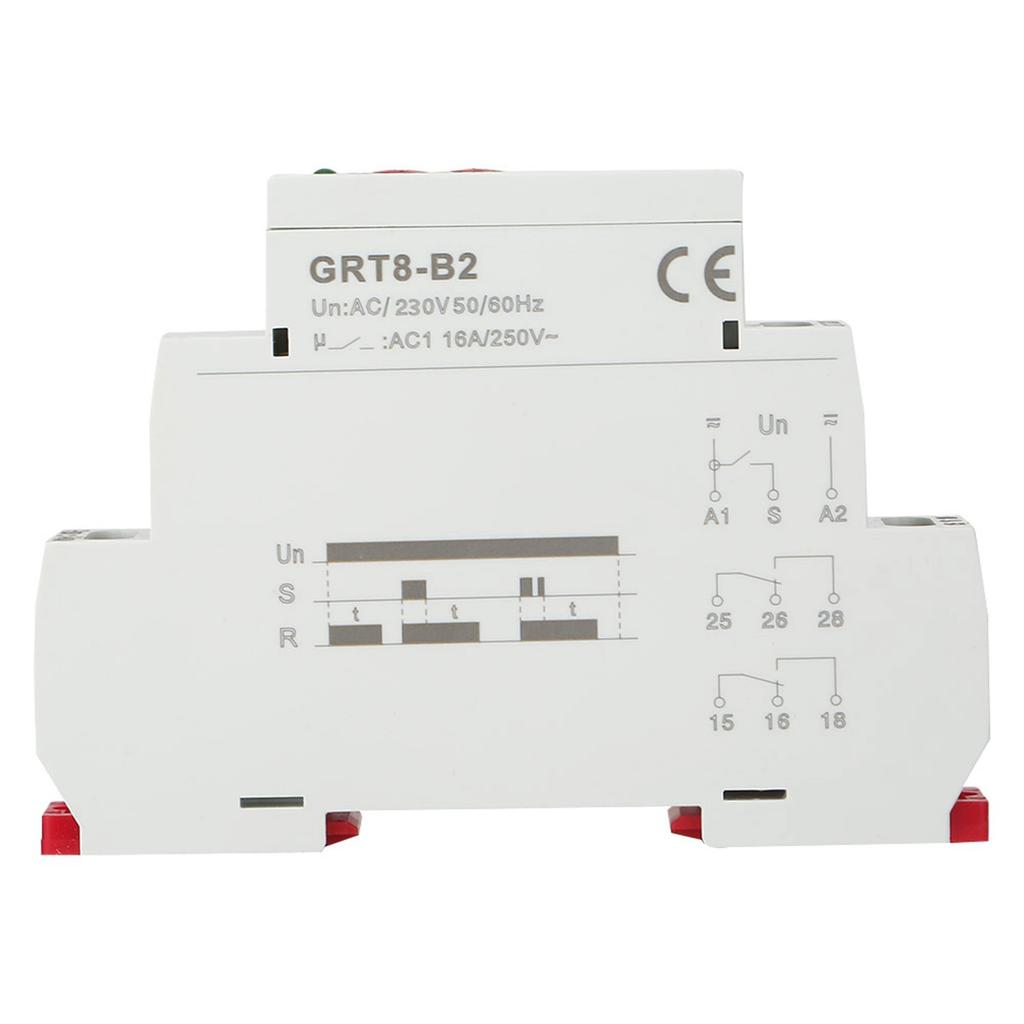

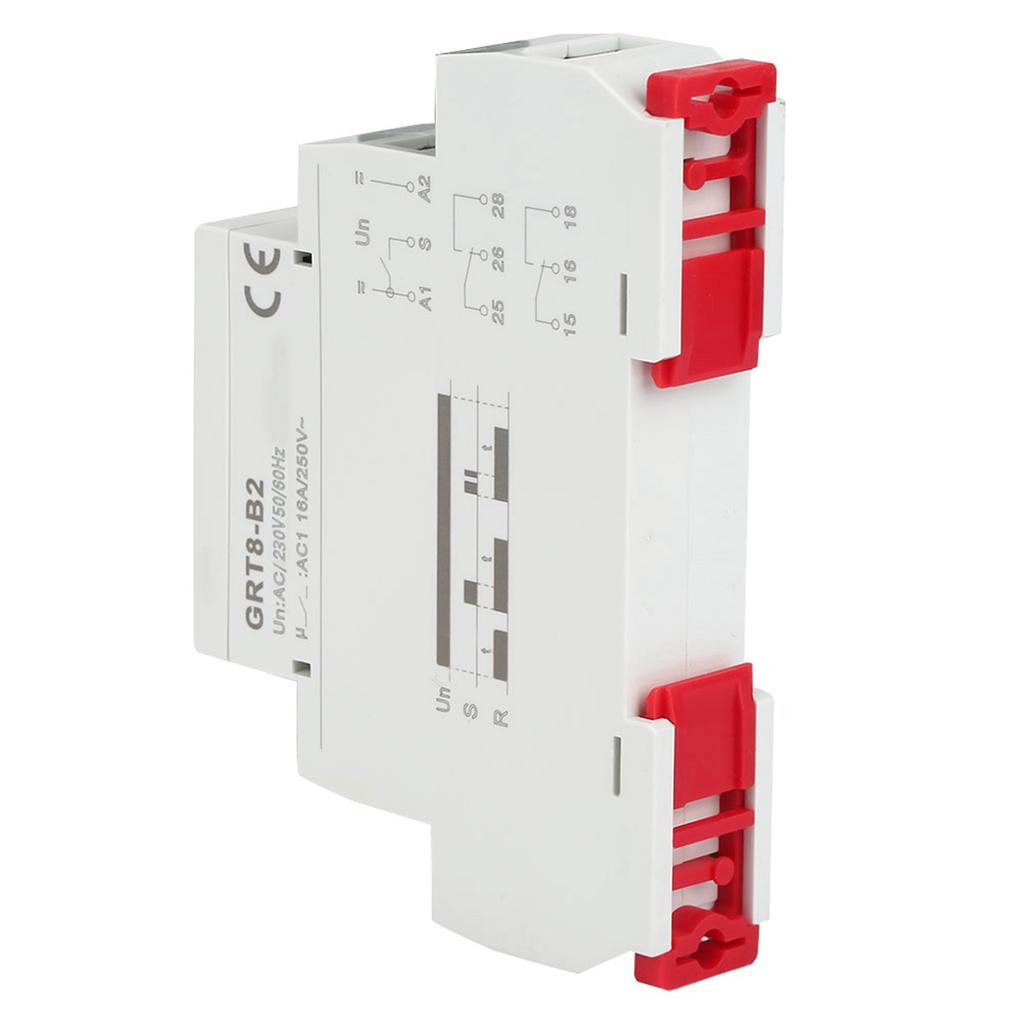

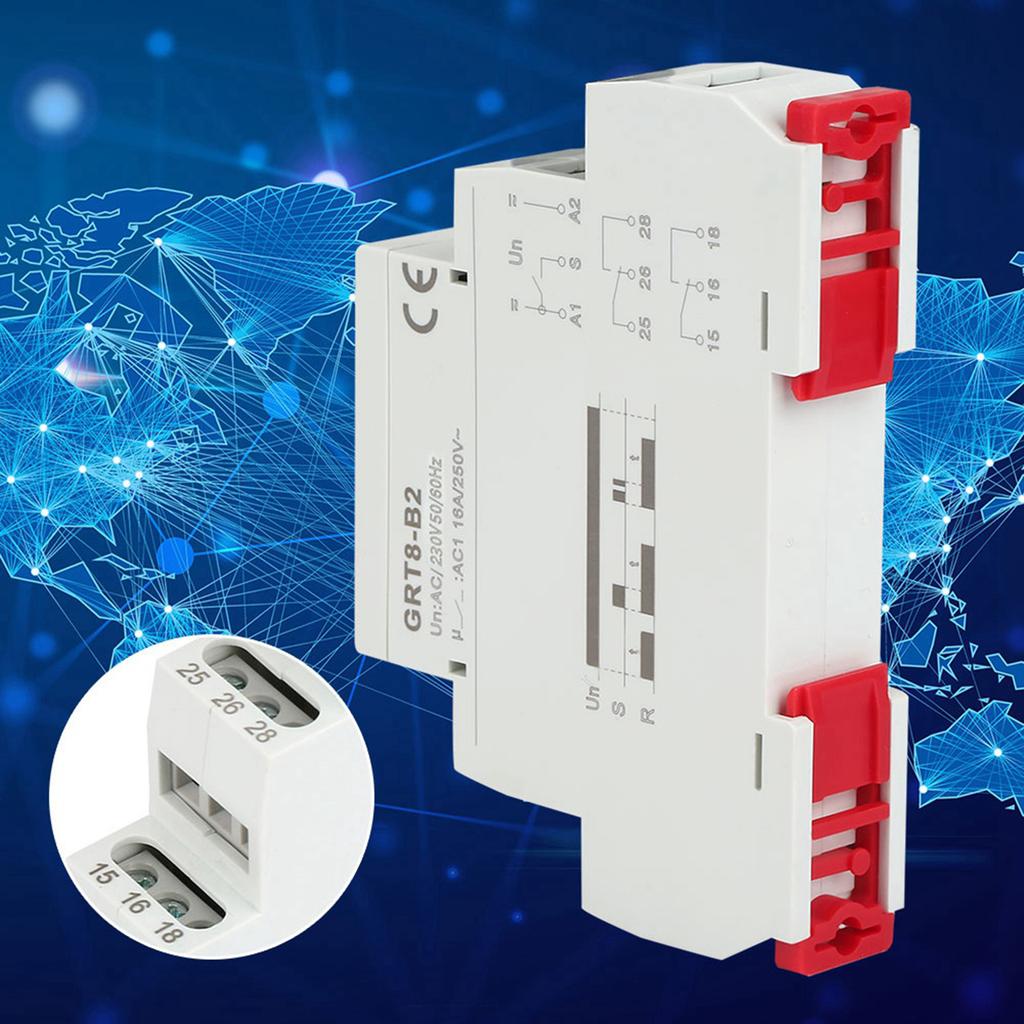

GRT8-B2 Single Function Control Din Rail Time Relay AC230

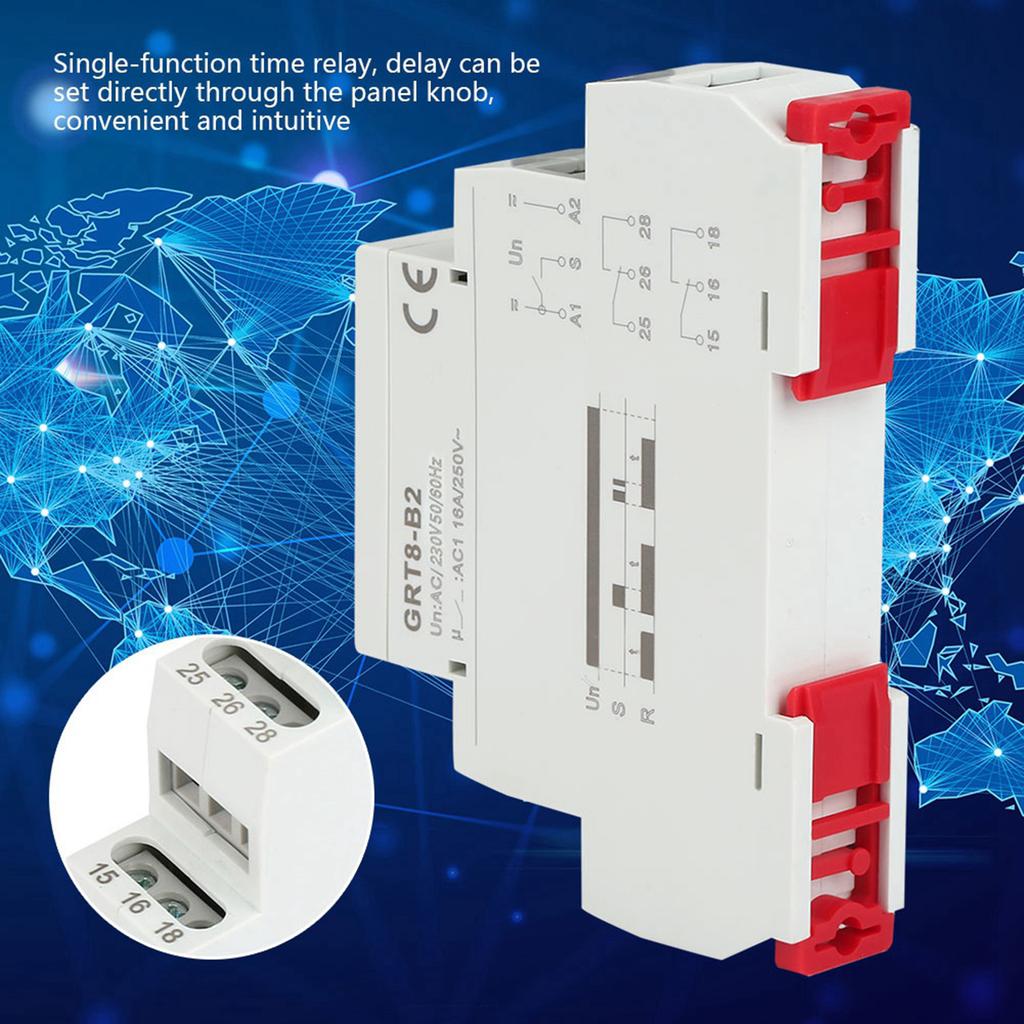

Single-function time relay, delay can be set directly through the panel knob, convenient and intuitive 2 function modes are optional: power-on delay and delay disconnection

-wide delay range, 0.1 seconds-10 days can be set Features: 1. Single-function time relay, delay can be set directly through the panel knob, convenient and intuitive 2. 2 function modes are optional: power-on delay and delay disconnection 3. -wide delay range, 0.1 seconds-10 days can be set 4. The working status of the relay is indicated by the LED indicator. 5. Apply to delay on or off the line, such as controlling the power-on time of the heating , the working time of the pump and the delay of the fan

Specification: Condition: 100% Brand New Model: GRT8-B2 Power Terminal: A1-A2 Rated Control Power Supply Voltage: ACCelsiusDC 12-240V (50-60Hz) Power Consumption: AC 0.7-3WCelsiusDC 0.5-1.7W Power Supply Allowable Range: -15%; +10% Power Indicator: Green LED Delay Range: 0.1 seconds-10 days, normally open, normally closed Setting : Knob Setting Accuracy: 10% Repeatability Accuracy: 0.2% Temperature Fluctuation Error: 0.05% celsius , at = 2 celsius Output: 2 Sets of Conversion Contacts 16ACelsiusAC250VAC

mum Switching Power: 500mW Output Relay Indication: Red LED Mechanical Life: 10000000 Electrical Life (Resistive Load): 1000000 Working Environment Temperature: -20 celsius -55 celsius Storage and Transportation Environment Temperature: -35 celsius -75 celsius Installation : 35mm Rail Installation

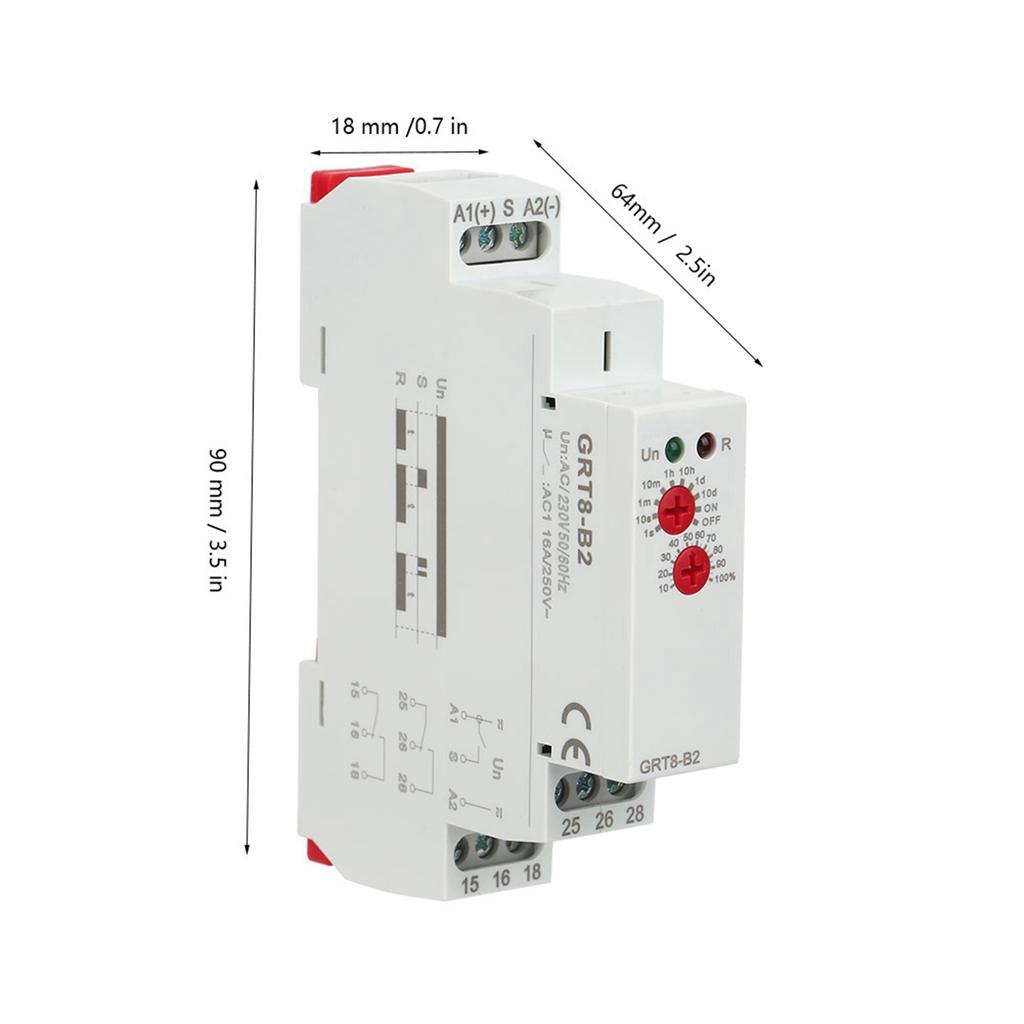

: IP20 Installation Altitude: 2000 Meters Pollution Degree: 2 Wiring Capacity: 1x2.5mm² or 2x 1.5mm² Optional : AC230, ACCelsiusDC 12V-240V Weight: Approx. 95g Celsius 3.4oz Size: Approx. 90 * 18 * 64mm Celsius 3.5 * 0.7 * 2.5in

Package List: 1 * Time Relay
