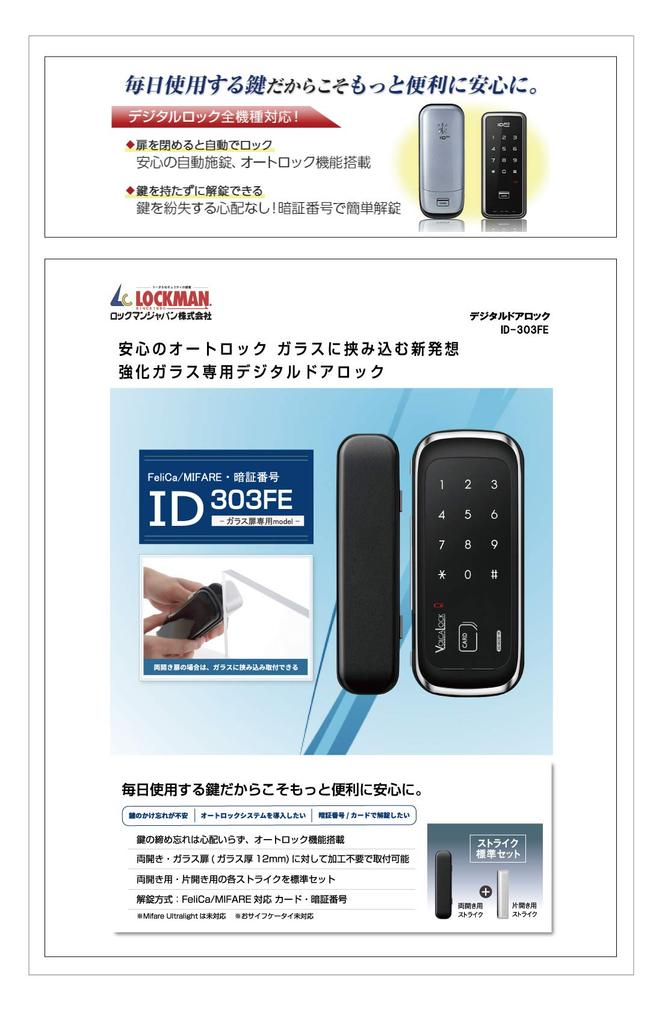

Lockman Japan Digital Door Lock for Tempered Glass Doors (Installation Video Available) - Card/PIN Code Type - ID-303FE

Product Introduction

Installation and operation instructions are available on our official video website.

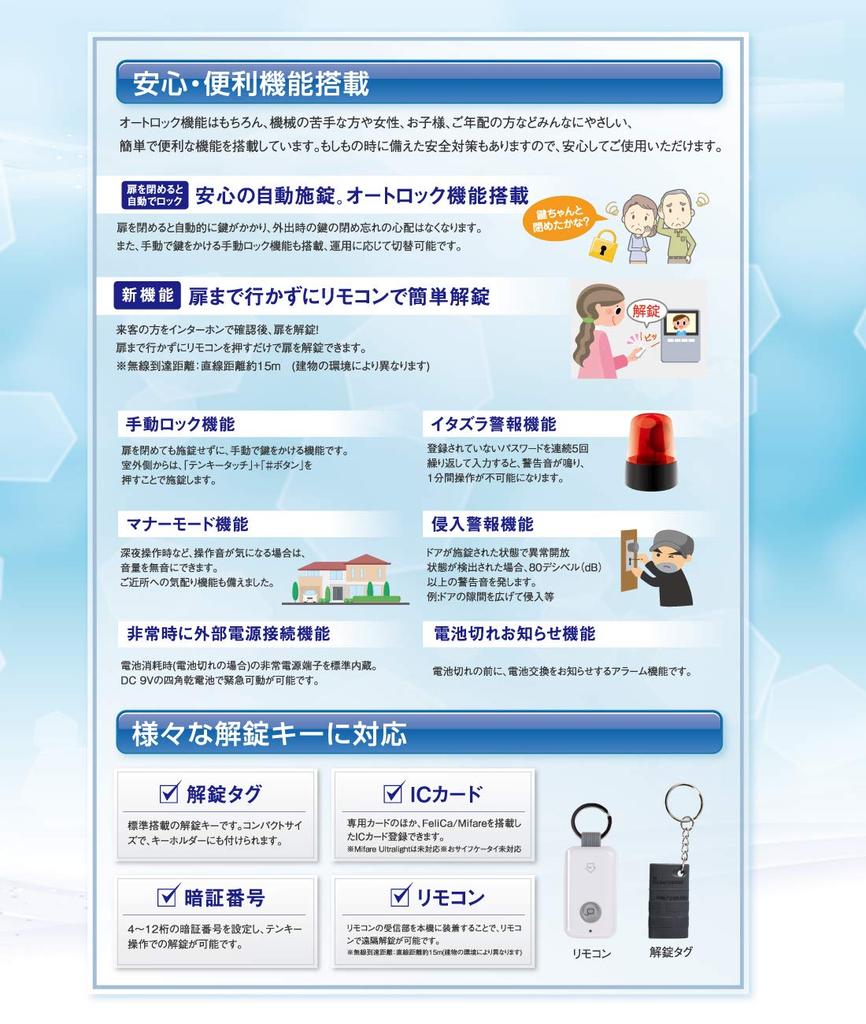

◯Product Features ・Easy installation without processing required for tempered glass doors (12mm glass thickness) ・For double doors, installation is possible simply by sandwiching it between the glass. ・Automatic lock function when the door is closed. ・Manual lock function available for use in stores, etc., switchable with the auto-lock function. ・Standard set includes strikes for double doors and single doors; no need to purchase additional strikes. ・New "remote control unlocking function" included; easy unlocking by simply pressing the remote control without going to the door (optional). ・Equipped with various safety and convenience functions such as silent mode and battery low notification function.

*ID-303FE is a model without a remote control. *ID-303FE-R is a model with one remote control + receiver as standard. *This is the successor model to ID-302.

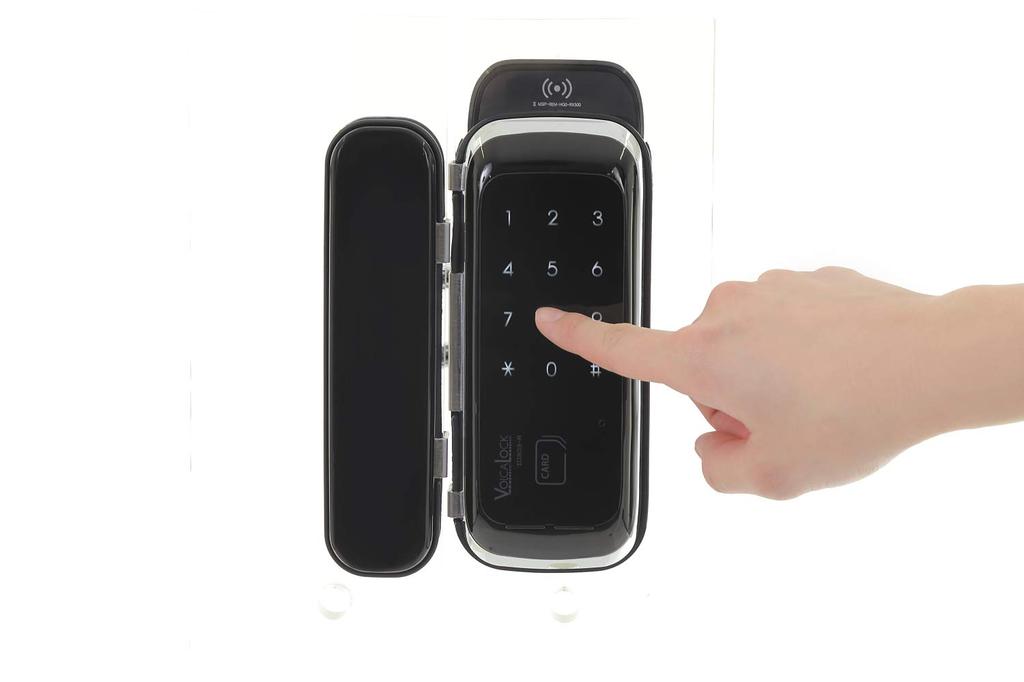

◯Unlocking Method [Card] FeliCa/MIFARE compatible, up to 100 cards [PIN] 4-12 digits, up to 4 types [Remote Control] Up to 5 units *Optional *Mifare Ultralight not supported *Mobile payment not supported *Wireless range: Approximately 15m in a straight line (may vary depending on building environment)

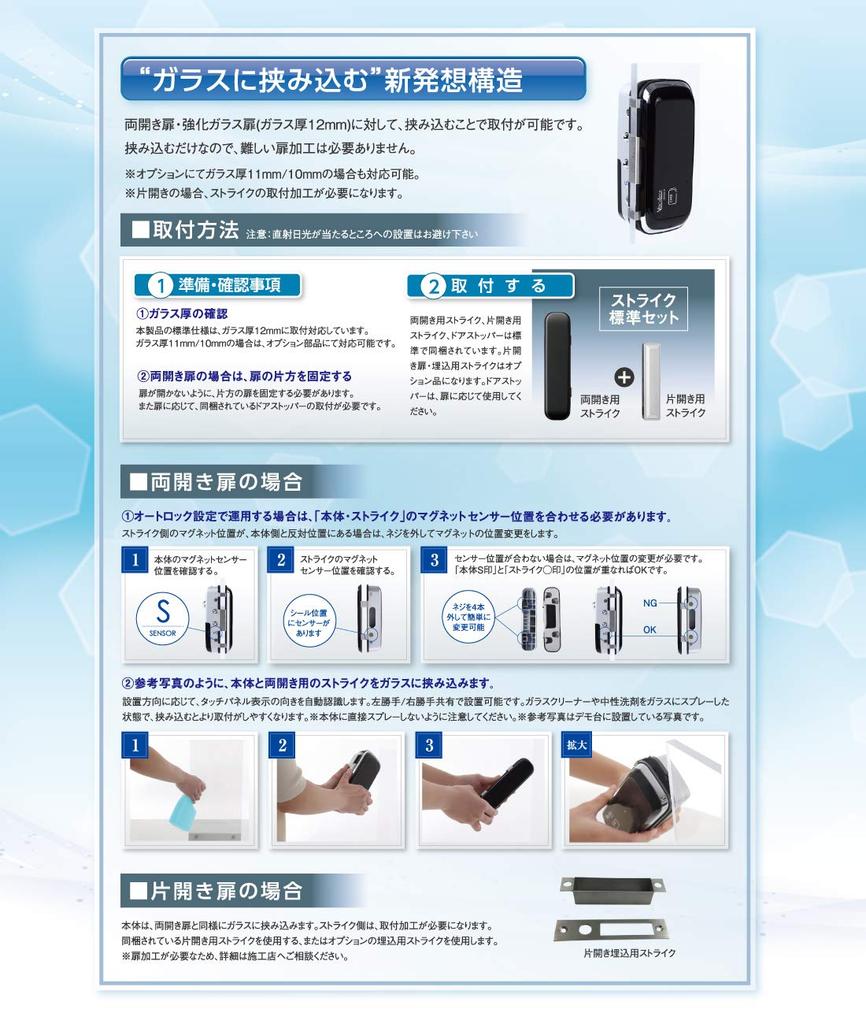

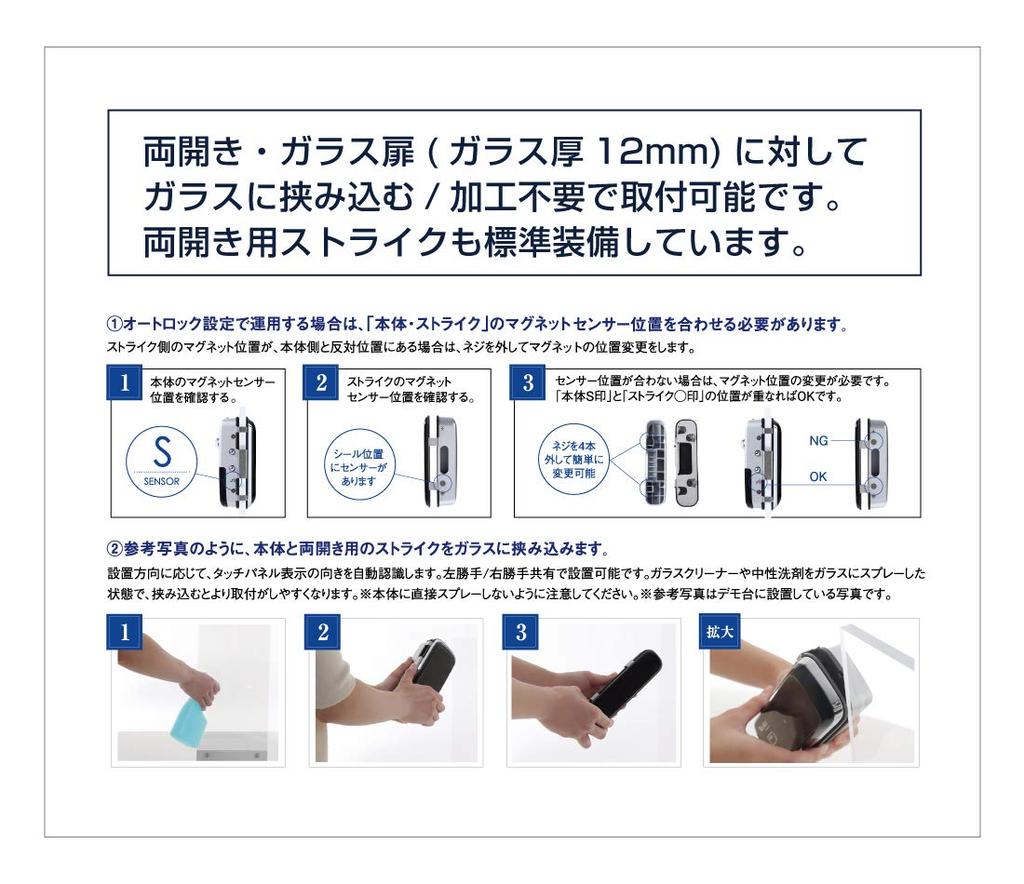

◯Installation Conditions [General Fireproof Door] Tempered glass door, 12mm glass thickness *10/11mm glass thickness available with optional parts

[Installation Location] Indoor door (waterproof) *Avoid installation in direct sunlight

*For double doors, the door on the strike side must be fixed *For single doors, the strike plate needs to be modified *Please refer to the product catalog/specifications for detailed specifications

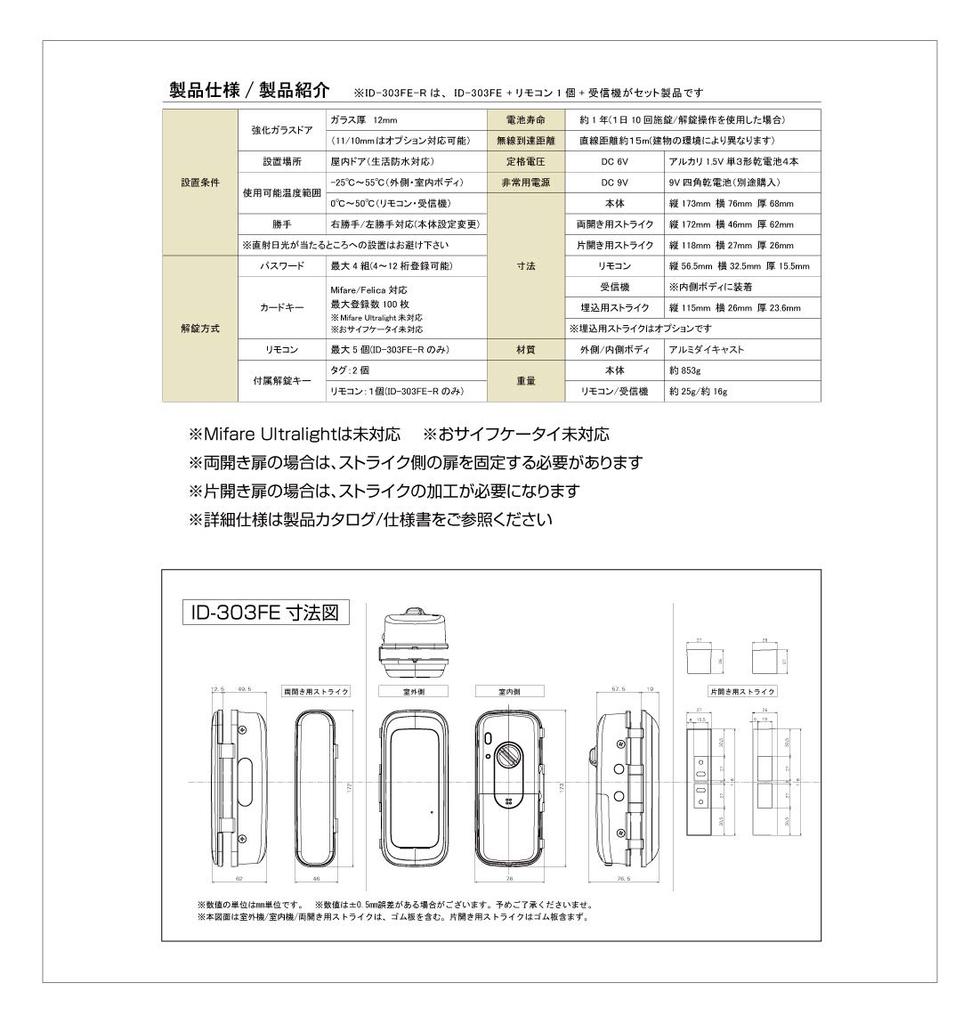

◯Size 74x173x69mm

Safety Warning

*Please be sure to check the glass thickness. *Standard specifications support 12mm tempered glass. *For single doors, the strike plate needs to be modified.

Automatic locking function when the door is closed Digital lock for glass doors only No modification required for clamp-on installation on double-leaf tempered glass doors (12mm glass thickness) For double-leaf tempered glass doors (12mm glass thickness), no modification is required, allowing for easy restoration to the original condition Unlocking method: PIN code/card (FeliCa/MIFARE)
