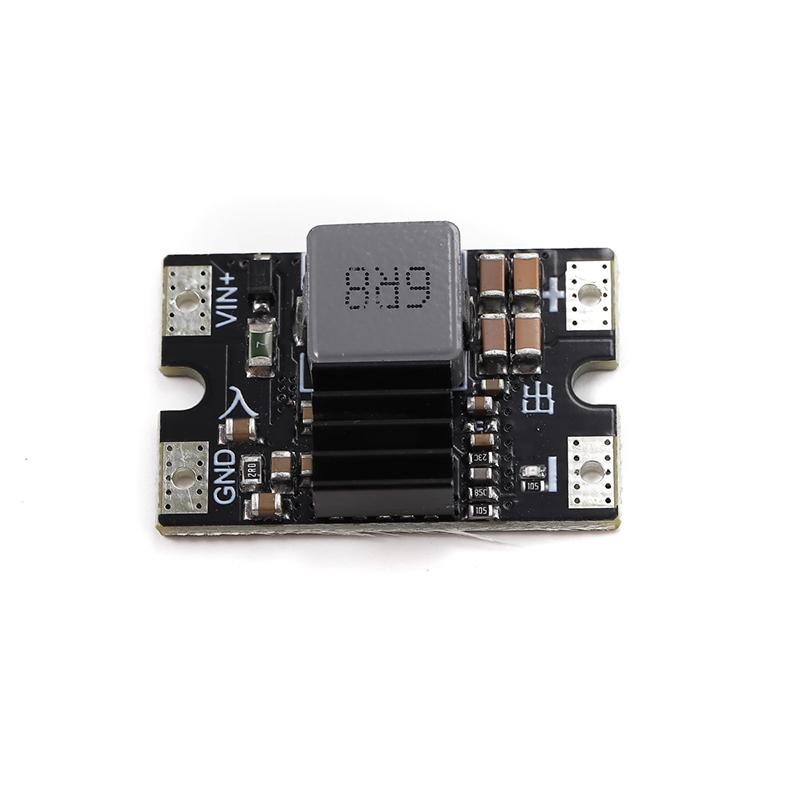

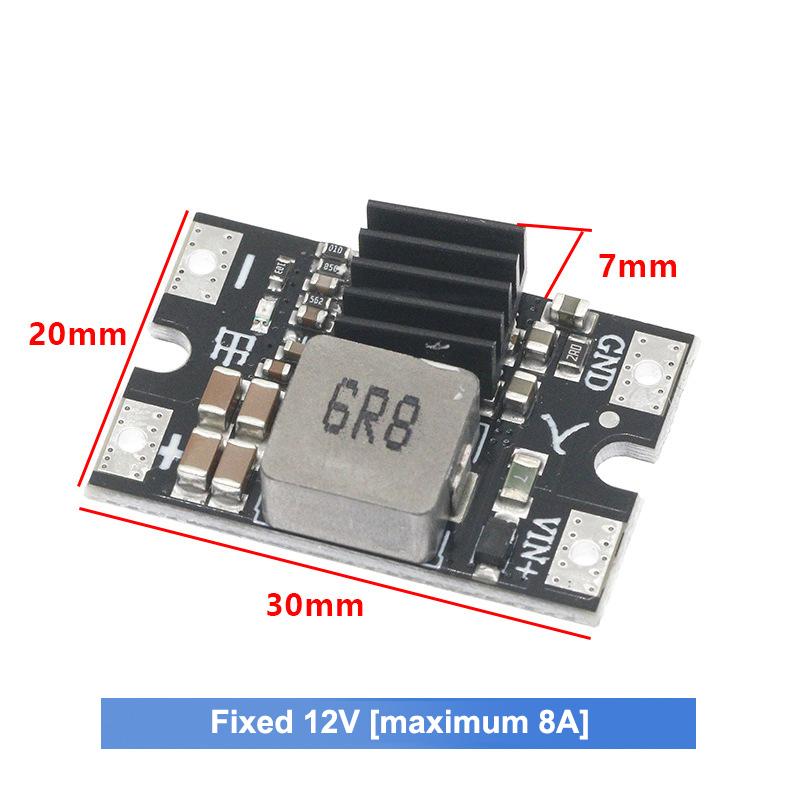

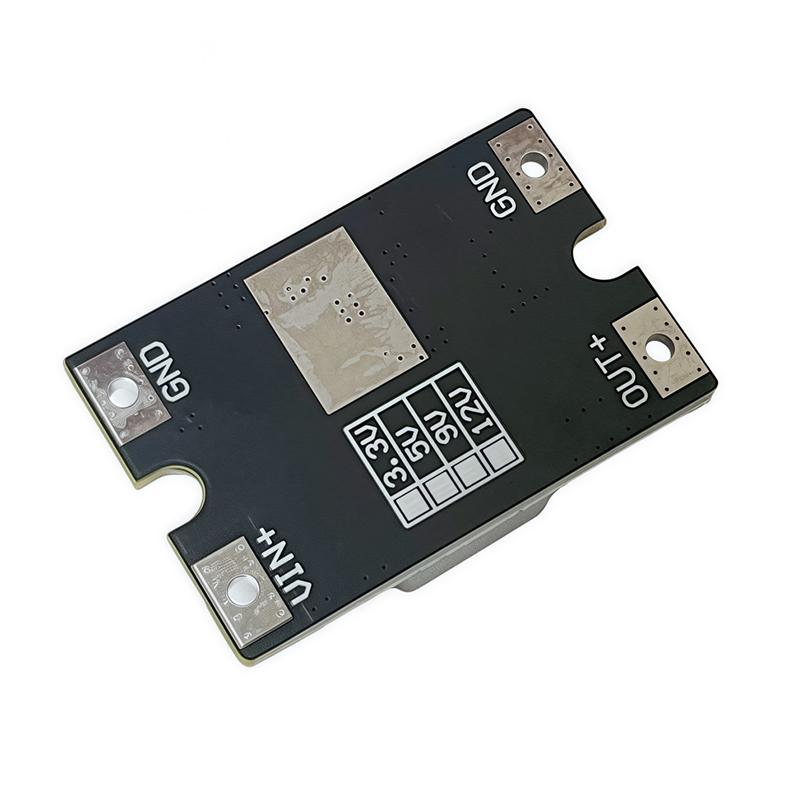

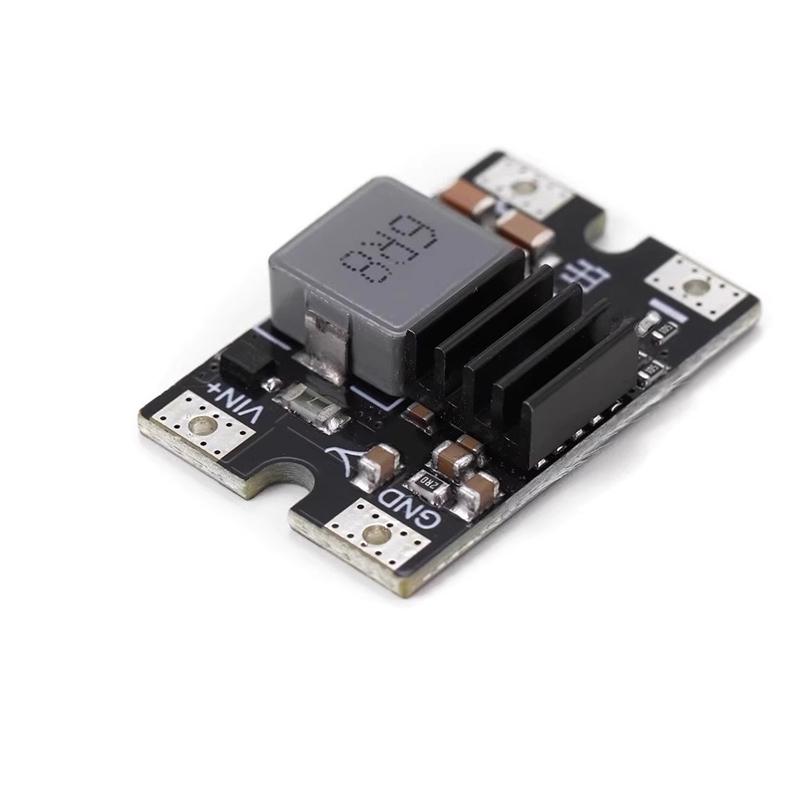

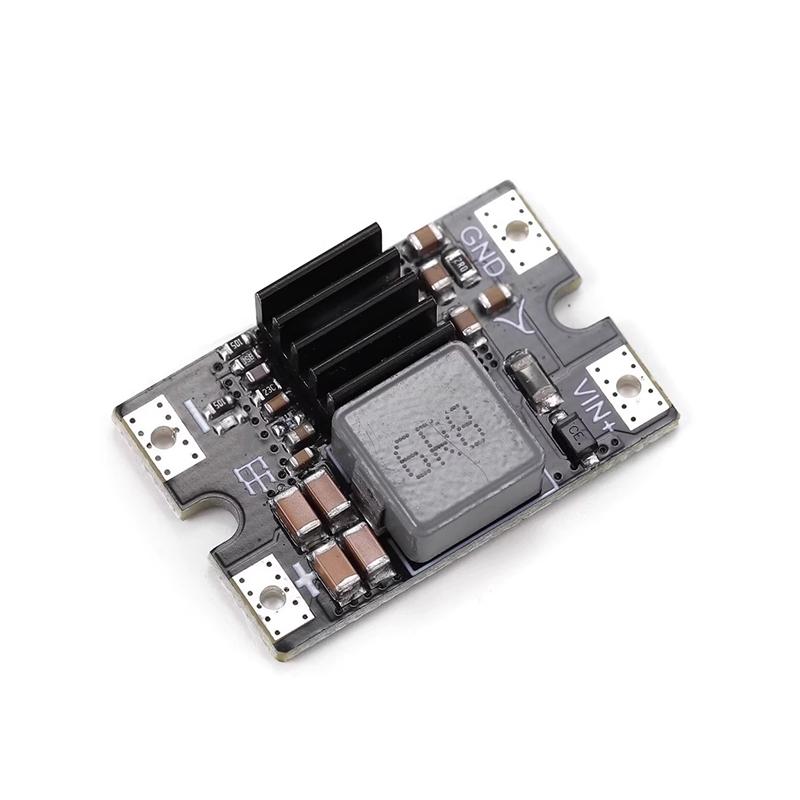

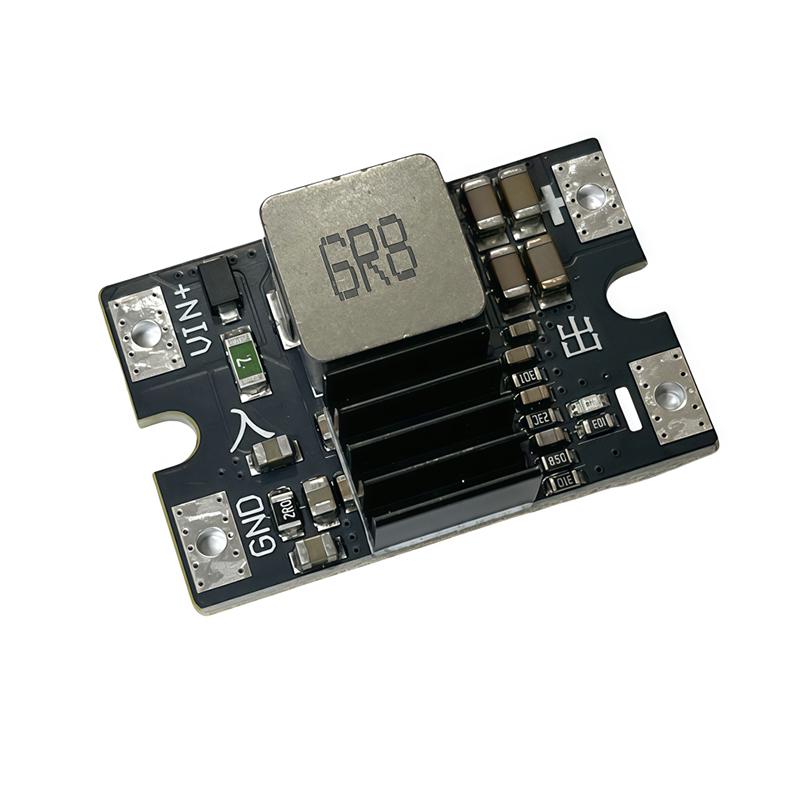

1Pcs Voltage Regulator Pcb Board Module High Efficiency Output 8A Dc-Dc 25V To 3.3V/5V/9V/12V Buck Step Down Converter Module

Description: 1. The module adopts imported chips, with low static power consumption, low ripple output, and high conversion efficiency. It can output 8A for a short time and 5A for a long time without external heat dissipation at room temperature, such as sustainable 8A performance on drones. 2. Small size, high power, limited heat dissipation capacity, recommended current for continuous use below 5A, and recommended maximum voltage not exceeding 25V. 3. Low power ripple, multiple protections, safe and reliable, output short circuit protection, and built-in over temperature protection. 4. The input is equipped with TVS and fuses, and the product design, materials, and PCB process have put in sufficient effort to enable this module to achieve considerable parameters and functions in a very small volume. 5. High conversion efficiency, up to 95% conversion efficiency. Parameters: Material: Metal Input: DC 25V (maximum) Output: 3.3V/5V/9V/12V Current output: 8A (maximum) Quiescent current: 0.1mA Conversion efficiency: up to 95% Low ripple: 500KHZ Output short-circuit protection Built in over temperature protection Operating temperature: -40 ° C to+85 ° C 5/9/12/24V optional Main uses: low-voltage voltage reduction, unmanned power supply, MCU power supply, ripple requirements, slightly higher circuits Attention: The module has a relatively small volume and limited heat dissipation area. It is normal for high-power output to generate heat. The back of the board can be directly attached to the surface of a fixed object to enhance heat dissipation. The board has a thickness of 7.4mm and includes heat dissipation fins. For applications with high power consumption requirements, the output LED indicator light can be removed. Module interface: VIN+: DC input positive pole 6V-25V (must be higher than output voltage by more than 1V). GND: DC input negative pole, connected to output negative pole. +(OUT+): DC output positive pole. -(GND): DC output negative electrode, connected to input negative electrode. Package include: 1pcs x High Efficiency Output DC-DC 25V to 3.3V/5V/9V/12V 8A Buck Step Down Converter Board Module Note: 1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received. 2. Please allow slight manual measurement deviation for the data. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
