T2101 DC 12V Programmable Timer Controller - Dual-Mode Single-Channel Delay Relay Module with Direct Output

T2101 Digital Cycle Timer Relay Module DC 12V Dual-Mode Dual LED Display Single-Channel Programmable Delay Controller

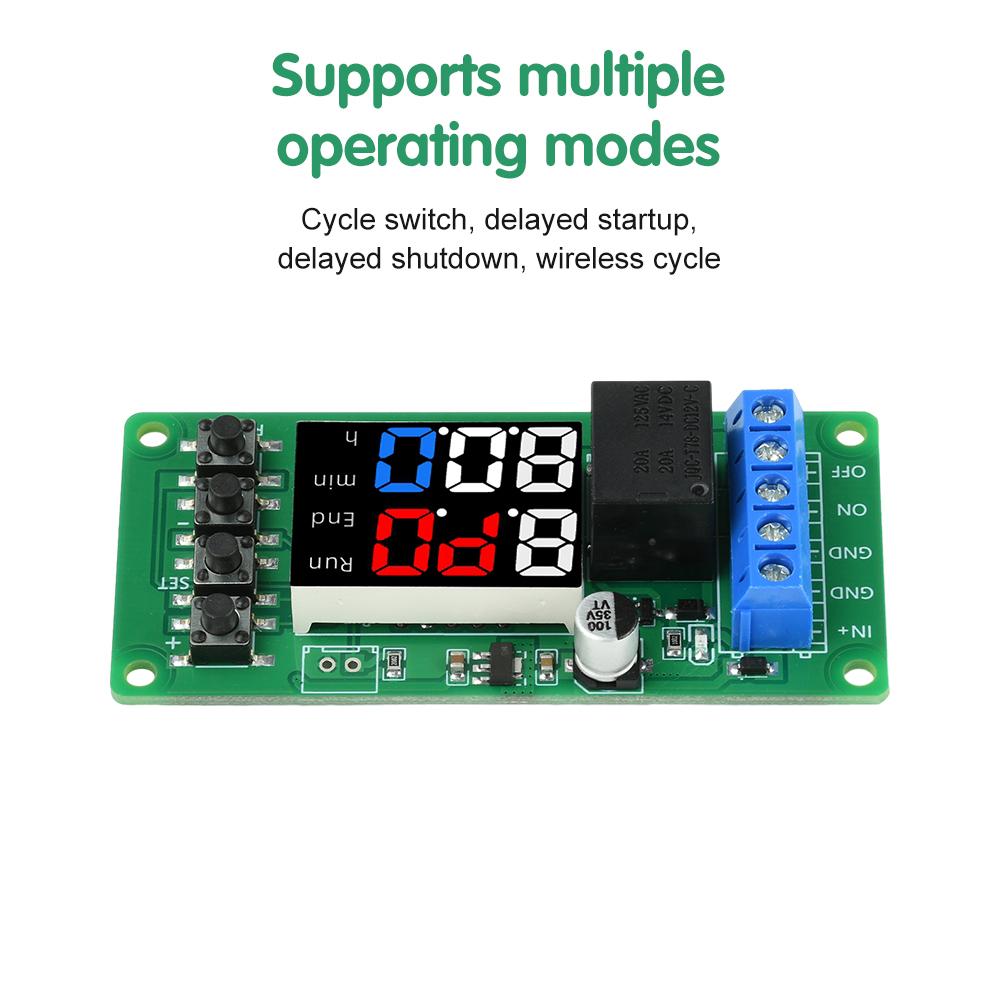

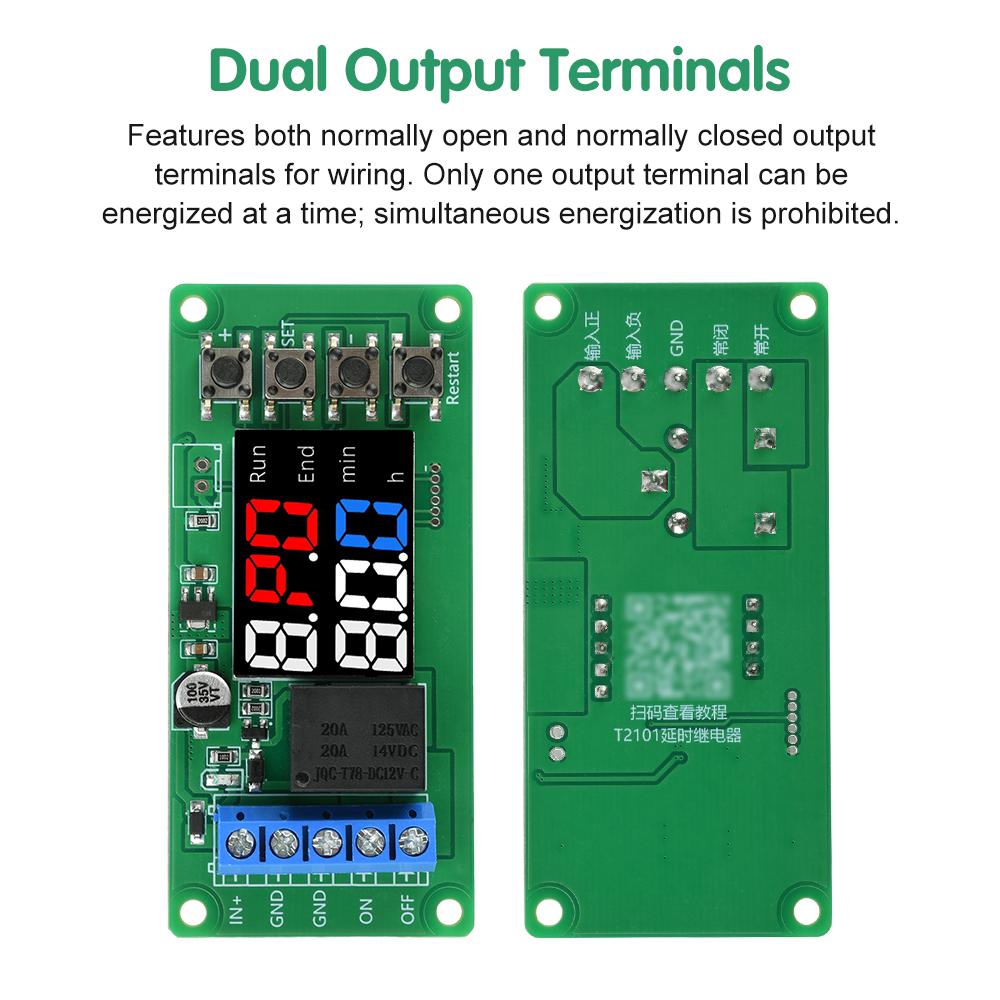

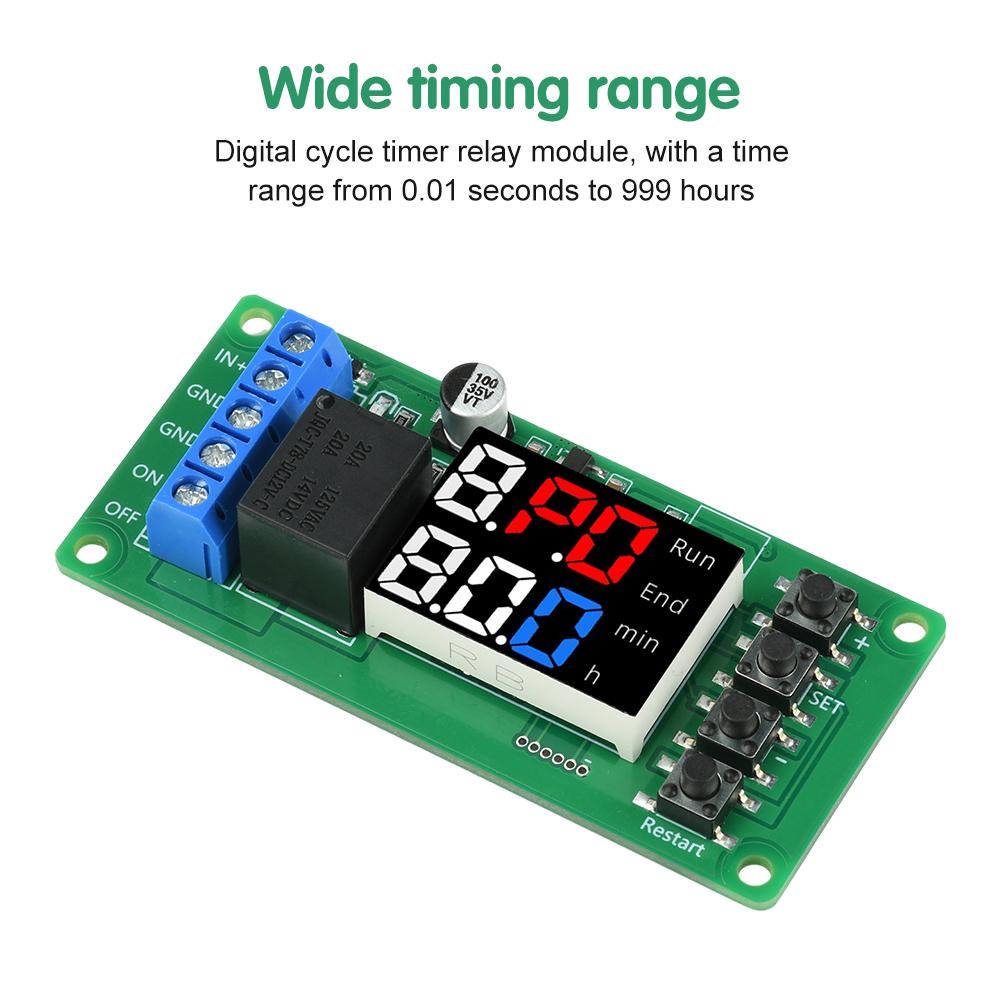

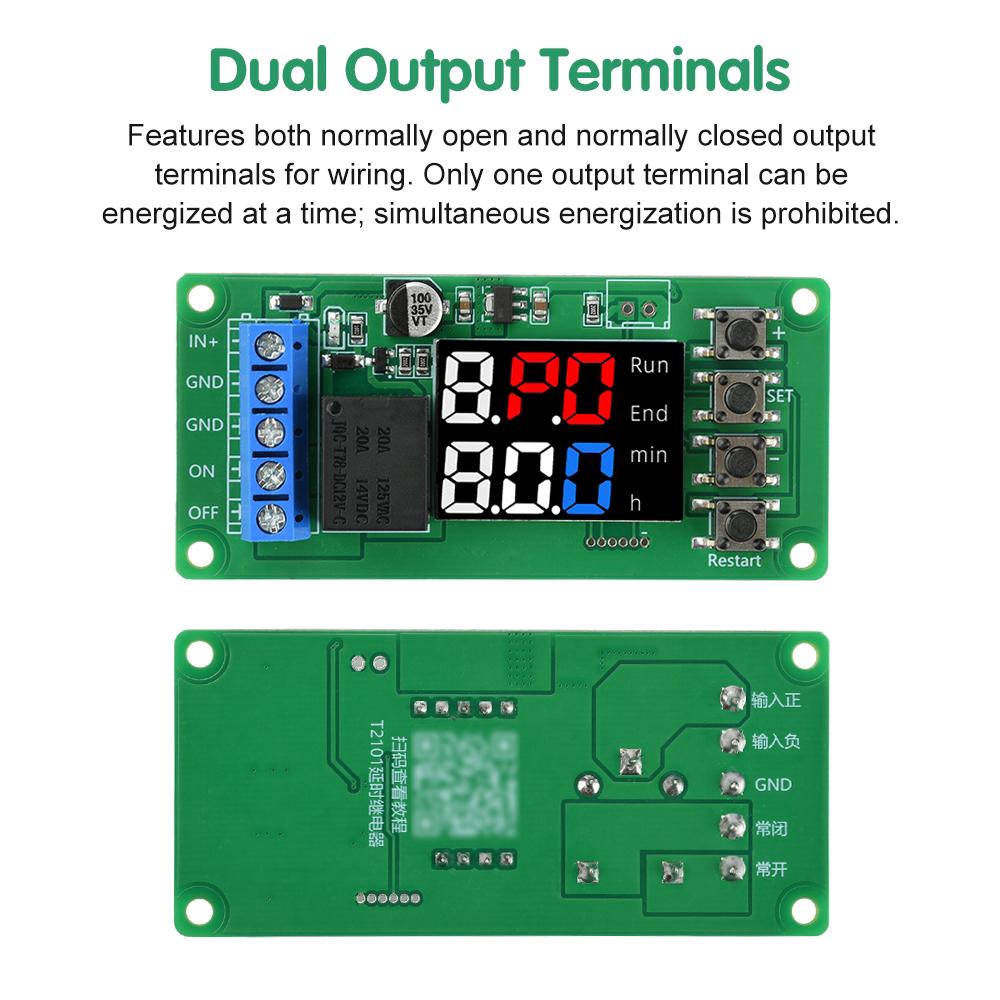

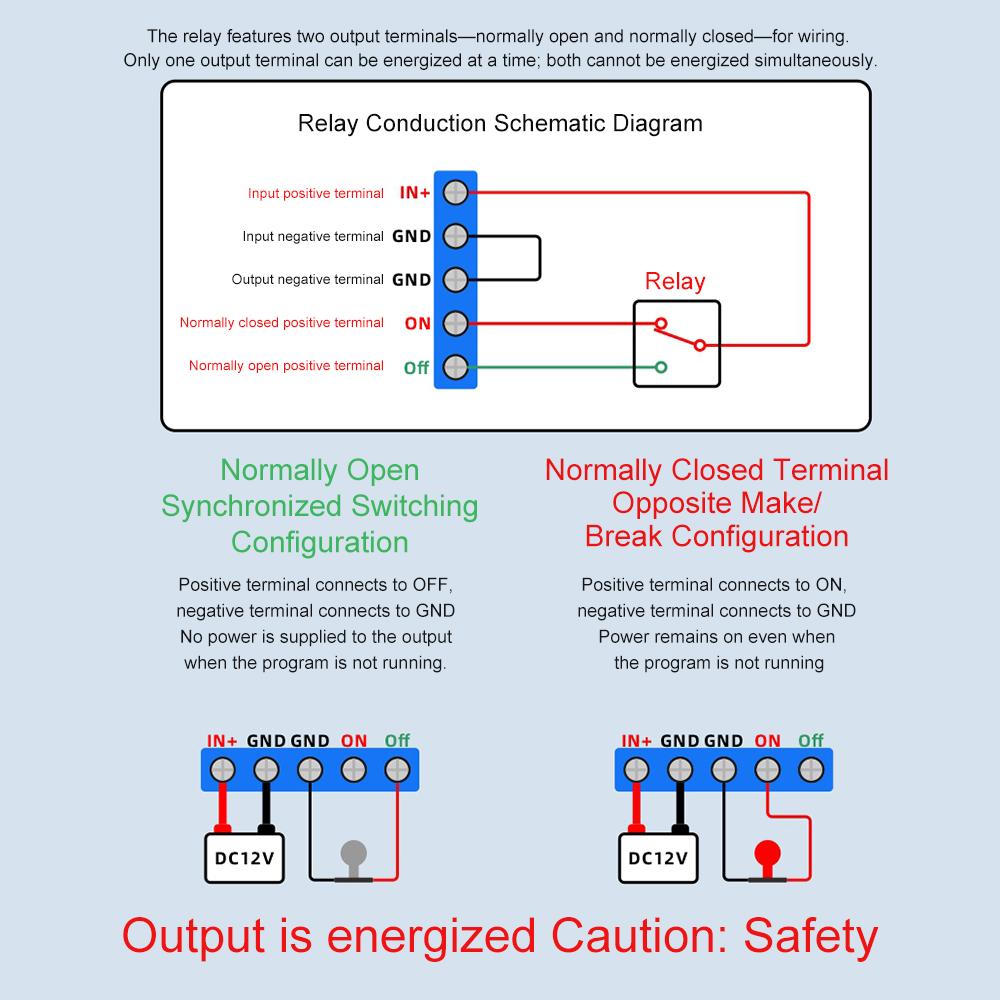

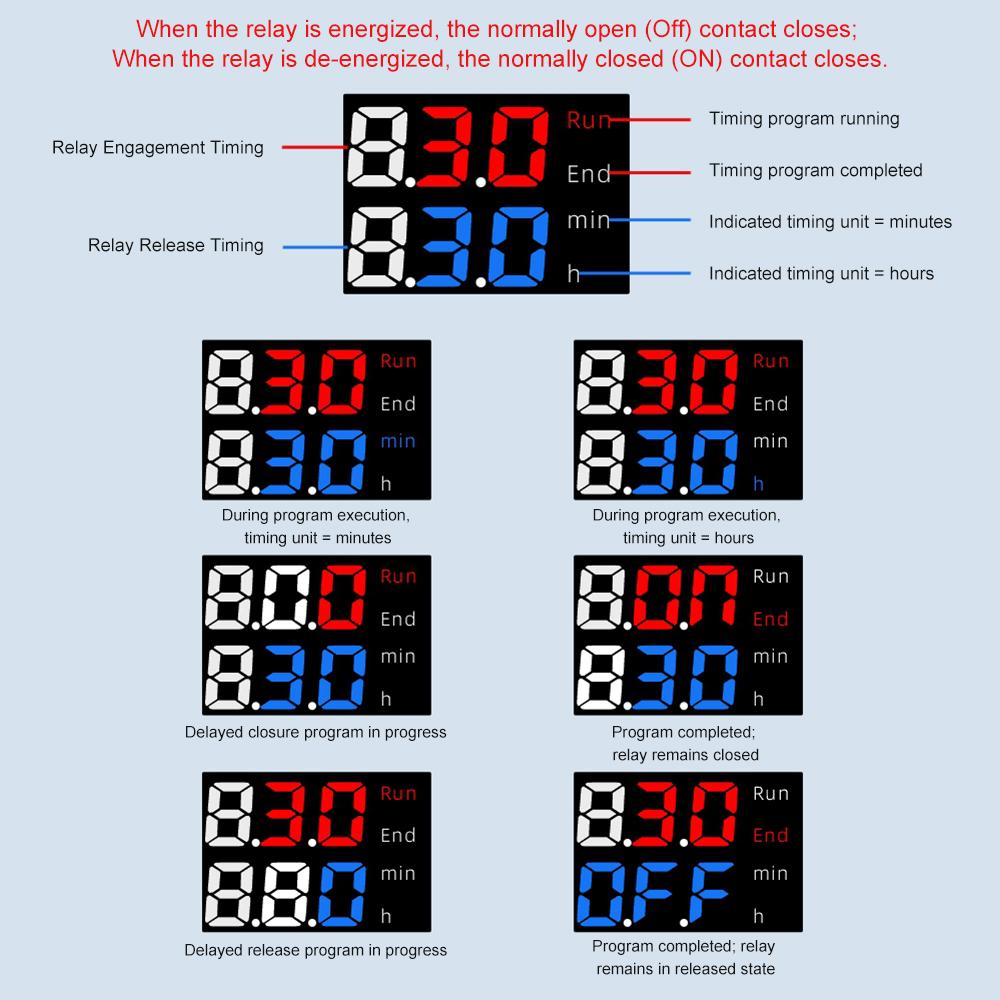

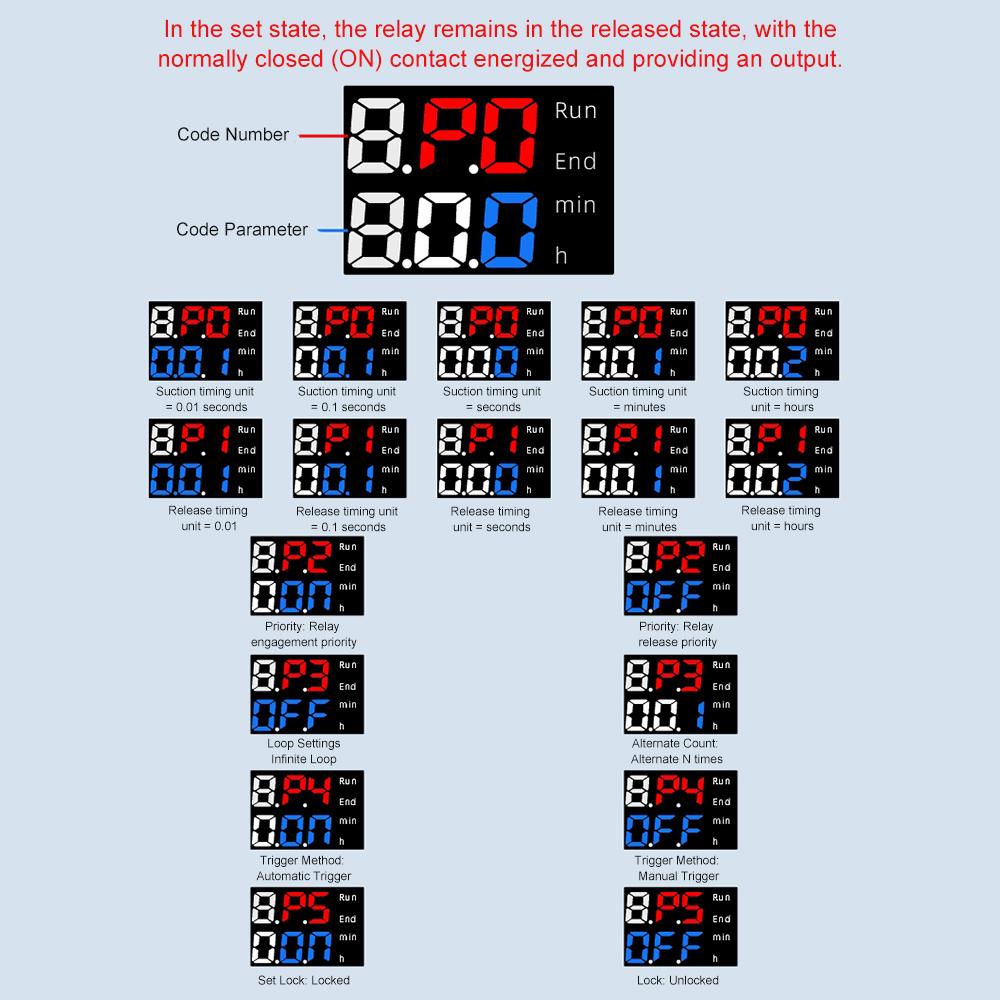

Features: 1. The relay has two output terminals, normally open and normally closed, which can be wired. Only one output terminal can be connected at a time; they cannot be connected simultaneously. 2. In the setting state, the relay remains in the released state, with the normally closed terminal (ON) conducting and providing output. 3. Wide timing range: Digital cycle timer relay module, with a time range from 0.01 seconds to 999 hours. 4. Dual LED display: Red and blue dual LED display module and push-button controls for easy setting of delay time and operating mode. 5. Supports multiple operating modes: Cyclic switch, delayed start-up, delayed shutdown, and infinite cycle.

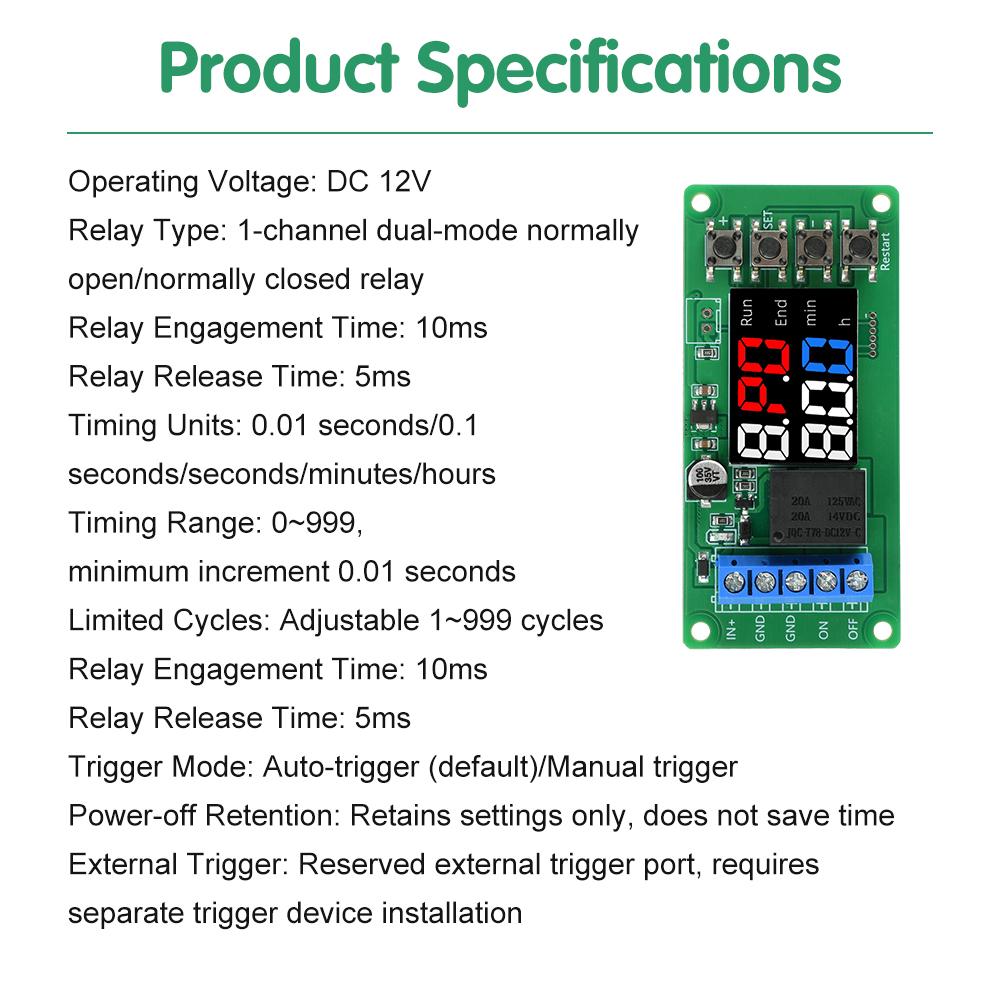

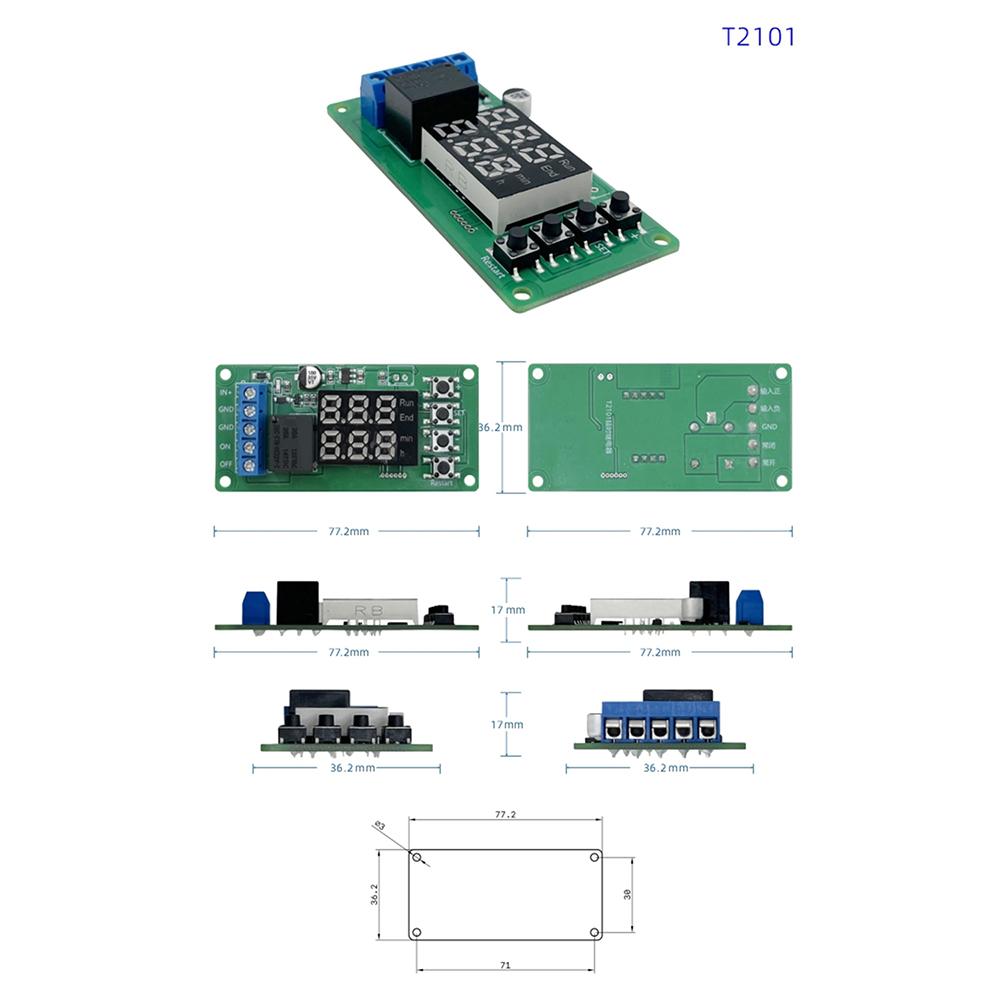

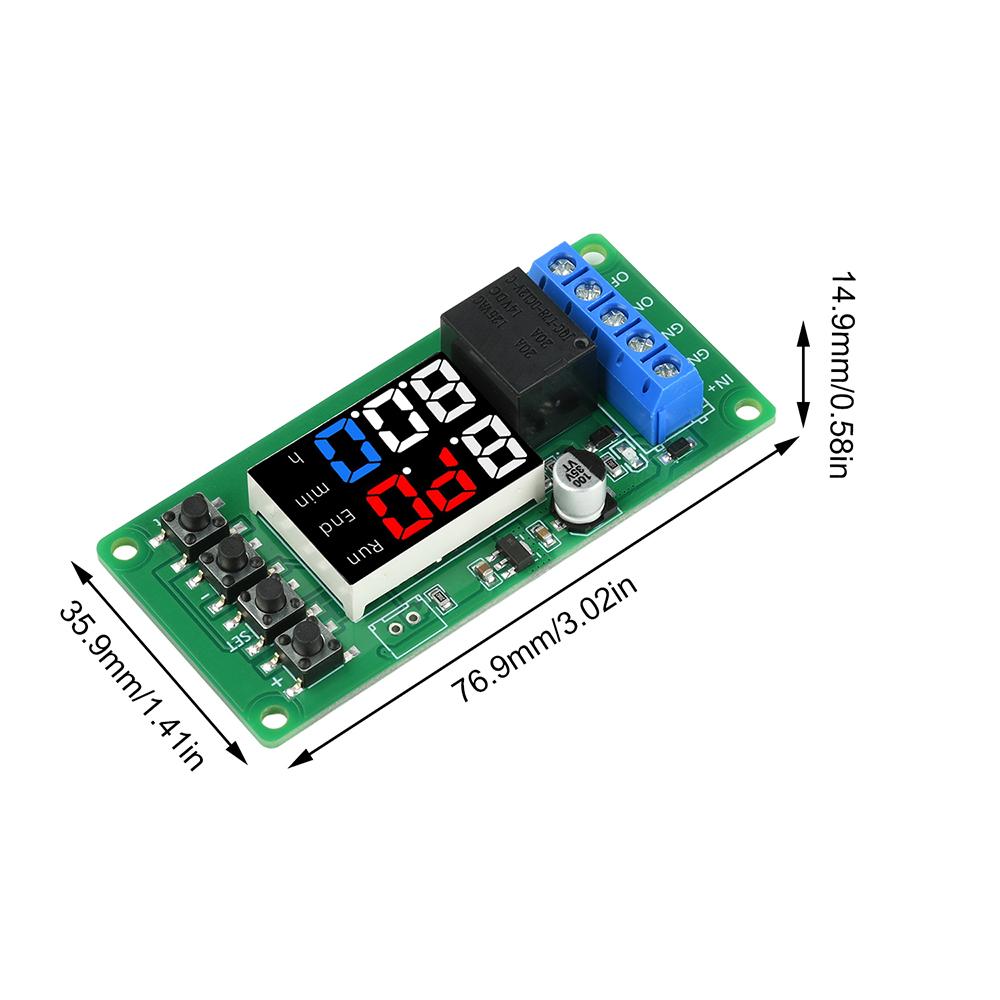

Specifications: Operating Voltage: DC 12V Relay Type: 1-channel dual-mode normally open/normally closed relay Timing Unit: 0.01 sec/0.1 sec/minute/hour Timing Range: 0~999, minimum unit 0.01 sec Limited Cycles: 1~999 adjustable cycles Relay Engagement Time: 10ms Relay Release Time: 5ms Trigger Method: Automatic trigger (default)/Manual trigger Power-off Retention: Saves settings only, not time External Trigger: Reserved external trigger port; trigger device needs to be installed separately Product Dimensions: 77.2×36.2×17mm

Package List: Module *1
