Comprehensive Introduction to TDA7297 Dual-Channel Audio Amplifier Board

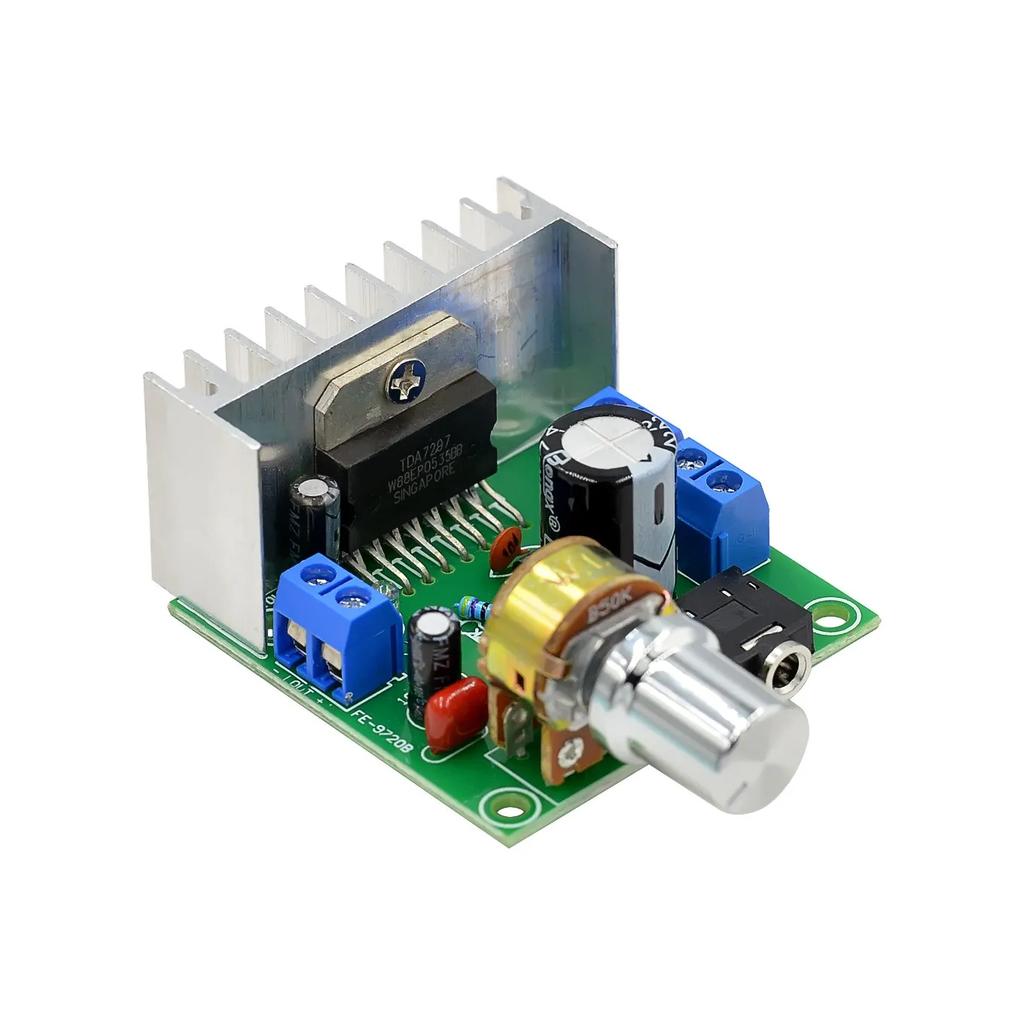

This image showcases a TDA7297-based dual-channel audio power amplifier board, a classic, cost-effective, and highly reliable audio amplification solution widely favored by DIY audio enthusiasts, hobbyists, and embedded system developers. Designed for high-fidelity audio output, this module delivers powerful, clear sound performance in a compact form factor, making it ideal for a wide range of audio projects and applications.
Core Hardware & Chip Features
At the heart of the amplifier board is the TDA7297 integrated circuit (IC), a renowned Class AB audio power amplifier from STMicroelectronics. This chip is engineered for dual-channel stereo output, delivering a continuous output power of 15W per channel (at 4Ω impedance, 12V DC supply) and up to 20W per channel under optimal conditions, with a maximum supply voltage range of 6-18V DC. The TDA7297 is distinguished by its low distortion, high signal-to-noise ratio (SNR), and built-in thermal shutdown and short-circuit protection, ensuring long-term stable operation even under heavy load.

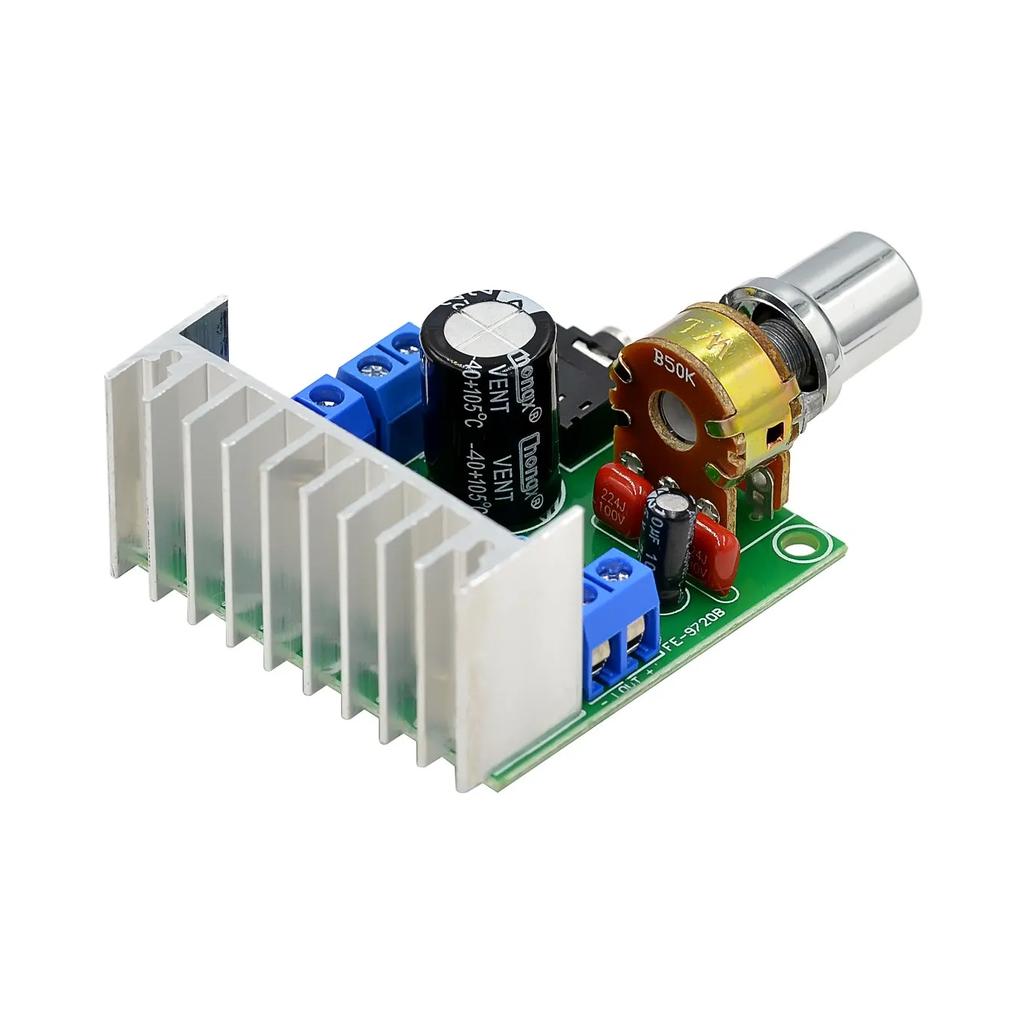

To ensure reliable heat dissipation during high-power output, the board is equipped with a large aluminum heatsink mounted directly on the TDA7297 chip, effectively preventing overheating and extending the service life of the amplifier. The board also features a high-quality 50KΩ rotary potentiometer for adjustable volume control, allowing users to precisely fine-tune the output volume to their preference.
Circuit Design & Interface Configuration

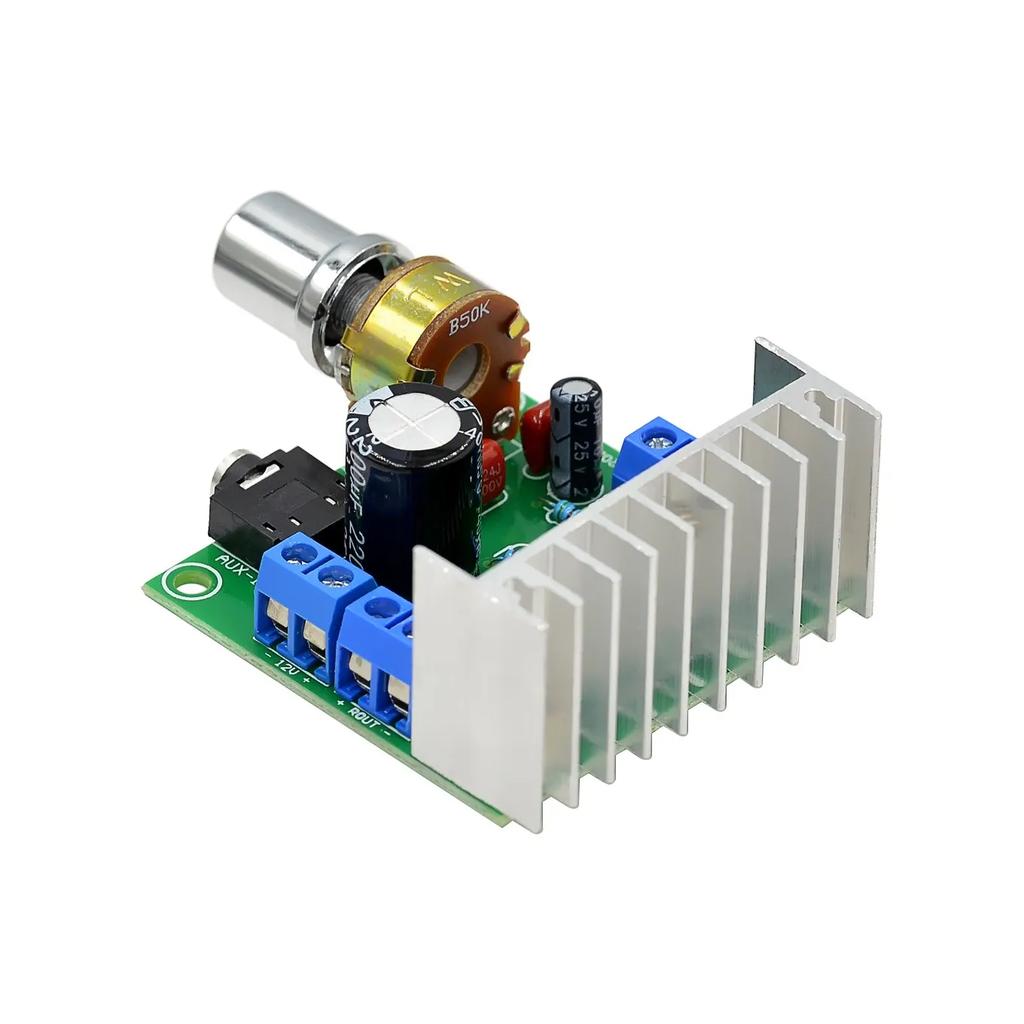

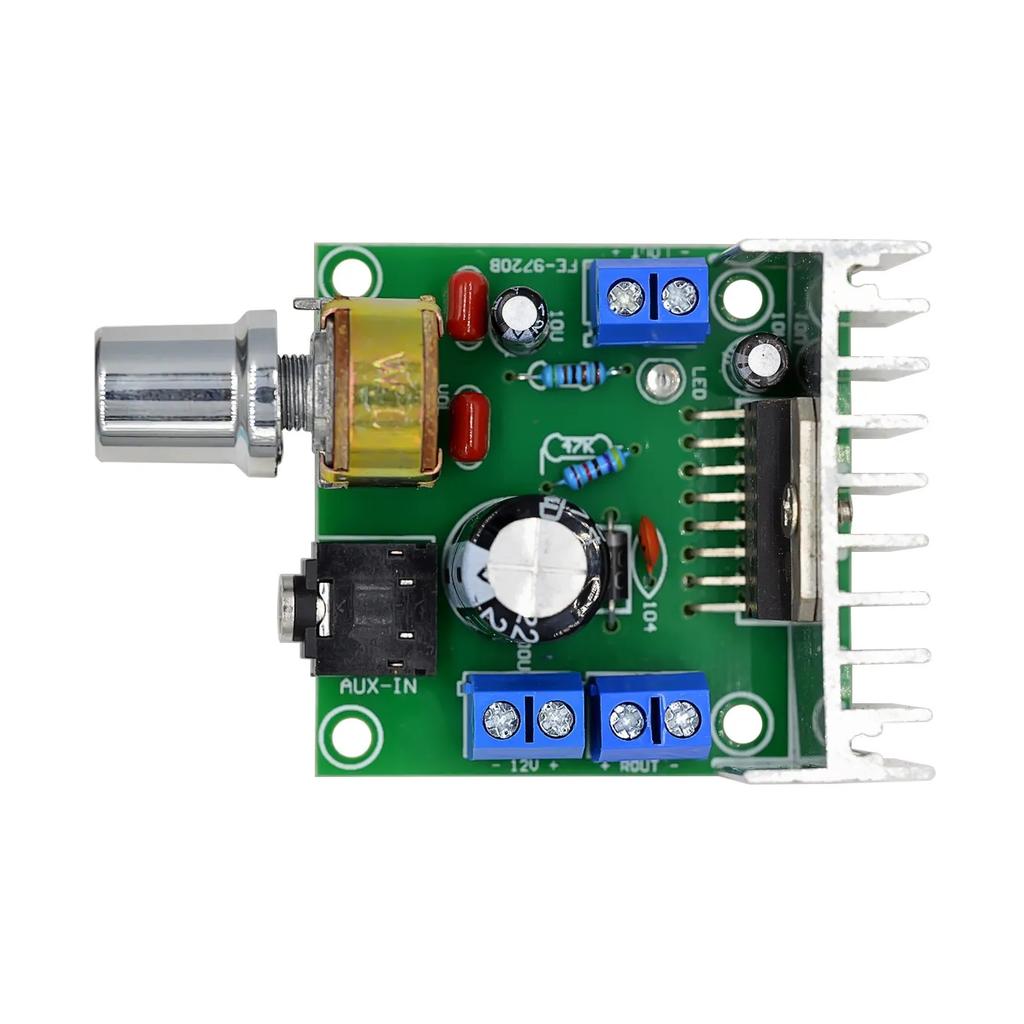

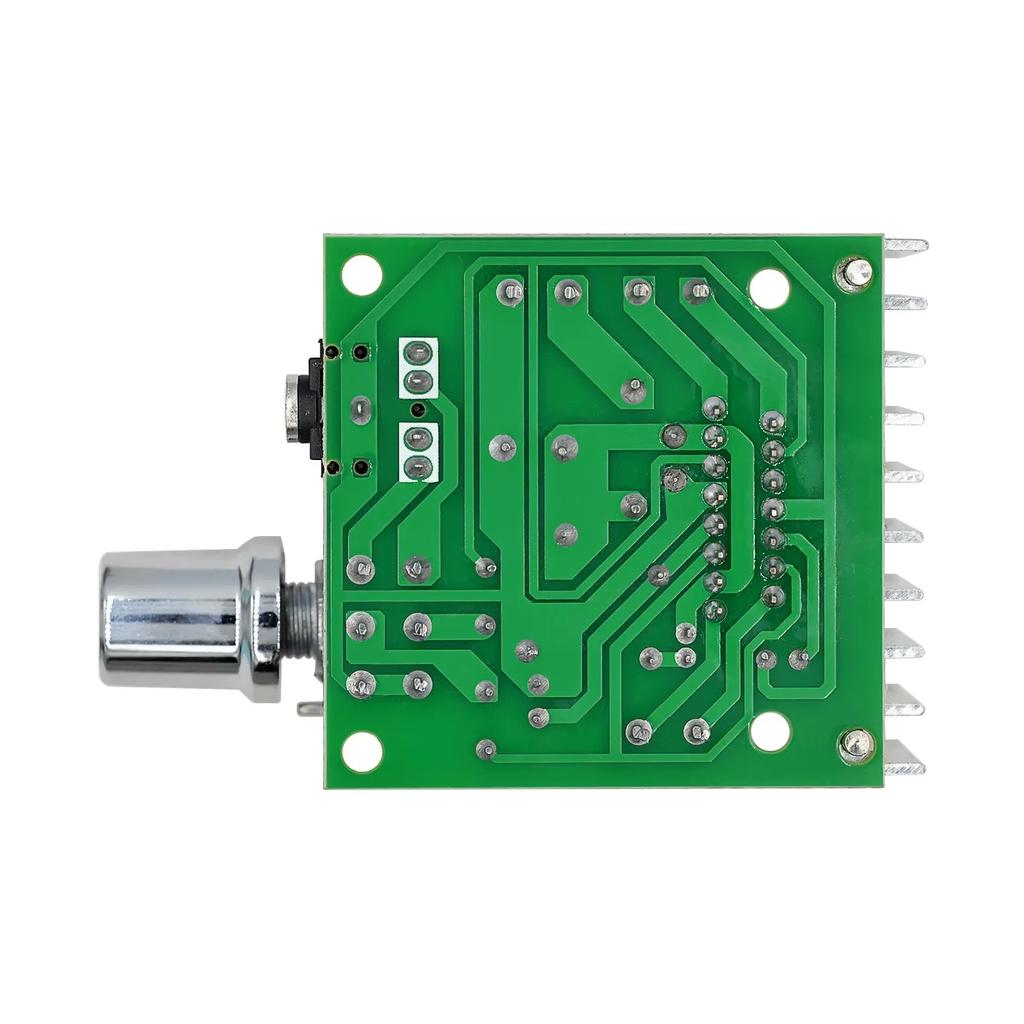

The amplifier board adopts a mature and optimized circuit layout, with high-quality electrolytic capacitors (including a large 25V/470μF main filter capacitor) and ceramic capacitors for power supply filtering, effectively suppressing power ripple and ensuring clean, stable audio output. The input stage supports both 3.5mm audio jack input and screw terminal input, making it compatible with a variety of audio sources such as smartphones, MP3 players, computers, and Bluetooth audio receivers. The output stage uses blue screw terminals for easy, secure connection to 4Ω-8Ω passive speakers, eliminating the need for soldering and simplifying installation.
Additional circuit components include a red LED power indicator, a 1N4148 diode for reverse polarity protection, and a set of resistors and capacitors for frequency compensation and noise reduction, ensuring the amplifier delivers clear, distortion-free sound across the entire audio frequency range (20Hz-20kHz).
