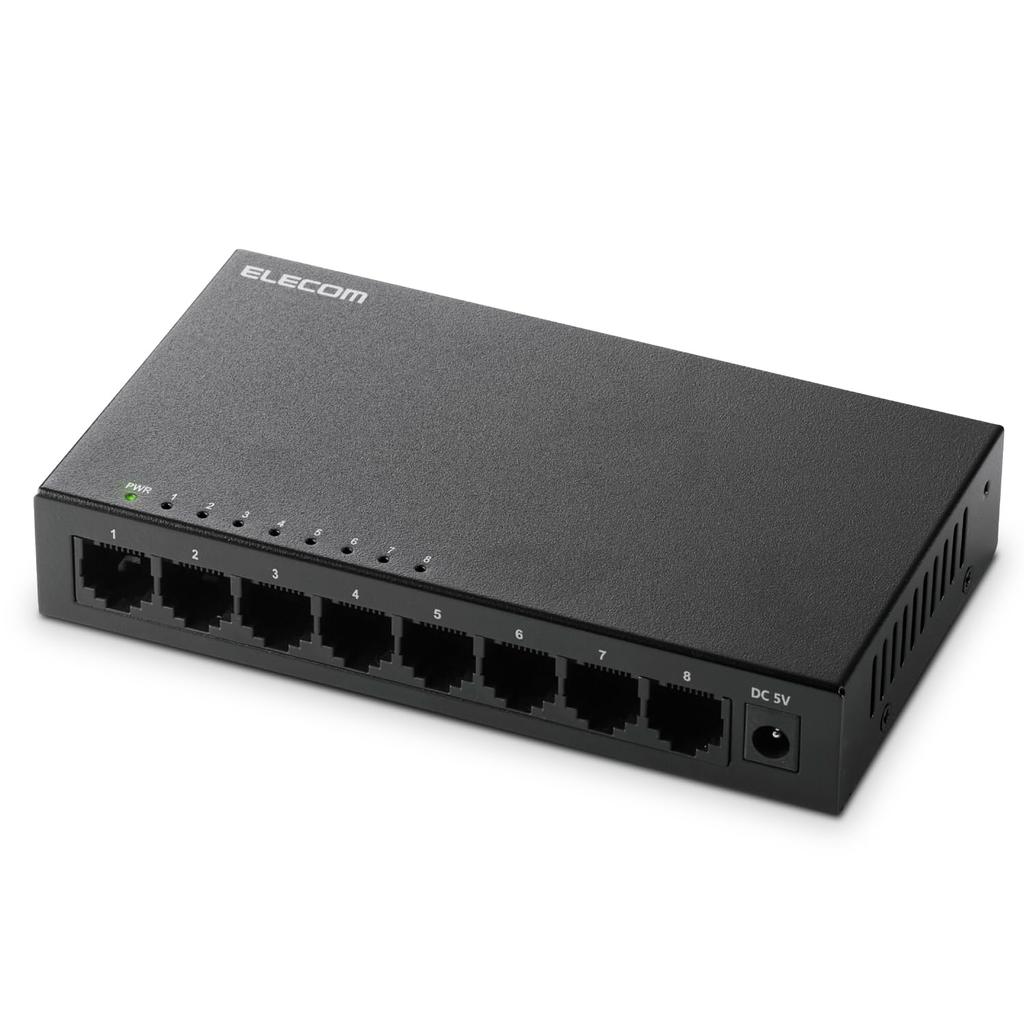

ELECOM Gigabit 8-Port Switching Hub, Metal Casing, AC Power, Silent Fanless, Black EHC-LG08M-B

【Specifications】 ■Transmission Speed: 1000Mbps (1000BASE-T), 100Mbps (100BASE-TX), 10Mbps (10BASE-T) ■Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 ■Switching Method: Store & Forward ■Communication Method: Full Duplex, Half Duplex ■Flow Control: IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex) ■Number of Ports: 8 ports ■Auto MDI/MDI-X: Supported ■ Auto-negotiation: Supported ■ Connector shape: RJ-45 x 8 ■ Compatible cables: 1000BASE-T: UTP Category 5e or higher, 100BASE-TX: UTP Category 5 or higher, 10BASE-T: UTP Category 3 or higher ■ Buffer memory: 512Kbytes (dynamically allocated to each port) ■ Switching fabric: 16.0Gbps ■ Maximum packet forwarding capacity: 11.9Mpps ■ Packet forwarding rate: 1,488, 095 packets/sec (1000Mbps), 148,809 packets/sec (100Mbps), 14,880 packets/sec (10Mbps) ■ MAC address registration count: 8,192 (total for all ports) ■ Jumbo frame: Supported (15Kbytes) ■ Non-blocking: Supported ■ EAP transparency function: Supported ■ BPDU transparency function: Supported ■ Loop detection/prevention function: Not supported ■ PoE specification: Not supported ■ Power supply specification: Dedicated AC adapter ■ Input voltage: AC100～240V±10% 50/60Hz ■Power Consumption: 3.2W (Maximum) ■Heat Generation: Approx. 11.6kJ/h (Maximum) ■Power Saving Function: Easy Power Saving Compatible ■Energy Efficiency: 0.4W/Gbps ■Maximum Effective Transmission Speed: 8.0Gbps ■Port Speed ​​and Number of Ports During Measurement: 1Gbps: 8 Ports ■External Dimensions: Approx. 138mm (W) x Approx. 78mm (D) x Approx. 25mm (H) (Main Unit Only) ■Weight: Approx. 215g (Main Unit Only) ■Housing Material (Color): Metal (Black) ■Cooling fan: None ■Anti-theft: No security slot ■Installation method: Horizontal installation, wall mounting ■Wall mounting holes: Yes ■Operating environment conditions: Temperature: 0℃ to 40℃, Humidity: 10% to 90% (non-condensing) ■Storage environment conditions: Temperature: -40℃ to 70℃, Humidity: 5% to 90% (non-condensing) ■MTBF: 1,786,000 hours @ 25℃, 1,221,000 hours @ 40℃ ■Regulatory compliance: EU RoHS Compliant (10 substances) ■ Compliance Standard: VCCI Class B ■ Accessories: Dedicated AC adapter (approx. 1.2m): 1, Product Information: 1, For Safe Use: 1 ■ Warranty Period: 1 year ■ Maintenance Service | Delivery: - ■ Maintenance Service | Send-back Extension: - ■ Dedicated Optional Accessories | Magnet: -

【Description】 ■ All ports support Giga (1000BASE-T). Enables a high-speed network environment in your home or office.

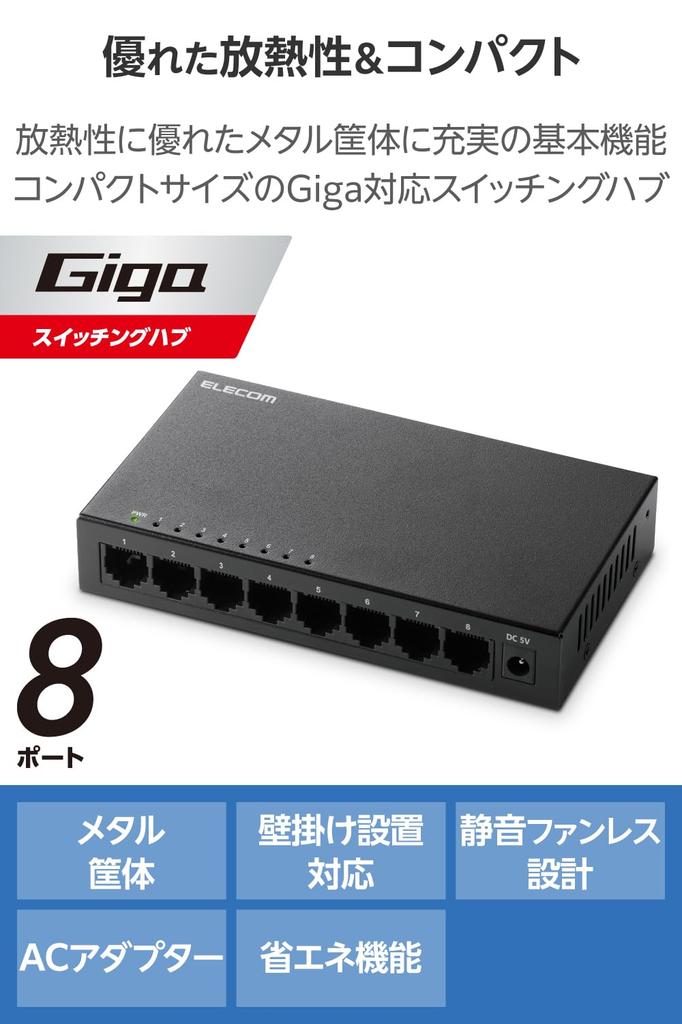

■ Features a robust metal casing with excellent heat dissipation. Safe for extended use.

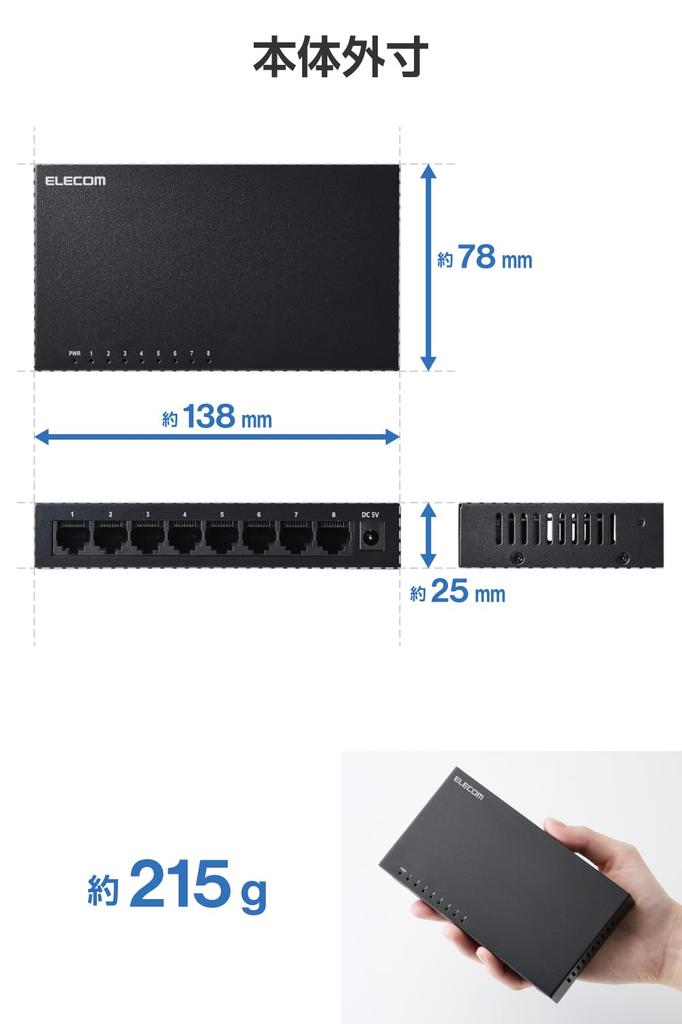

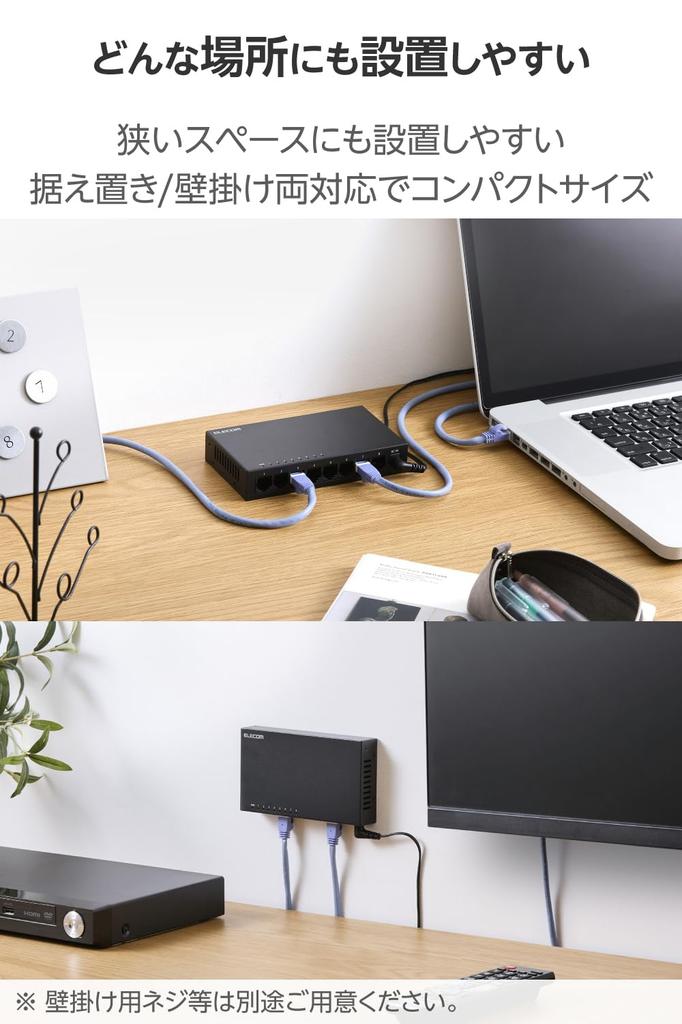

■ Compact size for space-saving installation. Includes mounting holes on the back for wall mounting.

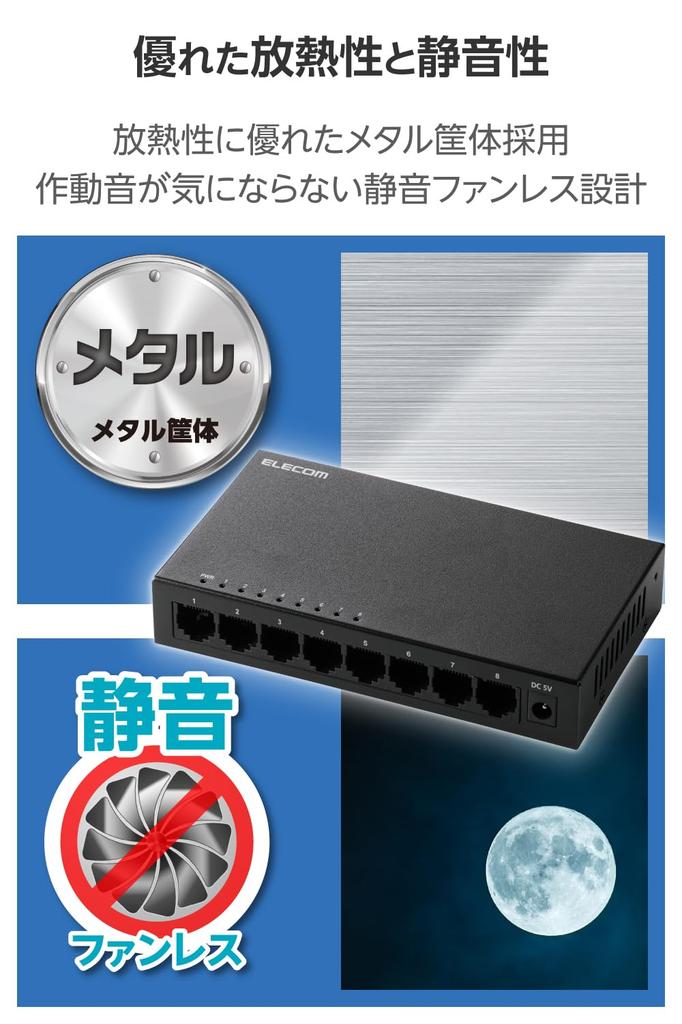

■ Silent fanless design ensures quiet operation, even in quiet rooms.

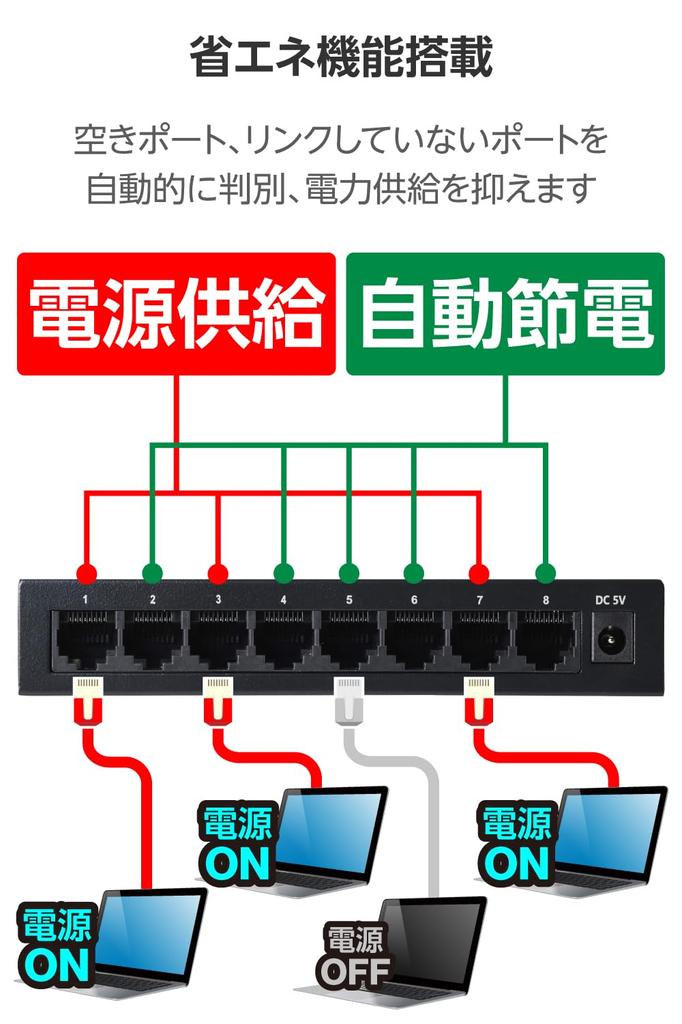

■ Easy power saving function automatically detects unconnected and unlinked ports, reducing power supply. This energy-saving switching hub complies with energy conservation laws, achieving significant power savings in environments where the computer is shut down.

■ No electrolytic capacitors are used on the main board. This results in a highly reliable switching hub with a long lifespan design.

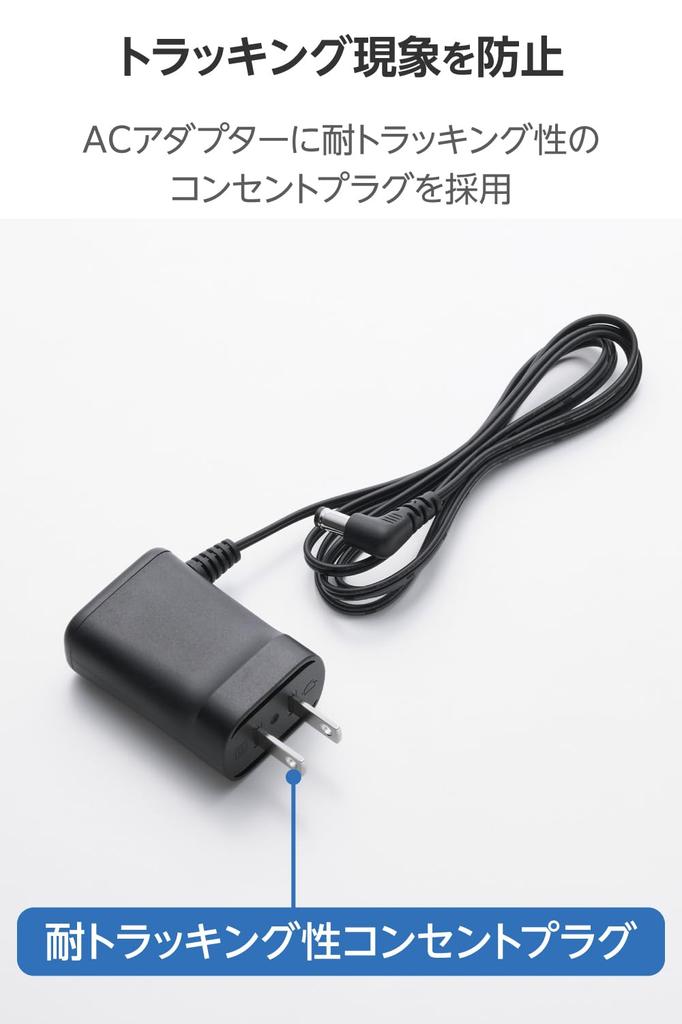

■ The AC adapter uses a tracking-resistant plug. This prevents tracking phenomena even when installed for extended periods.

■ Supports jumbo frames, enabling faster data transfer with jumbo frame compatible devices.

■ Environmentally friendly, compliant with the EU RoHS Directive. The EU RoHS Directive is a directive established by the EU (European Union) regarding the restriction of the use of certain hazardous substances in electrical and electronic equipment.

■ This product meets at least one of our company's environmental certification standards and displays the 'THINK ECOLOGY' mark.

■ Committed to environmental protection, the product packaging is made only of paper, cardboard, and plastic bags.

【Product Inquiries】 Product support introduces "Frequently Asked Questions" and "Support Community" by category.

Contact us here: 8056.jp All ports are Giga (1000BASE-T) compatible. Enables a high-speed network environment in your home or office.

Features a robust metal casing with excellent heat dissipation. Safe for extended use.

Compact size for space-saving installation. It has mounting holes on the back for wall mounting.

The silent, fanless design ensures quiet operation, even in quiet rooms.

The easy power-saving function automatically detects unconnected and unlinked ports, reducing power supply. This energy-saving switching hub complies with energy conservation laws, achieving significant power savings when the computer is shut down.
