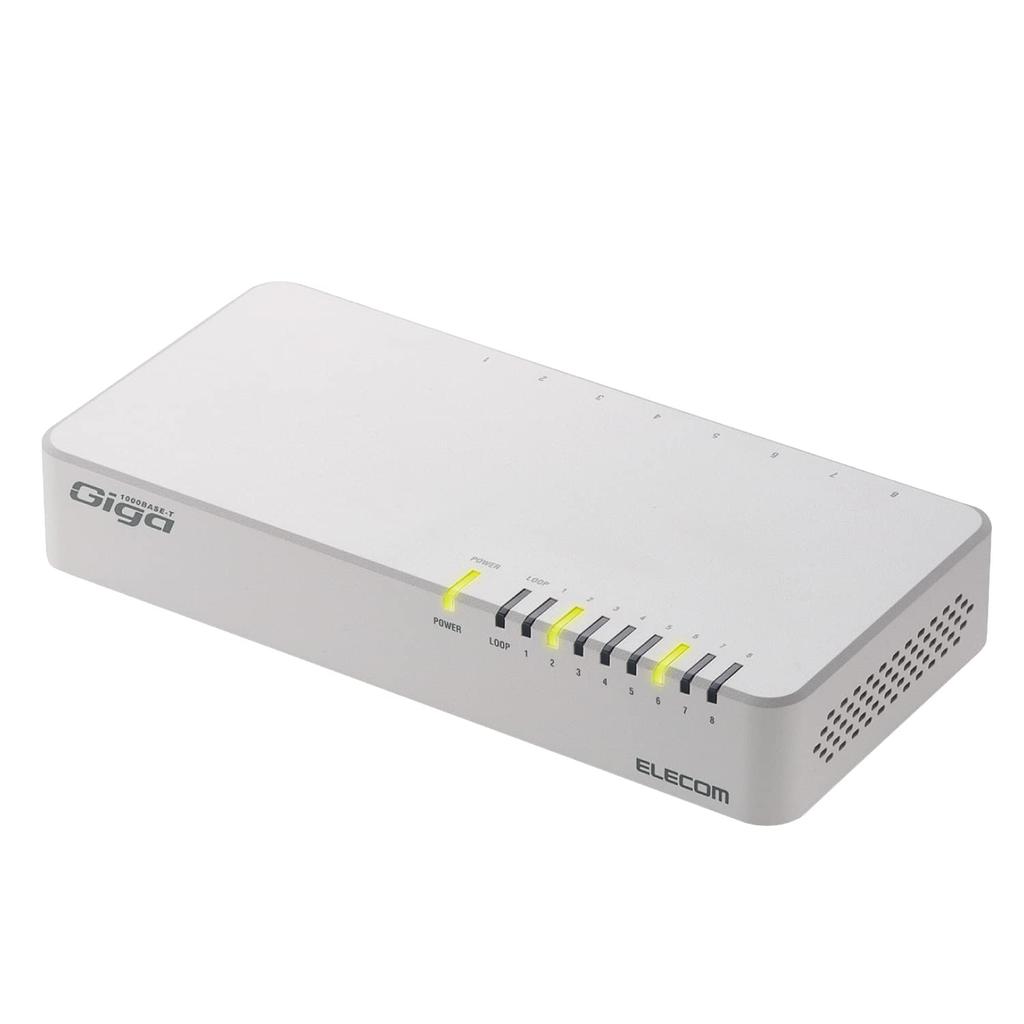

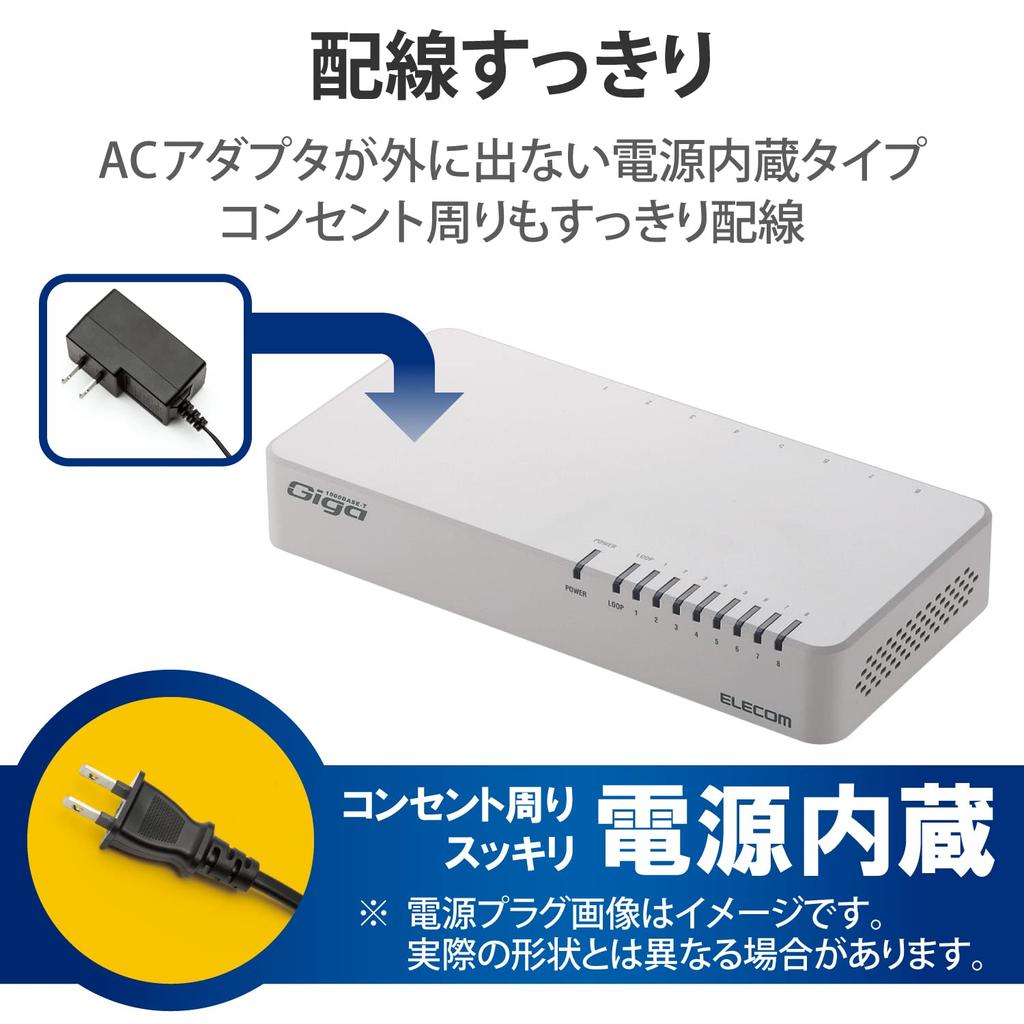

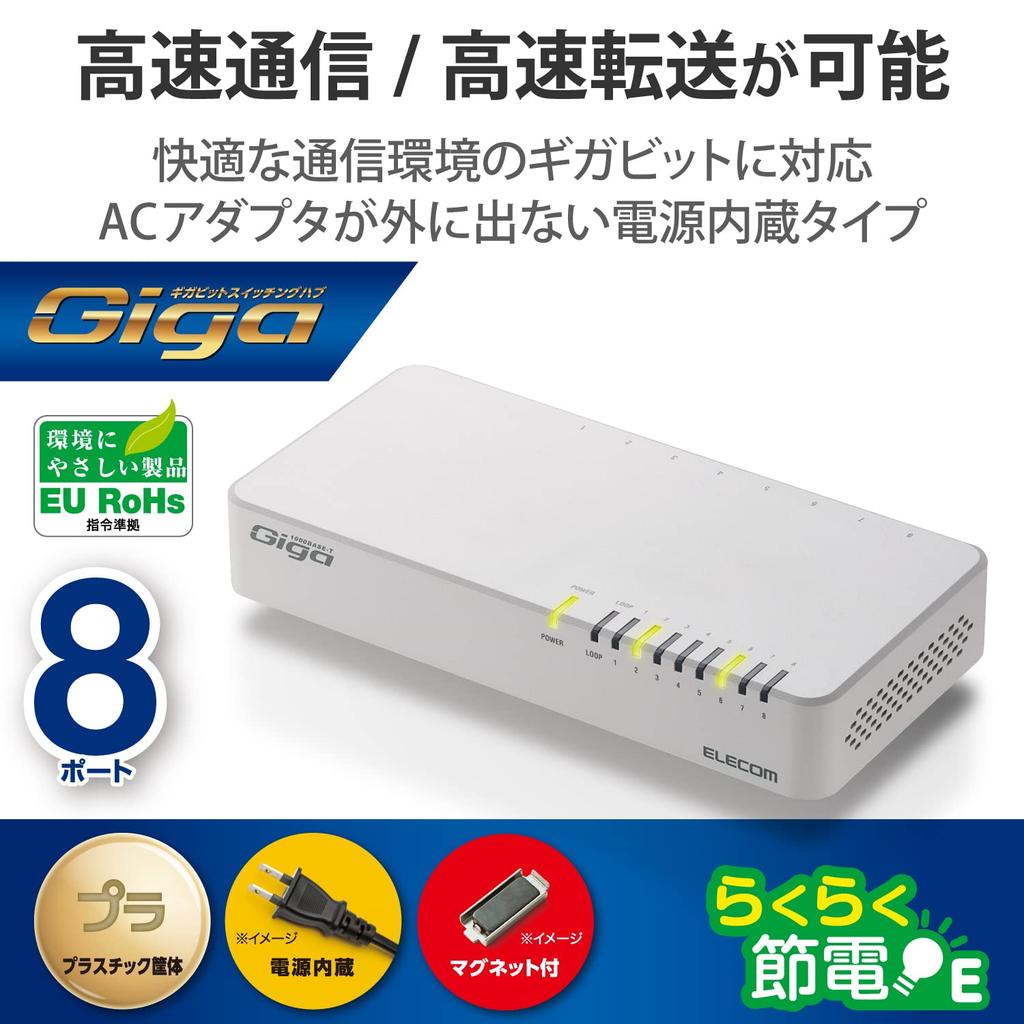

ELECOM Gigabit Ethernet Switching Hub, 8 Ports, Plastic, Magnetic, Built-in Power Supply, White EHC-G08PN2-JW

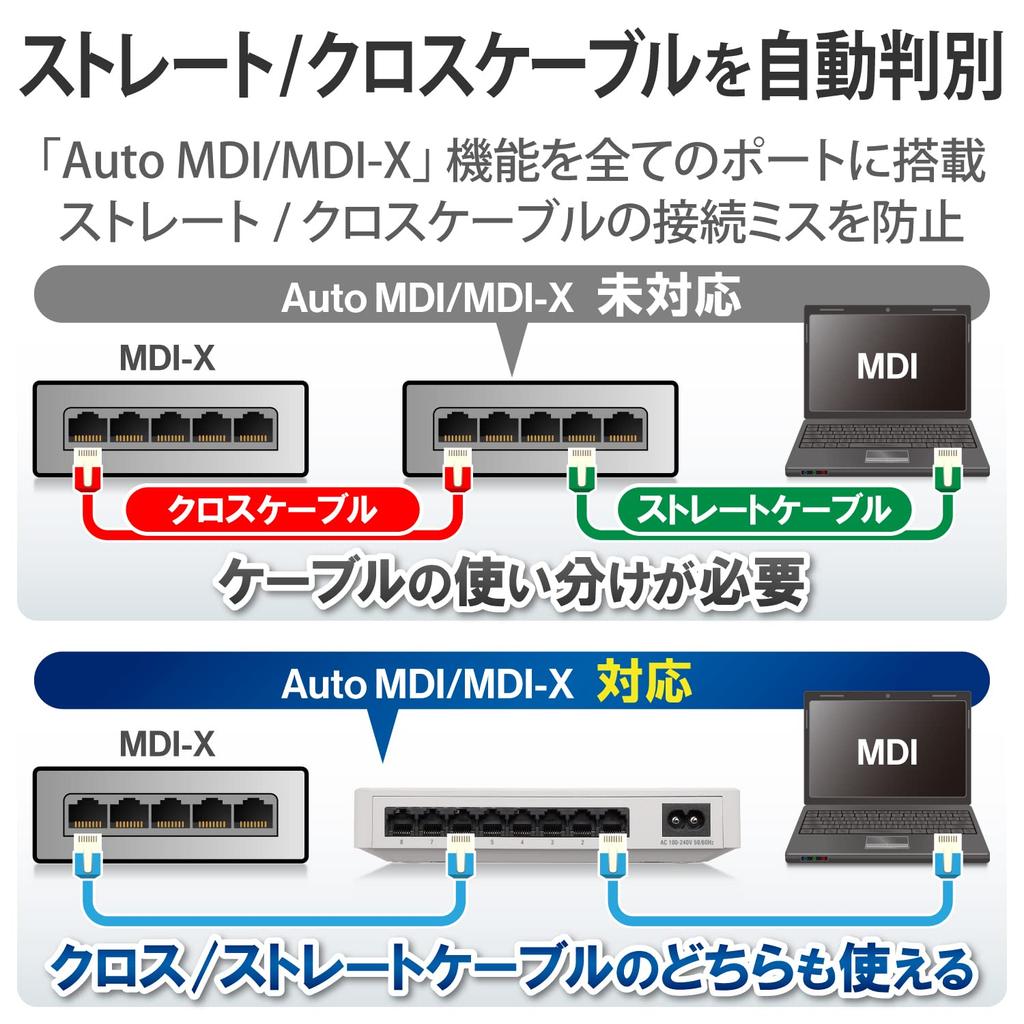

【Specifications】 ■ Connection Method: 1000BASE-T/100BASE-TX/10BASE-T ■ Network Type: IEEE802.3ab/IEEE802.3u/IEEE802.3 ■ Switching Method: Store & Forward ■ Buffer Memory: 192Kbytes (Dynamic allocation to each port) ■ Flow Control: IEEE802.3x (Full Duplex), Back Pressure (Half Duplex) ■ Switch Fabric: 16.0Gbps ■ Maximum Packet Forwarding Capacity: 12.0Mpps ■ Filtering Speed: 1,488,000 packets/sec (1000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps) ■ MAC Address Registration Count: 4,096 (Total for all ports) ■ Number of Ports: 8 ports ■ Auto MDI/MDI-X: Supported ■ Auto-negotiation: Supported (1000/100/10Mbps) ■ Connector shape: RJ-45 ×8 ■ Compatible cable: 10BASE-T: UTP Category 3 or higher, 100BASE-TX: UTP Category 5 or higher, 1000BASE-T: UTP Category 5e or higher ■ Non-blocking: Supported ■ Jumbo frame: Supported (9Kbytes) ■ Loop detection function: Loop detection ■ MTBF: 676,000 hours ■ EAP pass-through function: Supported ■ BPDU pass-through function: Supported ■ Input voltage: AC100～240V±10% 50/60Hz ■ Power consumption (rated): Maximum 5.0W ■ Heat generation: Maximum approx. 18.0kJ/h ■ Power saving function: Easy power saving E (IEEE 802.3az) compatible ■ Energy efficiency: 0.6W/Gbps ■ Maximum Effective Transmission Speed: 8.0Gbps ■ External Dimensions (Width x Depth x Height): Approx. 180.2 x Approx. 86.5 x Approx. 34.0 mm (Main Unit Only) ■ Weight: Approx. 245g ■ Housing Material (Color): Plastic (White) ■ Operating Environment Conditions: Temperature: 0℃ to 40℃, Humidity: 10% to 90% (Non-condensing)

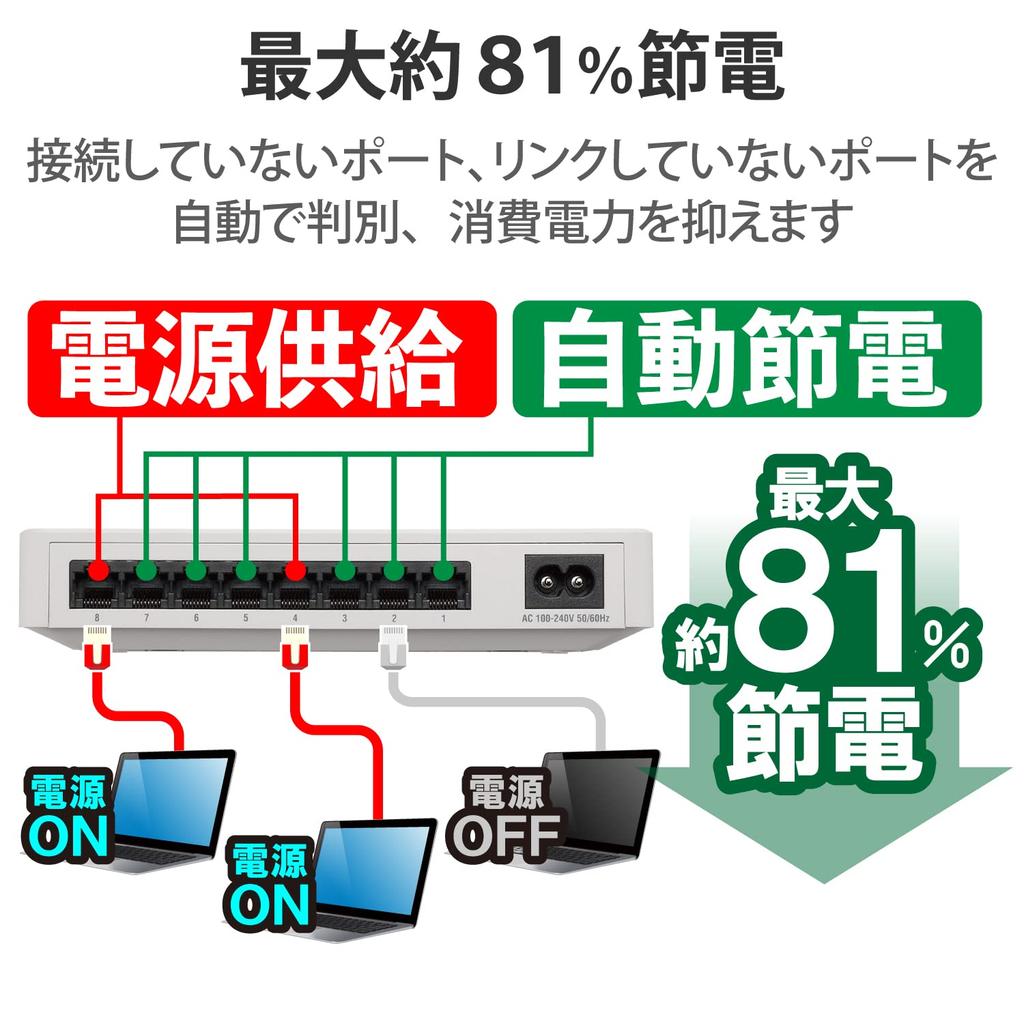

【Description】 ■ This is an 8-port hub with a built-in power supply and plastic casing, compatible with 1000BASE-T, capable of saving up to approximately 81% power* by cutting power supply to ports when not communicating. *Measurement was performed by transferring data from a load device to the hub and comparing power consumption after 1 minute with all ports communicating and not communicating.

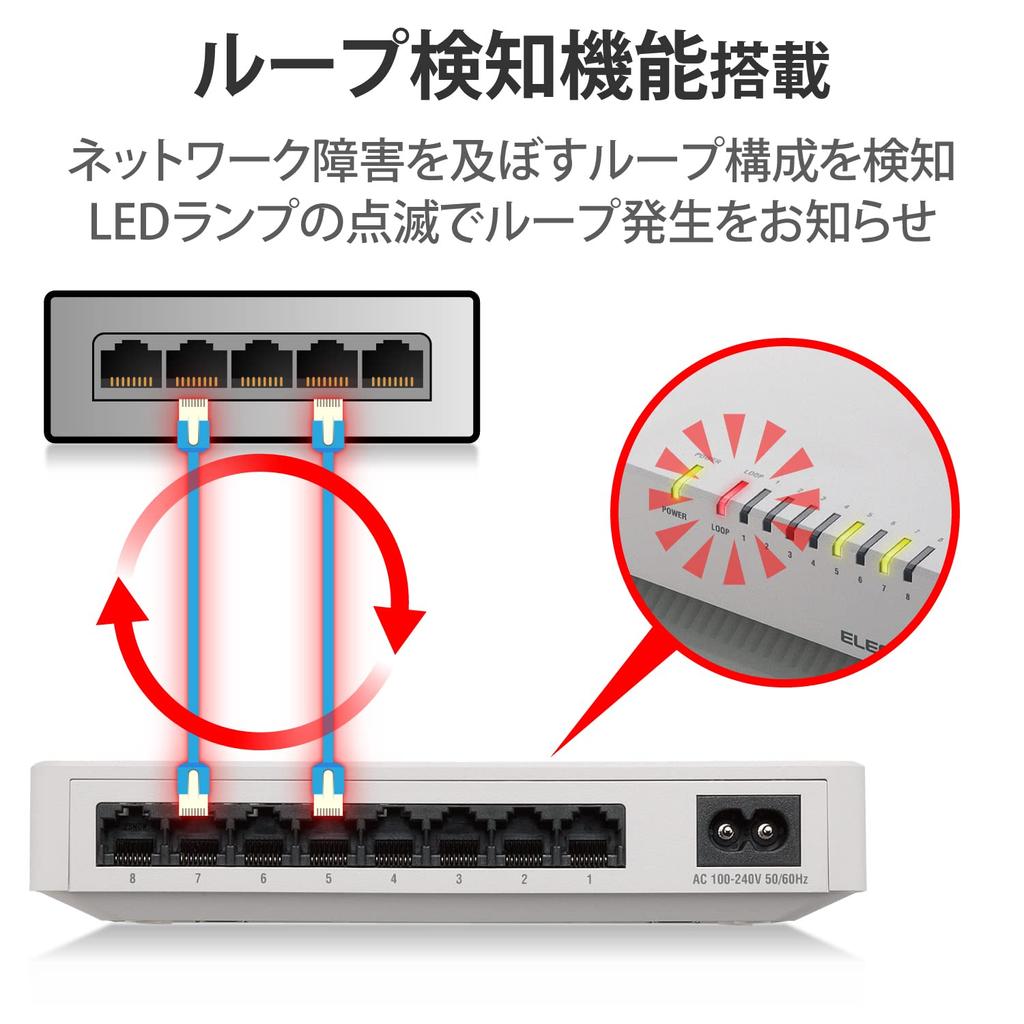

■ Equipped with a loop detection function, it notifies you of network loops that affect network operation. It notifies you with a blinking LED lamp, prompting the resolution of network problems.

■ The fanless design makes it ideal for use in bedrooms, offices, and other locations where quiet operation is required. Furthermore, the reduced number of moving parts ensures high reliability and durability.

■ The absence of electrolytic capacitors in the main circuit board ensures a long lifespan.

■ The AC power cable features tracking protection, preventing tracking phenomena caused by dust even after long-term installation.

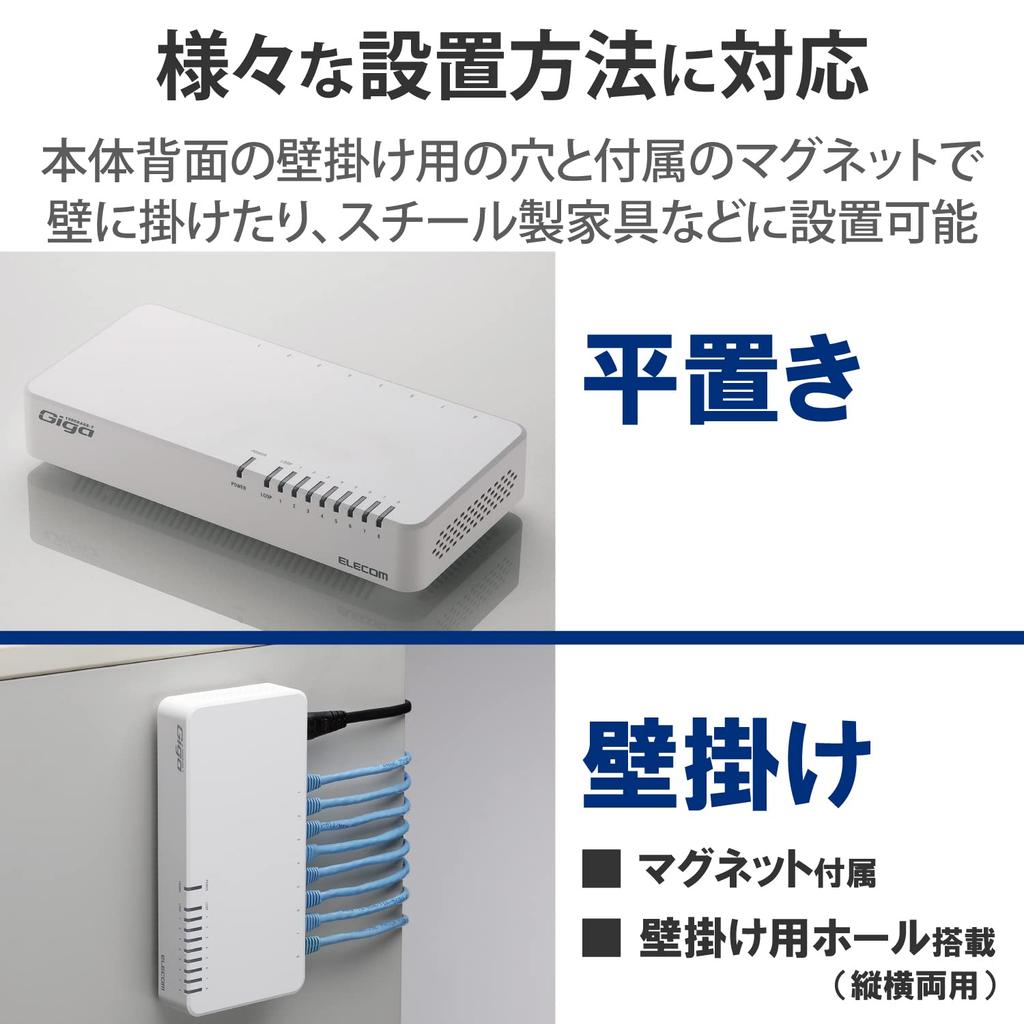

■ The compact design allows for flexible placement; it can be easily mounted horizontally, attached to steel desks or walls using magnets, and wall-mounted using the mounting holes on the back of the unit.

This 8-port hub with a built-in power supply and plastic casing features a power-saving function that cuts power supply to ports when not communicating, resulting in up to approximately 81% power savings*. *Measurement is based on comparing power consumption after 1 minute of data transfer from a load device to the hub, with all ports communicating and not communicating.

It includes a loop detection function to alert you to network loops that can affect network operation. A flashing LED indicator prompts you to quickly resolve network problems. The fanless design makes it ideal for use in bedrooms, offices, and other locations where quiet operation is required. Furthermore, the reduced number of moving parts ensures high reliability and durability.

The absence of electrolytic capacitors on the main circuit board contributes to its long lifespan.

For more details, please refer to the "Product Specifications" and "Product Description."
