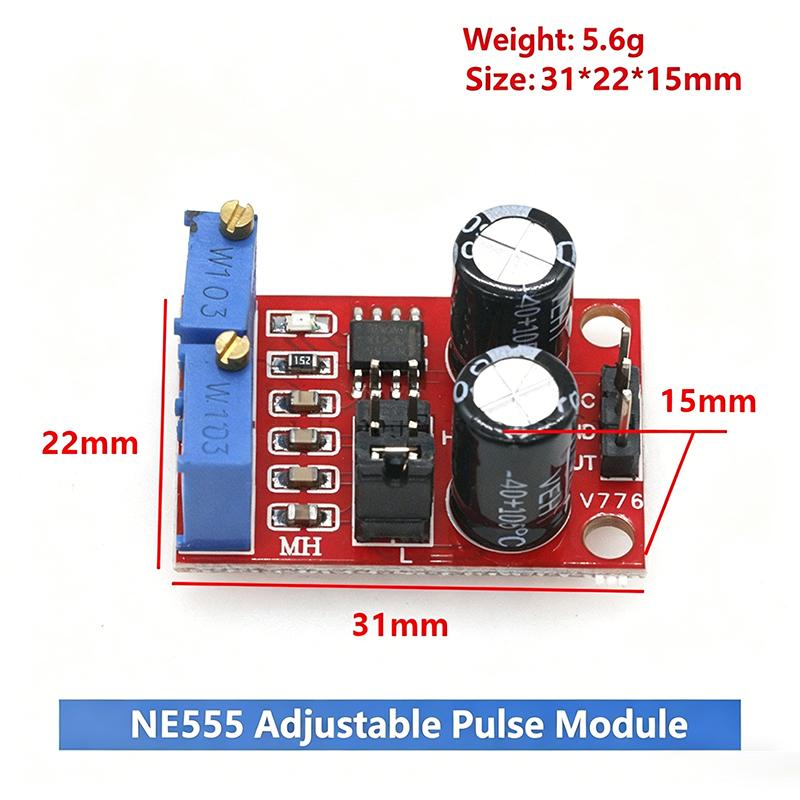

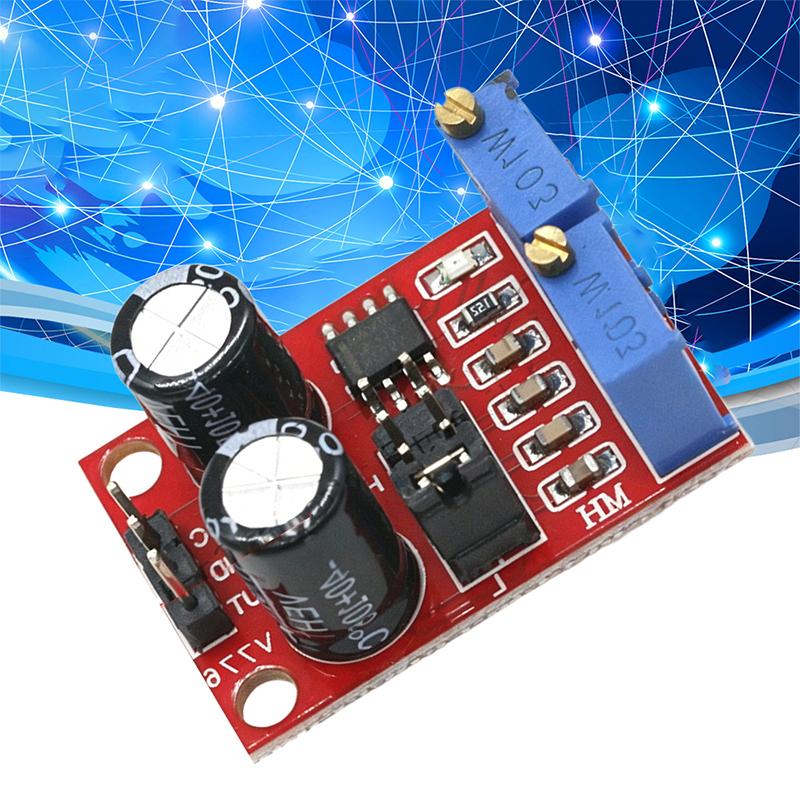

Ne555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal-Generator

Description Features: Size: 31mm * 22mm Main chip: NE555 Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around; Input current: >=100MA Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different) Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%) Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes); The output requency range is selectable: LF file: 1Hz ~ 50Hz IF file: 50Hz ~ 1kHz High-frequency file: 1KHz ~ 10kHz HF file: 10kHz ~ 200kHz The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency; The output frequency is adjustable: Period T = 0.7 (RA +2 RB) C RA, RB is 0-10K adjustable; Low profile when C = 0.001UF; IF stalls C = 0.1UF; High-frequency file C = 1UF; HF stalls C = 100UF; so buyers can calculate the frequency of the waveform. Application: As a square wave signal generator,generates a square wave signal used for experimental development. Used to drive a stepper motor for generating a square wave drive signal. Generate adjustable pulse for MCU. Generate adjustable pulse,to control circuitry associated. Package including: 1pcs NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
