Product Introduction
[Please refer to the instruction manual.]
[General Name]
Automatic Electronic Blood Pressure Monitor
[Warnings]
(1) Self-diagnosis of measurement results or treatment based on self-diagnosis
[This may lead to a worsening of symptoms.]
(2) Measurement on an arm with injury or undergoing treatment
[This may lead to a worsening of symptoms.]
(3) Measurement on an arm receiving intravenous infusion or blood transfusion
[This may lead to a worsening of symptoms.]
(4) Use near flammable or combustible gases
[This may cause ignition, fire, or explosion.]
(5) Use beyond the service life
[This may result in inaccurate measurements.]
(6) Use by an unspecified number of people in medical facilities or public places
[This may cause accidents or problems.] ]
【Product Specifications】
External Dimensions: Approx. 105 (W) x 87 (H) x 153 (D) mm
Weight: Approx. 310 g (excluding batteries)
Applicable Arm Circumference: 22~32 cm
Operating Environment Conditions: +10~+40 ℃ / 15~90%RH (non-condensing) / 800~1060 hPa
【Precautions for Use】
1. Individuals with severe circulatory disorders or blood diseases should use this product under the guidance of a physician.
2. If an abnormality occurs, remove the cuff from the arm.
3. Do not use on infants or individuals unable to express their wishes.
4. Do not inflate the cuff above 300 mmHg.
5. Do not use for purposes other than blood pressure measurement.
6. Do not use cuffs other than the dedicated cuff.
7. Do not use mobile phones or smartphones near the blood pressure monitor.
8. Do not disassemble or modify the main unit or the dedicated cuff.
9. Insert the battery correctly, ensuring the positive (+) and negative (-) terminals are correctly aligned.
10. Use the specified battery.
11. Remove the battery when not in use for extended periods.
[Manufacturer and Distributor Name]
Manufacturer and Distributor: Omron Healthcare Co., Ltd. (br) Phone: 0120-30-6606 (Omron Customer Service Center)
[Purpose of Use or Effect/Benefit]
To measure systolic and diastolic blood pressure non-invasively for health management.
How to Use
① Wrap the cuff. Place the cuff on your arm so that the air tube faces the palm. Wrap it 1-2 cm away from the hollow on the inside of your elbow. Wrap it snugly so there are no gaps.

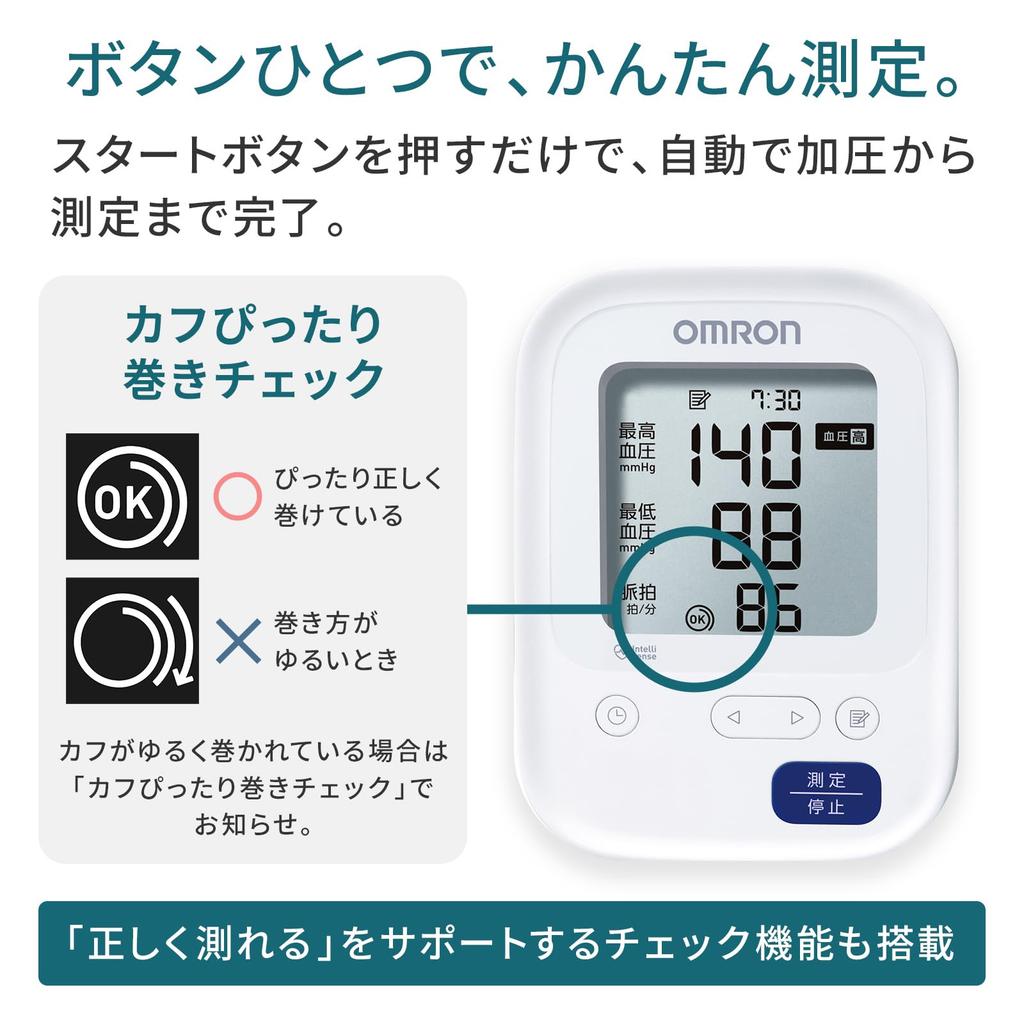

② Check if it is wrapped correctly. An OK mark will appear on the screen if it is wrapped correctly. Make sure the tube passes through the middle of your arm. You can measure on either arm, but always measure on the same arm.
③ Press the button to start measurement. Pressing the [Measure/Stop] button turns on the power and automatically starts measurement. Pressing the [Record Recall] button allows you to check the measured records.
Regulated Medical Device
301AABZX00022000
●Dimensions Main unit (excluding cuff): Approx. W 105 x H 87 x D 153 mm Cuff: Approx. W 145 x L 466 mm, Tube length 610 mm ●Weight Main unit (excluding cuff): Approx. 310 g (excluding batteries) Cuff: Approx. 130 g
●Power supply: Dedicated AC adapter (Input: AC100 V, 50/60 Hz, 10 VA) 4 x AA alkaline batteries (DC 6 V 4 W)
●Accessories: Dedicated cuff (Model HEM-CR24-B), Dedicated AC adapter (HCR-710Y only), Trial batteries (4 x AA alkaline batteries), Instruction manual (with warranty), Medical device information sheet
