35db 1MHz-700MHZ RF Power Amplifier 3.2W HF VHF UHF FM Transmitter 15V DC

Name: 35db 1MHz-700MHZ RF Power Amplifier 3.2W HF VHF UHF FM Transmitter 15V DC
SKU: 69f15da4a1602b0178abe4f6
Price: 935 CZK
Availability: InStock

Aktuální cena

Cena 935 Kč

včetně DPH

BarvaJako na obrázku

Doručení do ČR 🇨🇿

7–14 pracovních dnů · 85 Kč

Vaše platby a soukromí jsou v bezpečí

Vrácení peněz při nedoručení

Záruka kvality

Bezpečná logistika

Ochrana soukromí

Bezpečnost a soulad s předpisy

Popis

35db 1MHz-700MHZ RF Power Amplifier 3.2W HF VHF UHF FM Transmitter 15V DC

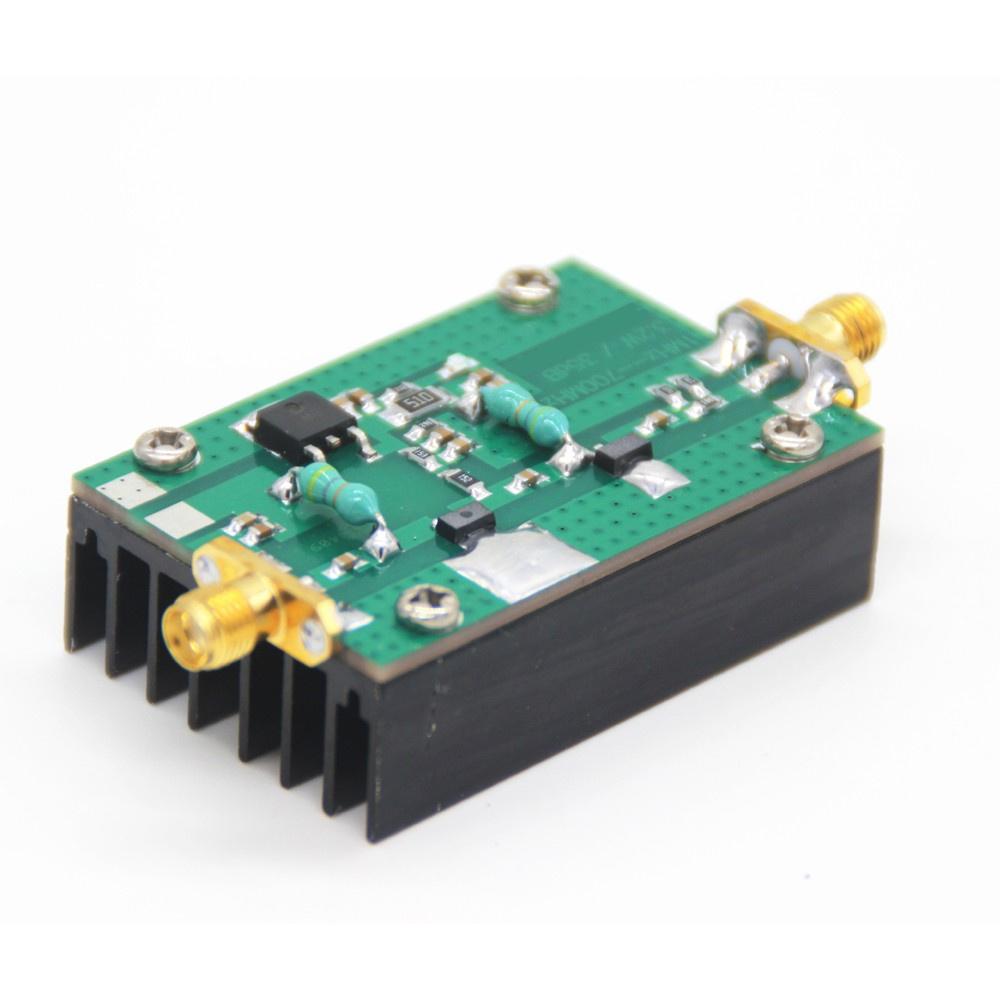

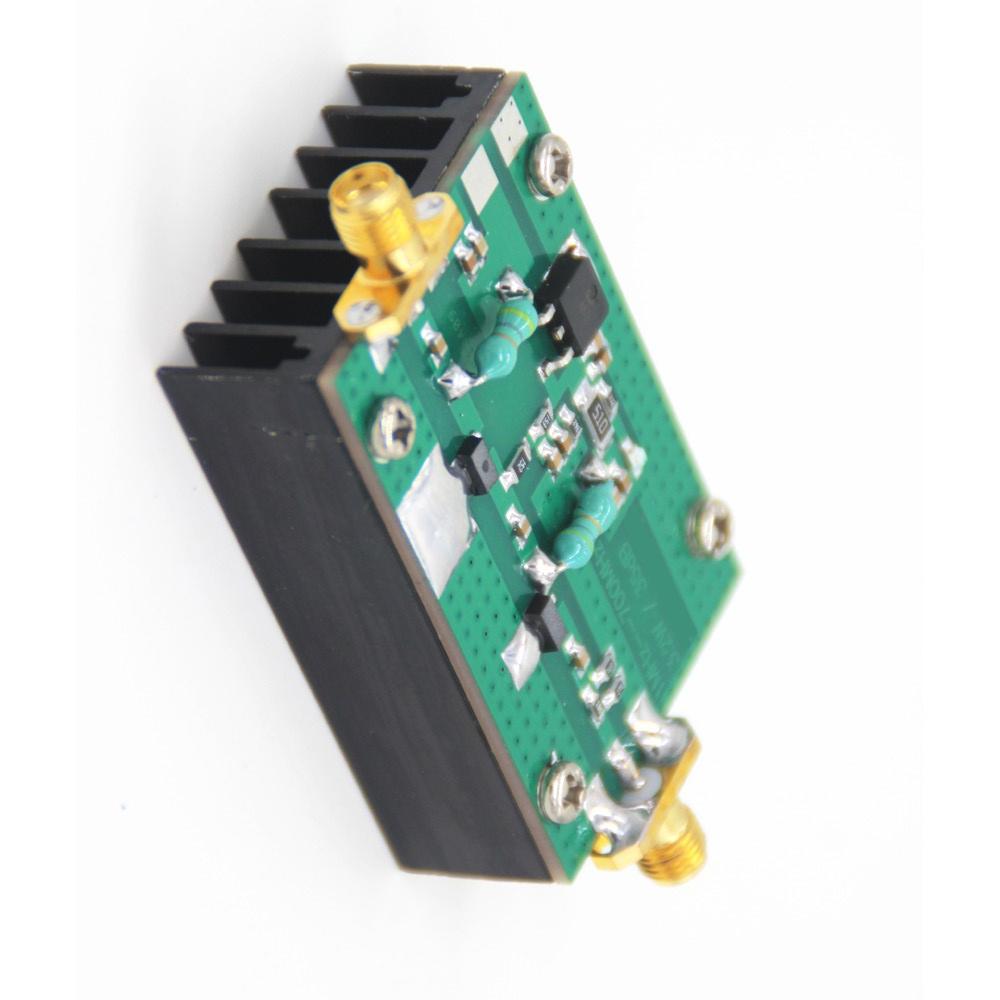

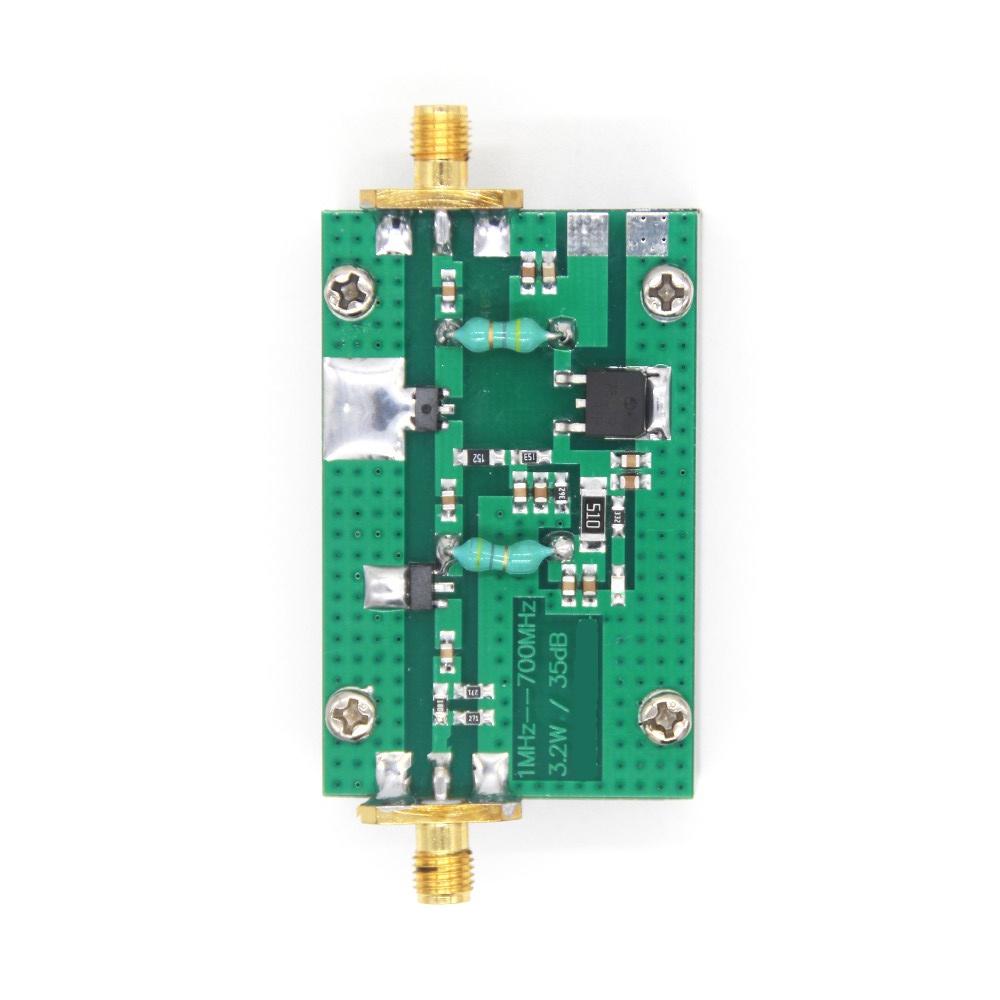

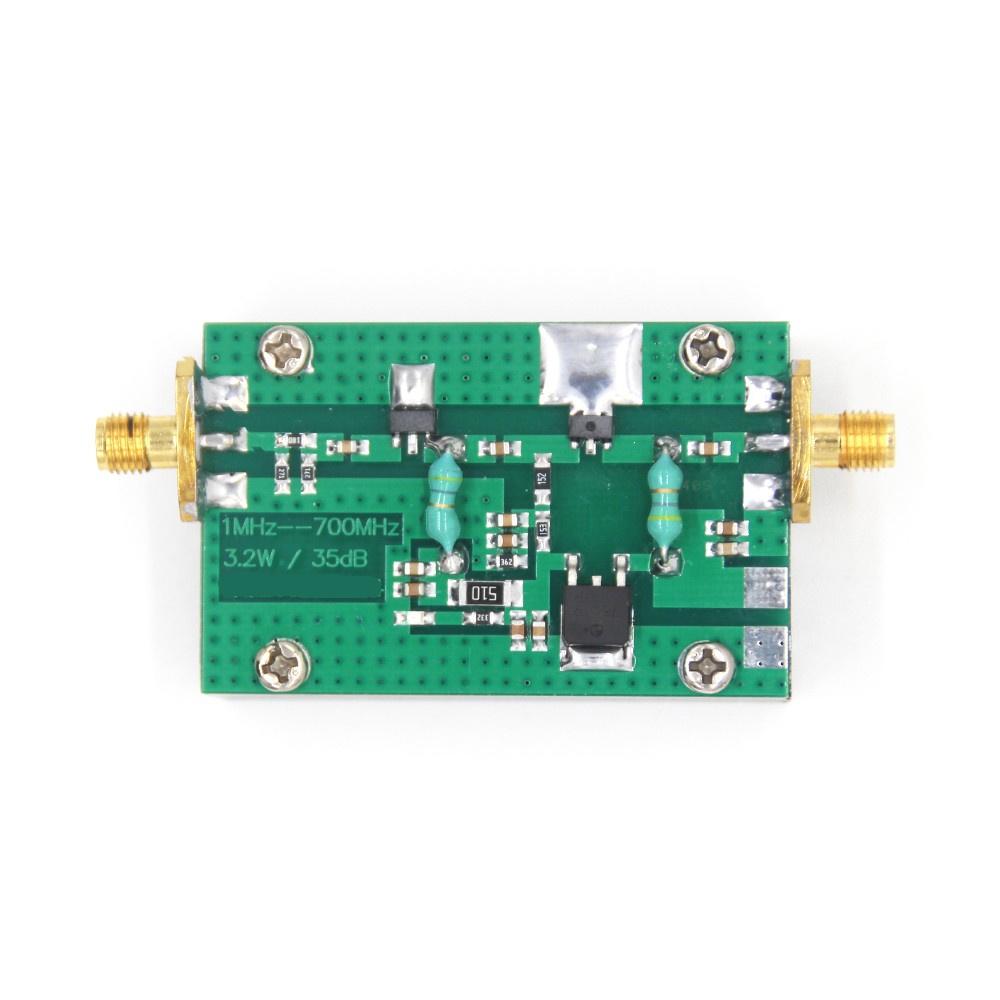

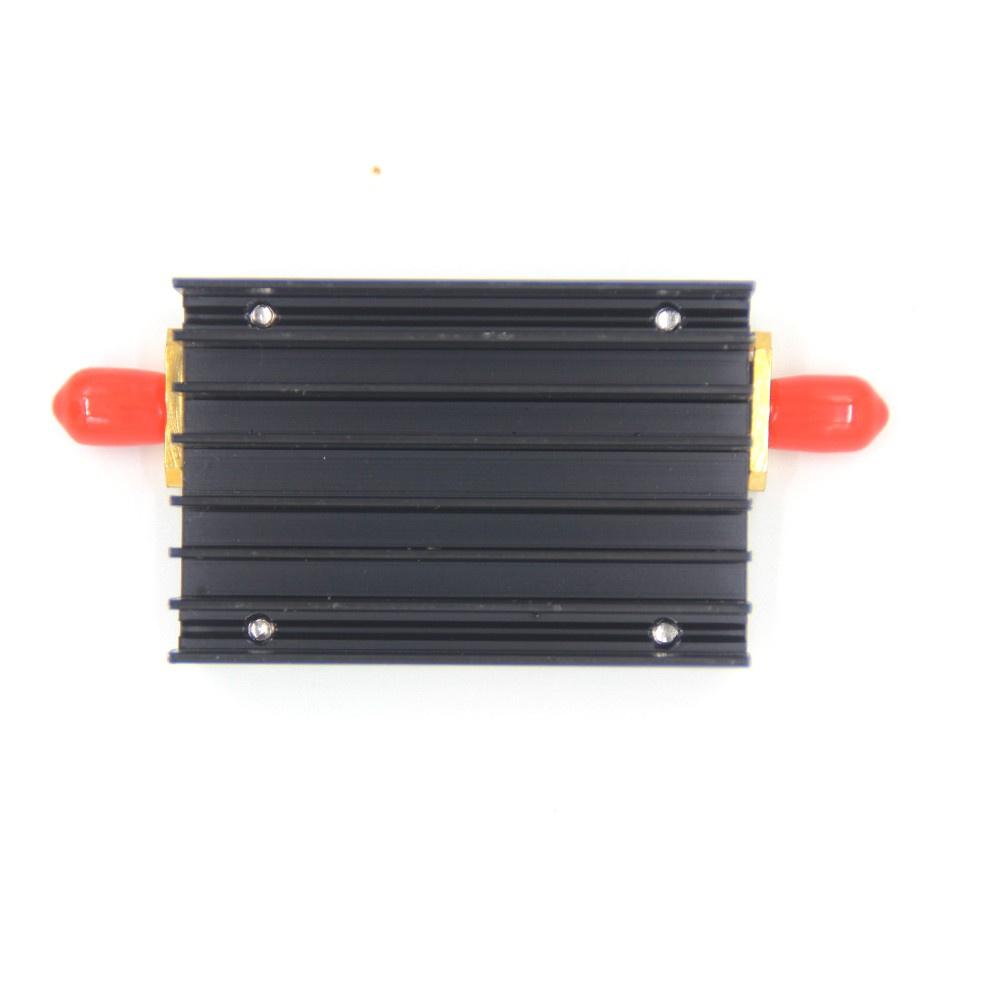

This compact RF power amplifier is ideal for boosting signals across HF, VHF, and UHF bands. Operating within a wide frequency range of 1MHz to 700MHz, it offers a maximum output power of 3.2W and a typical gain of 35dB. Designed with precision for optimal performance, it includes a large heat sink for improved cooling.

Key Features: - Operating Frequency: 1MHz - 700MHz - Gain: Up to 35dB (see S21 curve for exact frequency-based performance) - Output Power: Up to 35dBm (3.2W @ 50Ω) - Input Signal Level: 0dBm (LF), 2dBm (HF) - Input/Output Impedance: 50Ω - Power Supply: +15V DC, typical current 450mA - Dimensions: 56 × 37 × 15mm (with heat sink) - Note: Do not operate without proper input signal or without a connected load.

Package Includes: 1 x RF Power Amplifier Module
