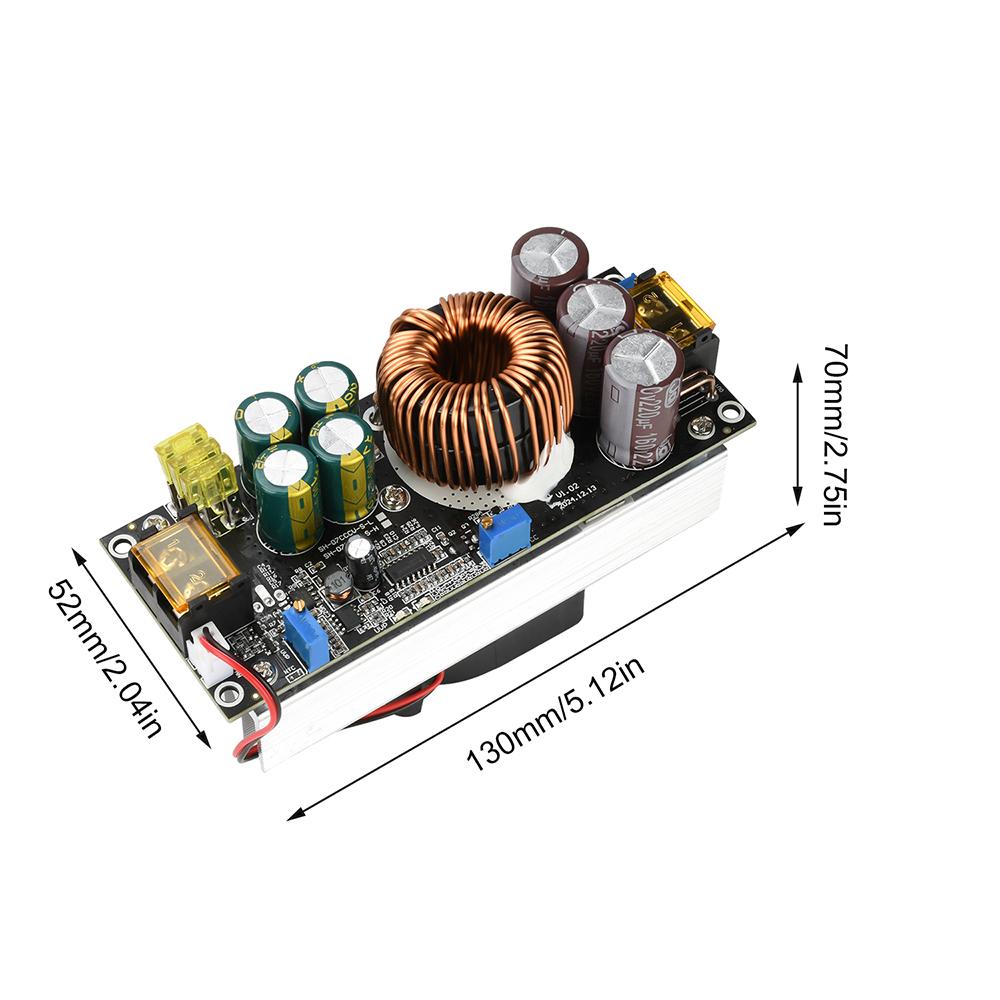

1800W DC-DC Boost Converter 14-60V/14-85V to 14-90V/14-120V Step Up Power Module with Multiple Protections for Solar System

1800W DC-DC Boost Converter 14-60V/14-85V to 14-90V/14-120V Step Up Power Module with Multiple Protections for Solar System

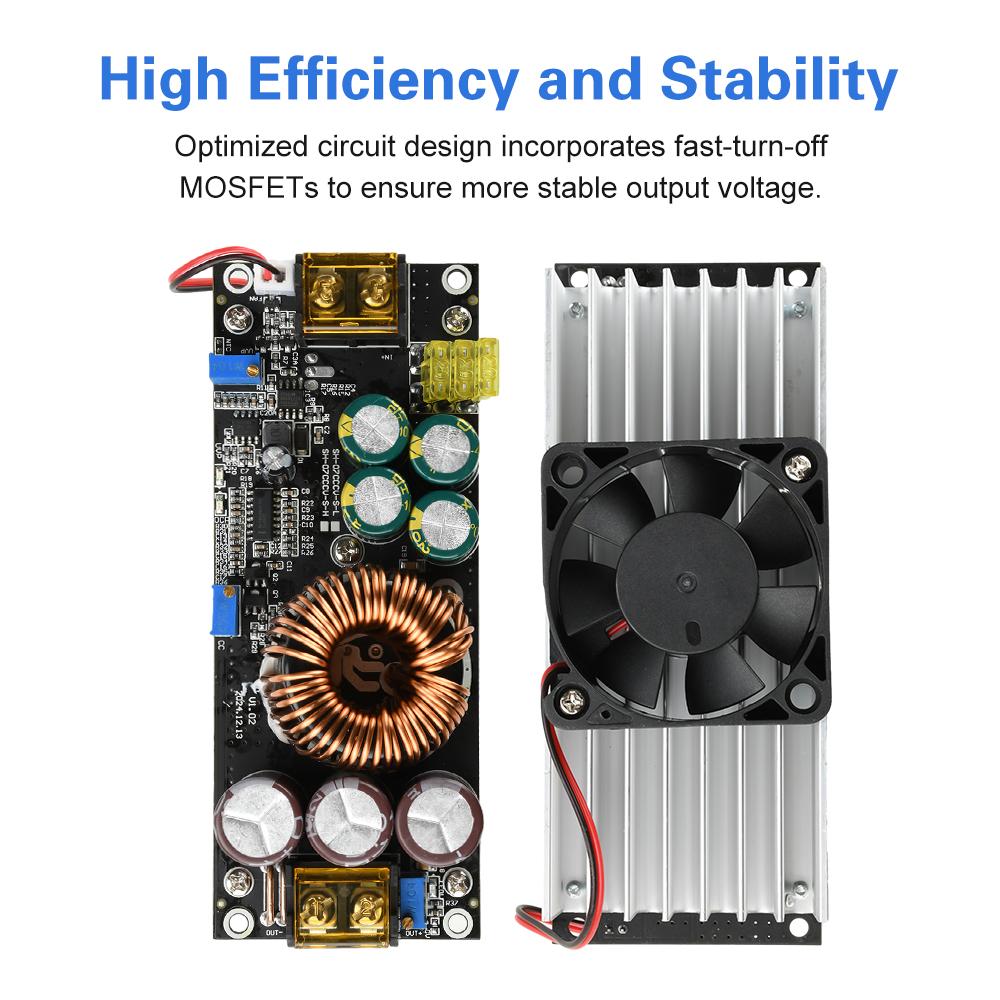

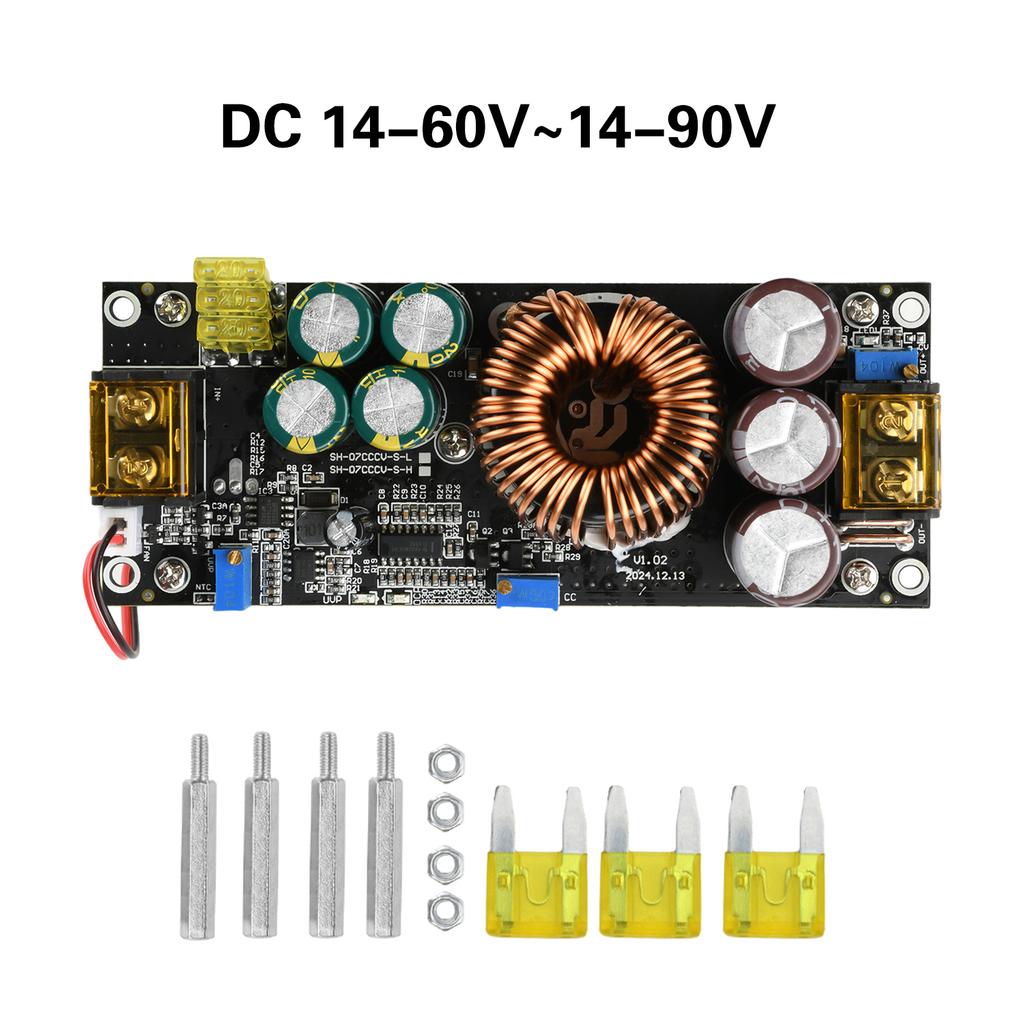

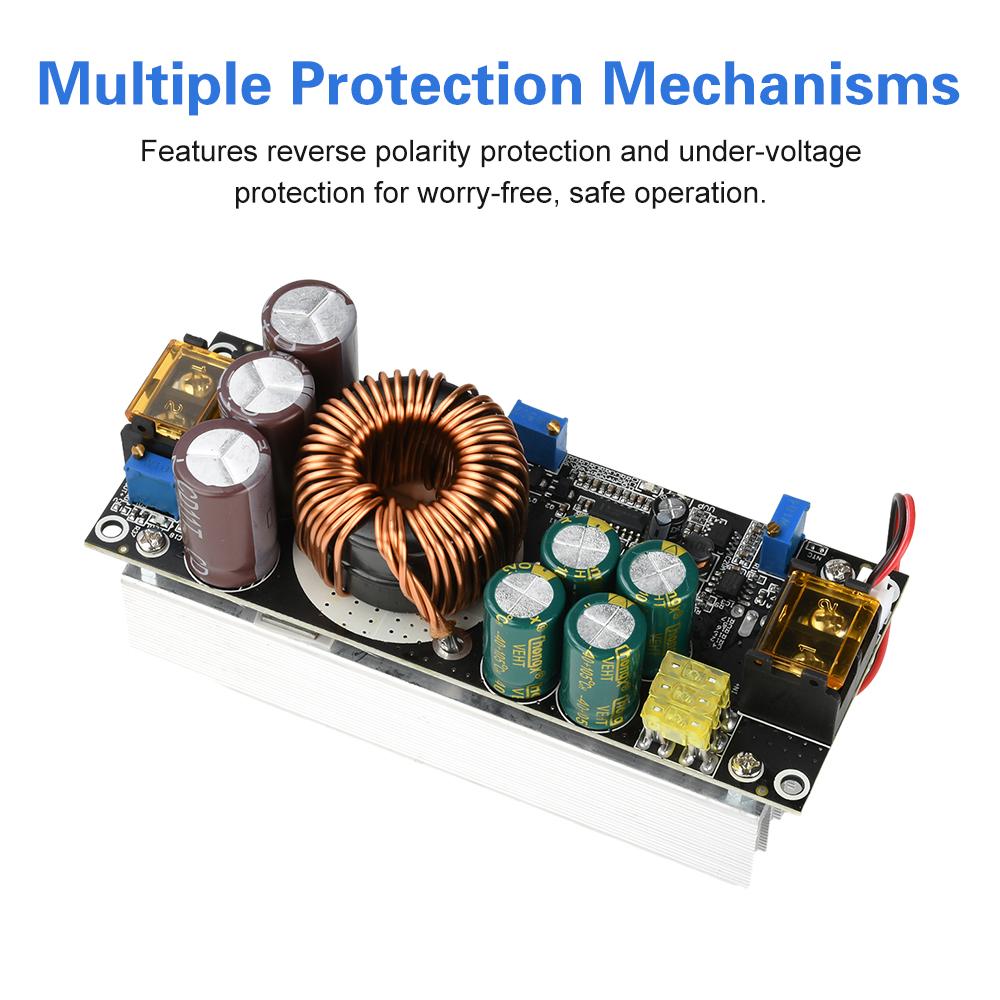

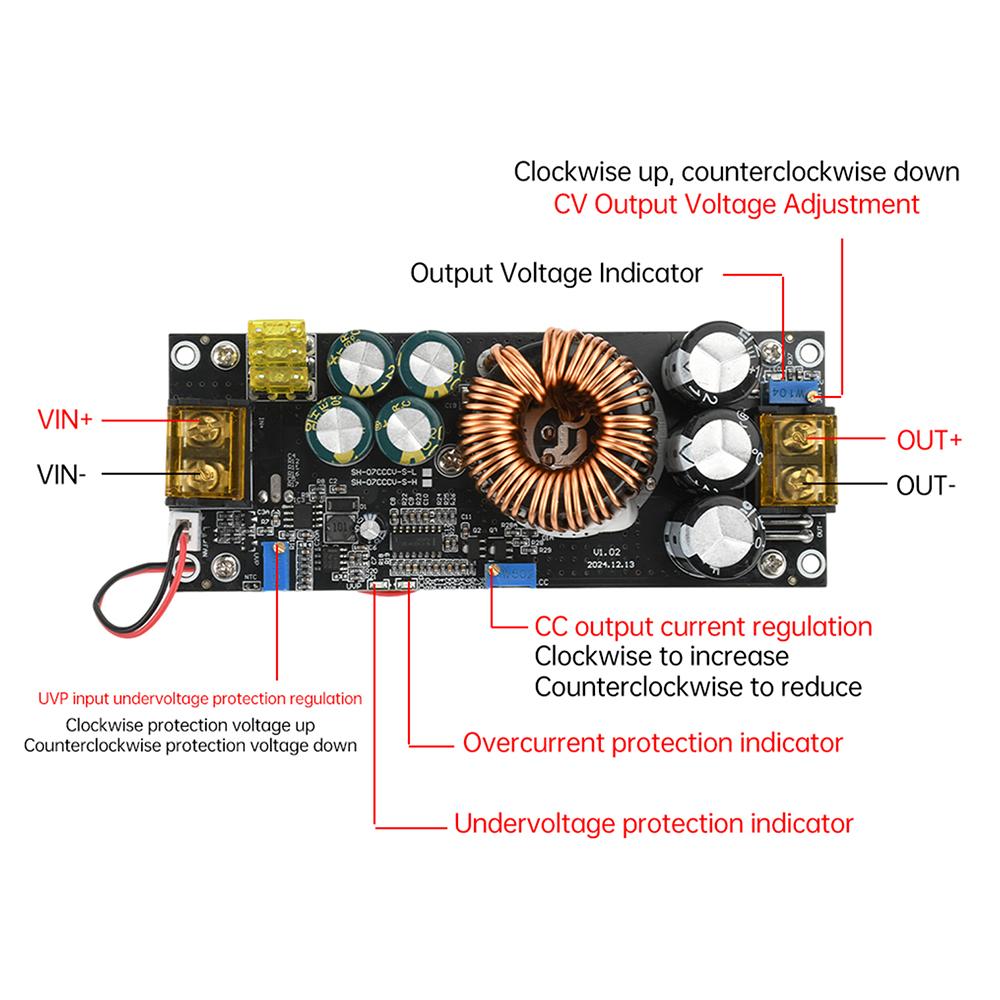

Features: 1.Electric power supply: Support DC14-85V to 14-120V import/export, suitable for multiple applications. 2. High efficiency design: improved power line design, enhanced MOS tube fast determination, secure output power modification design 3. Precision electric power control: CV electric power control, security Fixed size effect 4.Multiple protection system: Includes import protection and defect protection, guarantees no safety in use. 5. Convenient design: maintenance piece for distribution, self-propelled replacement, convenience for use Specifications: Product name: 1800W power source model Imported electricity: Subsection A: DC 14-60V Subsection B: DC 14-85V Clause C: DC 14-85V Exported electricity: Subsection A: DC 14-90V (±5V) Clause B: DC 14-120V (±5V), output 120V, input voltage 20V or more Clause C: DC 14-90V (±5V) Import current: 40A (Max) Output power: Section A: 1.5-22A (±0.5A) B section: 1.5-20A (±0.5A) Section C: 1.5-22A (±0.5A) Import defective packaging: Subsection A: 10-60V (±5V) Subsection B: 1 0-68V (±5V) Section C: 10-68V (±5V) Wind fan opening temperature: 40 degrees Import protection: Yes Typical efficiency (input/output difference small efficiency improvement): 90%-96% Size (including wind fan): 130*52*70mm Note: 1. Output voltage is 120V, input voltage is 20V or more. 2.No maximum or minimum usage required for importing and exporting electricity. 3. The maximum input power of the super-power source without working power, the calculation method of work power: the output success rate is excluded from the input power of 1.06 (1.06 power consumption). For example: the 1200W A condition example, the input power 15V, the output 48V, the output power 5A, 48V*5A/15V*1.06=16.96A, the working current at this time is 20A, it is normal operation. As a result, the power consumption is 48V 7A, 48V*7A/15V*1.06=23.75A, at this time, the maximum input voltage of the power source is 20A, which is impossible to use. 4. Efficiency of operation: import in and out, small efficiency over high, difference in large efficiency over low, result in import 20V, output 120V. At this time, the working efficiency is the lowest, and the efficiency is less than 90%. The efficiency of the imported power source is more than 1.5 times that of the previous one. 5. Prohibited short circuit electrical current. 6. Prohibited ultra-high voltage charging. 7. The fan is warm, and the temperature of the heater is 40 degrees or more. Commentary on the success rate: For example, if the power source is 1800W, the power source is limited to 40A, and the low power is 1800W, and the power source is 12V. , 12V * 40A = 480W, additional power consumption during switching, 12V input, maximum output 440W left and right, and no power supply required, no extra 360W required when importing 12V. Maximum efficiency of the power source must be 48V or higher. Package Included: Electric power model x1 Arrangement x1 (Raidashira, protection piece)
