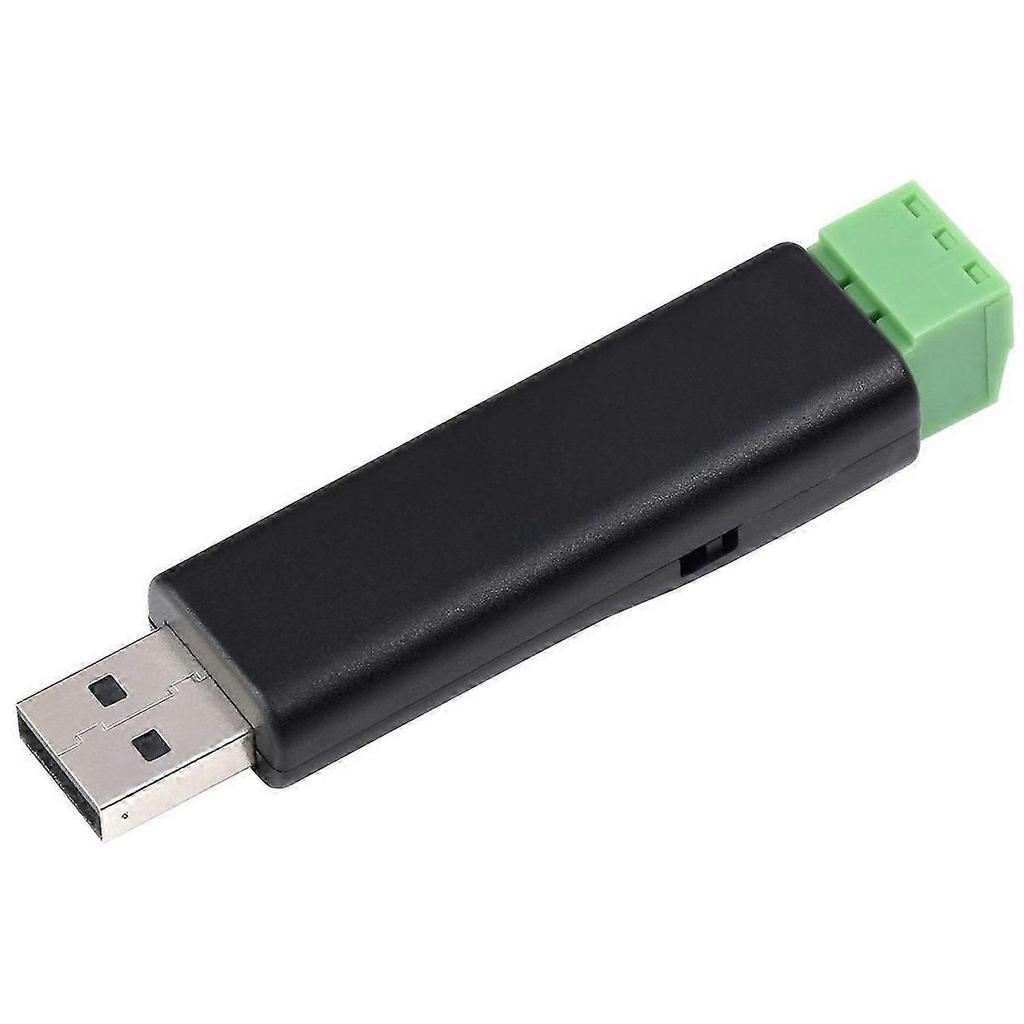

Waveshare USB To CAN Adapter Analyzer Model A, STM32 Chip Solution, Multiple Working Modes, Multi-System Compatible less

Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)

CAN baud rate is configurable in the range of 5Kbps-1Mbps

Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode

Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending

Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data

Data can be saved as TXT or Excel

Supports CAN bus detection for status checking

Sending/receiving CAN data with time scale, allows sequentially displaying

Baud rate of USB virtual COM port is configurable in the range of 9600 - 2000000bps (2000000bps by default)

Supports setting working parameters by configuration software or serial command, can be saved after power off

Adopts STM32 chip solution, stable and reliable communication

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit

Comes with master computer software for Windows system, easy to use

Easy secondary development, just need to modify the sending and receiving commands

Colour:Black

Material:Plastic

Package Contents:

1 * USB to CAN Adapter Analyzer

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
