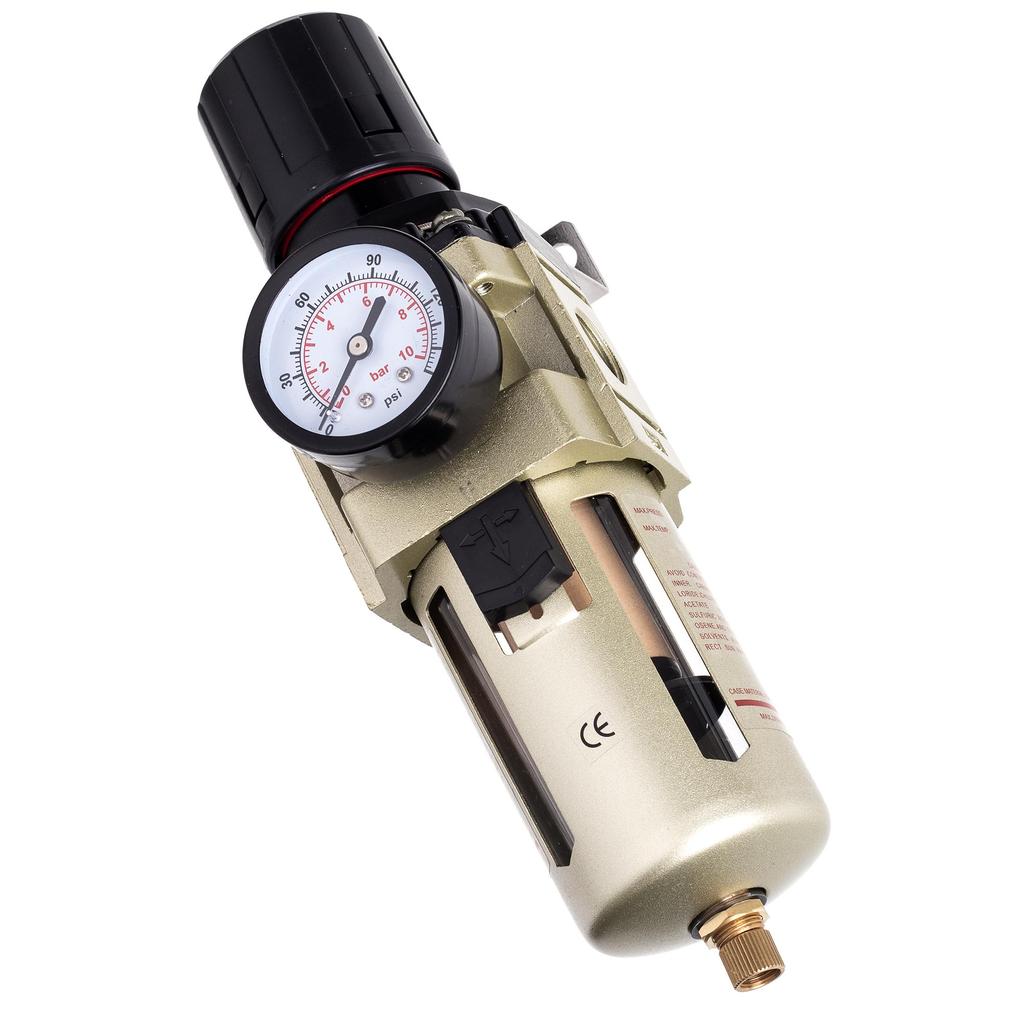

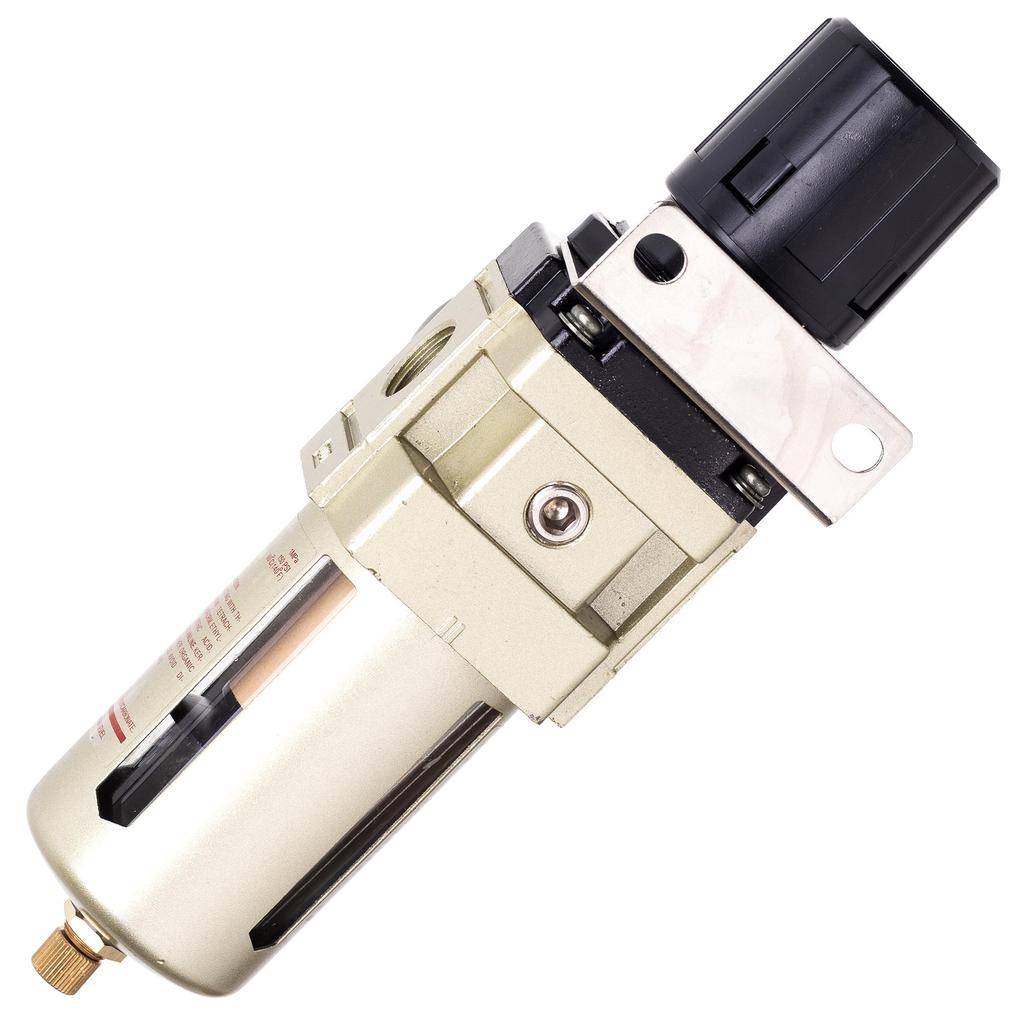

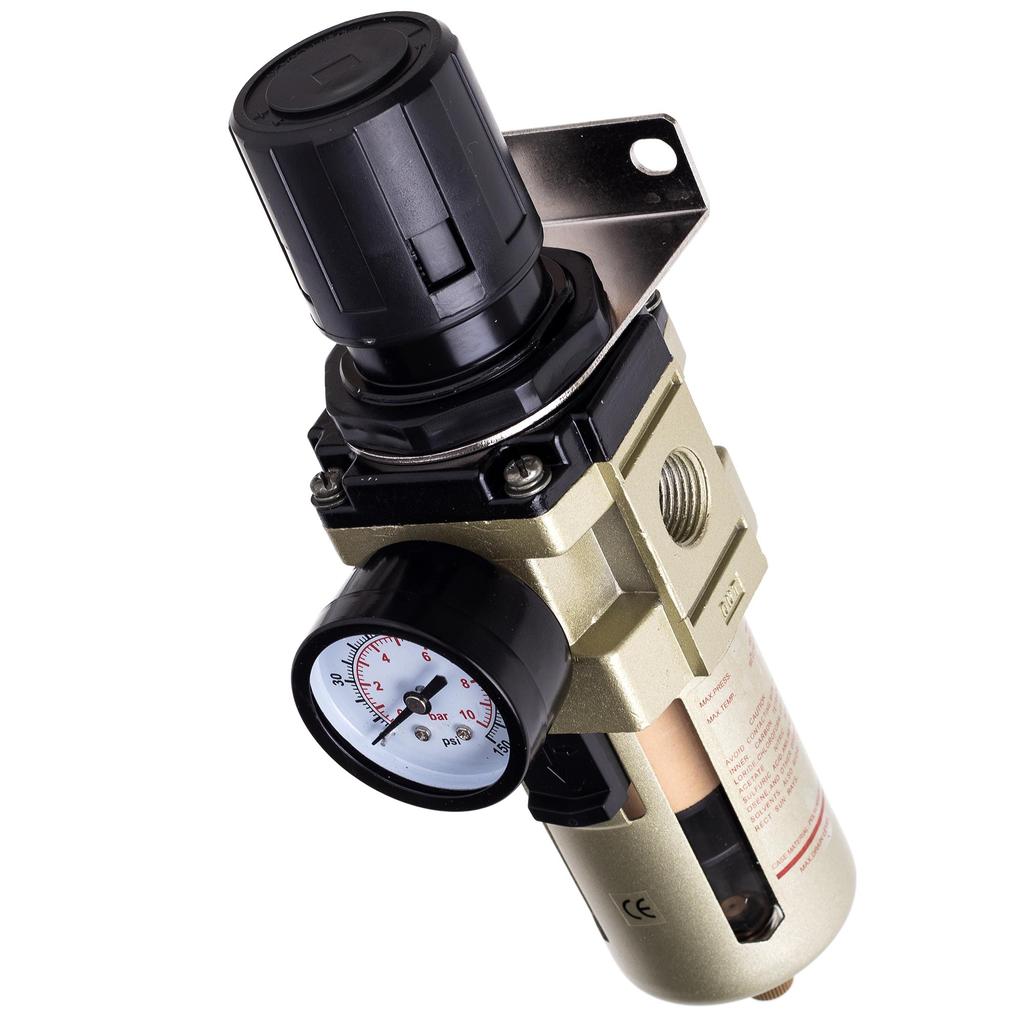

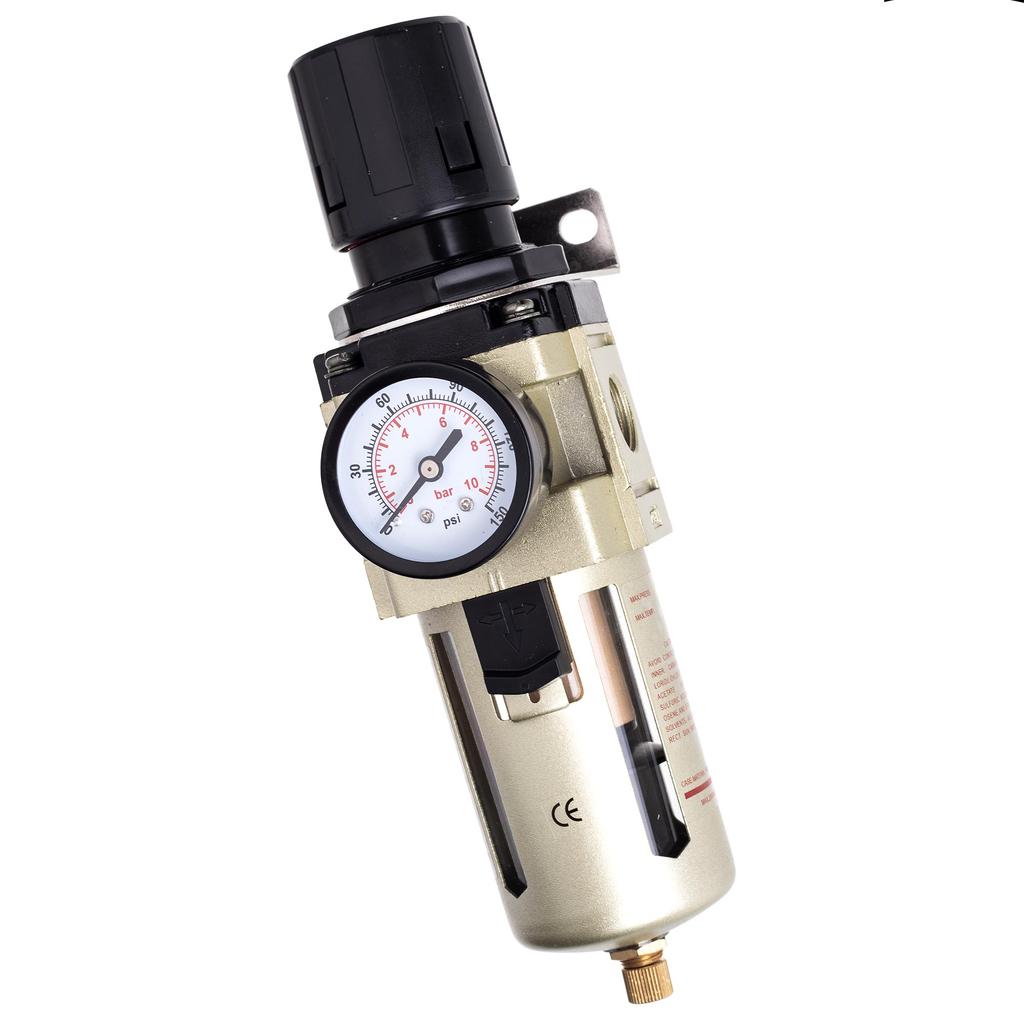

Filter with Air Reducer 1/2 Inch Pneumatic Manometer 4000L

Air reducer with 1/2 inch filter for AW4000-04 compressor

The advantage of the reducer is a good and durable construction, readable pressure gauge, a detachable hanger for screwing the reducer on the wall, regulator lock (top - bottom). It is used in 1/2" pneumatic installations and is an essential element.

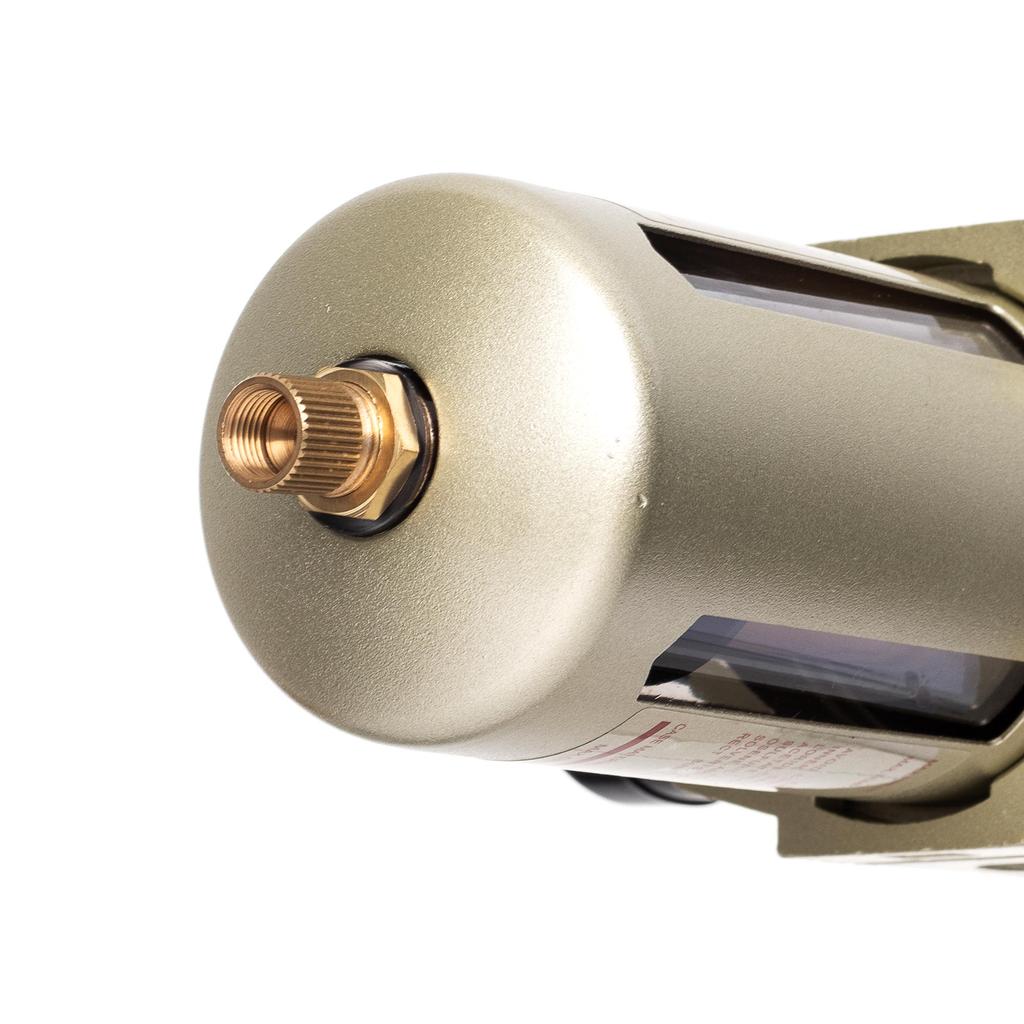

The filter is used to dry the air. It is an irreplaceable element of every pneumatic installation. It also separates oil and other contaminants. Draining the water is done by pulling the valve located at the bottom of the filter.

• Height of the set approx.: 260 mm

• Width: 75 mm

• Regulation range: 0.5 to 8.3 bar

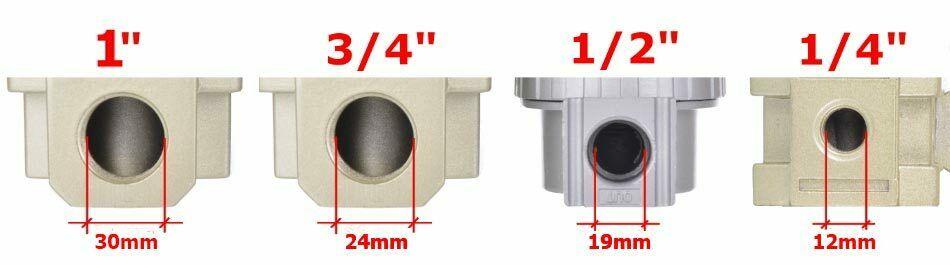

• Threads: 1/2" (approx. 19 mm internal)

• Maximum inlet pressure: 10 bar

• Nominal flow: 4000 l/min

• Filtration 0.04 mm

• Tank capacity: 45 ml

• Operating temperature: up to 60 oC
