Engine Oil Pump Pickup Pipe Aluminium FKM Seal for CDTI TTID Vauxhall Opel Saab

Description:

OIL PUMP PICKUP PIPE ALUMINIUM FKM SEAL FOR VAUXHALL OPEL INSIGNIA ZAFIRA ASTRA CASCADA 2.0 CDTI SX4 SAAB 9-5 2.0 TTID

Features:

Opposite to the version (not bolted), this one does not reduce the cross-section of the oil flow.

Oil Pump Pickup Pipe seal occurs as an O-ring that is situated between the oil pump and the pickup pipe in the Opel Insignia 2.0 CDTI engine. It's main task is to fully seal the connection between them. However, with the passing of time, the gaskets hardens and allows the oil to pass trough, creating a leakage that causes the lubrication pressure to drop. This may lead to a critical enginge malfunction.

Our aluminum sleeve-gasket that connects the oil pump to the pick up pipe replaces a defective Oil Pump Pickup Pipe OE gasket that leads to an engine failure. The new sealing sleeve creates a permanent connection between the Oil Pump Pickup Pipe and the oil pan, which takes care of the manufacturing defect of that engine . It does not undergo deformation process at all like the OE seal happens to do so. The set includes fkm O-rings, a material that is temperature and oil resistant. The process of replacing the old gasket is simple, you just have to remove the old one and replace it with our sleeve.

The corrected part was used in the B20DTH (LFS) 2.0 CDTI 170 KM engine equipped with the Adblue system.

The difference between them is due to the different construction of the connection of the oil pump - oil pump pickup pipe.

Specifications:

Material: Aluminum

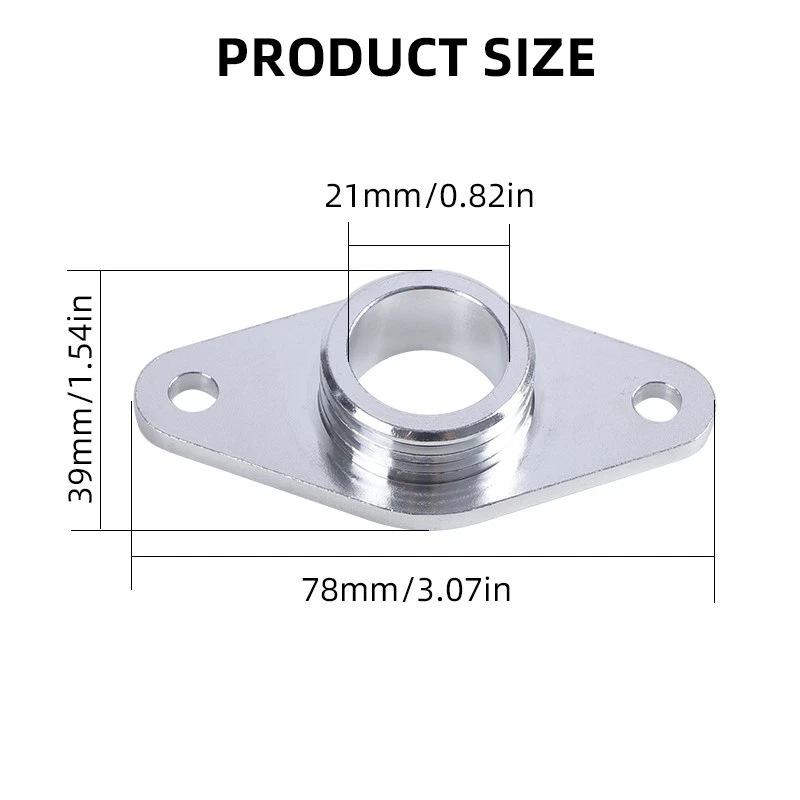

Size: As picture

Application:

For Opel / Vauxhall Insignia A (2009-2017)

For Opel / Vauxhall Cascada (2013-2018)

For Opel / Vauxhall Astra J (2009-2015)

For Opel / Vauxhall Zafira C (2012-2018)

For Malibu (V300) 2.0D, engine LBS (2012->)

For SX4 (EY, GY) 1.6 DDiS, engine D16AA 120 (2013->)

For SX4 (JY) 2.0 DDiS, engine D20AA 135 (2009->)

For Vitara (LY) 1.6 DDiS, engine D16AA 120 (2015->)

For Saab 9-5 (YS3G) 2.0 TTiD, engine A20DTR 190 (2010-2012)

For Saab 9-5 (YS3G) 2.0 TTiD, engine A20DTH 160 (2010-2012)

For Saab 9-3 (YS3F) 1.9 TTiD, engine Z19DTR 180 (2008-2012)

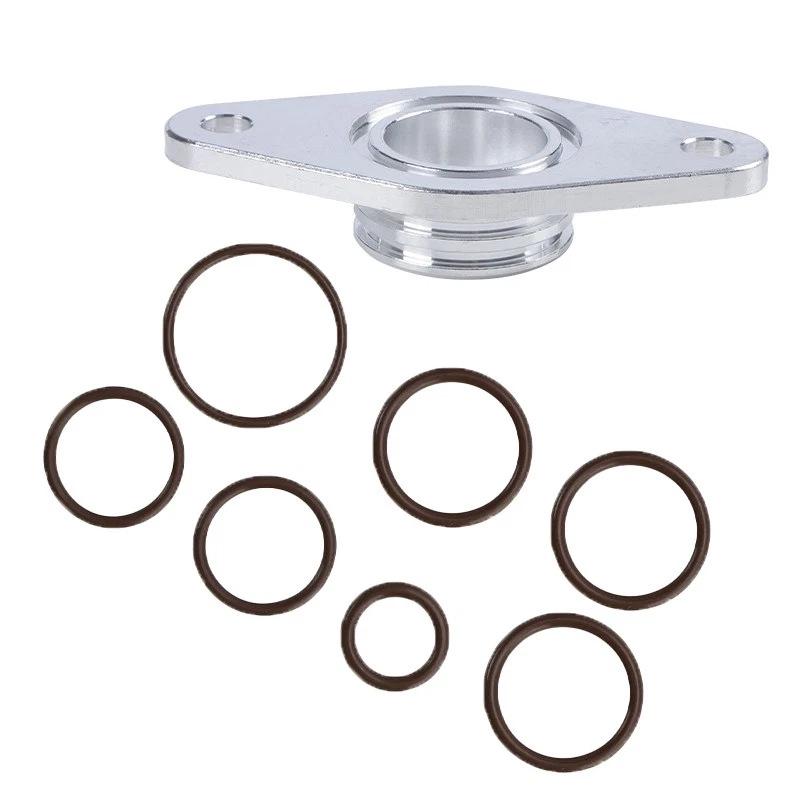

The set contains:

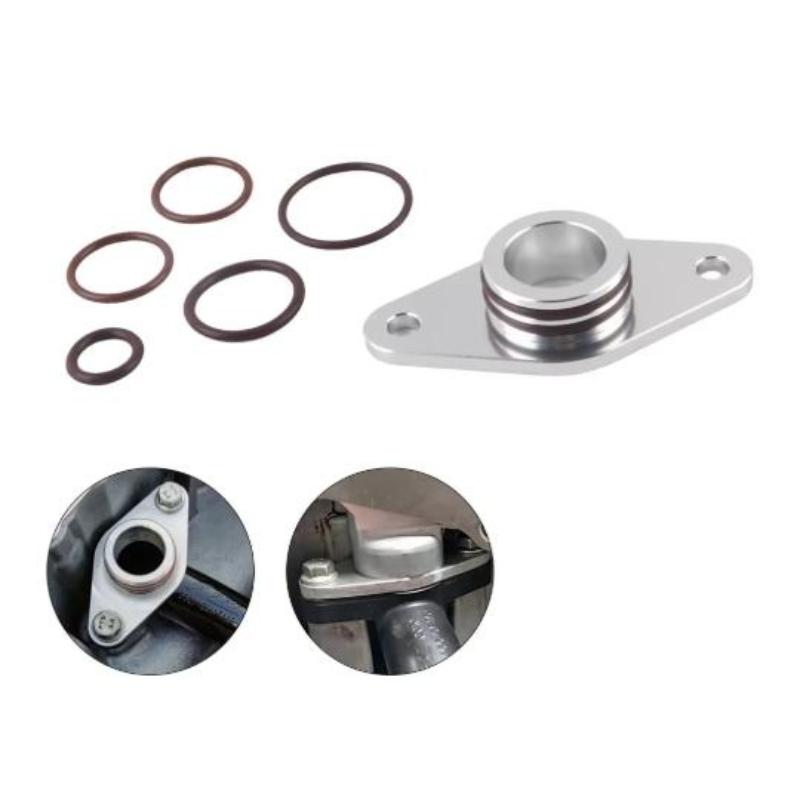

1 x sleeve-gasket (aluminum)

7 x FKM O-ring

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.

Brand Name: NONE High-concerned chemical: none Origin: Mainland China
