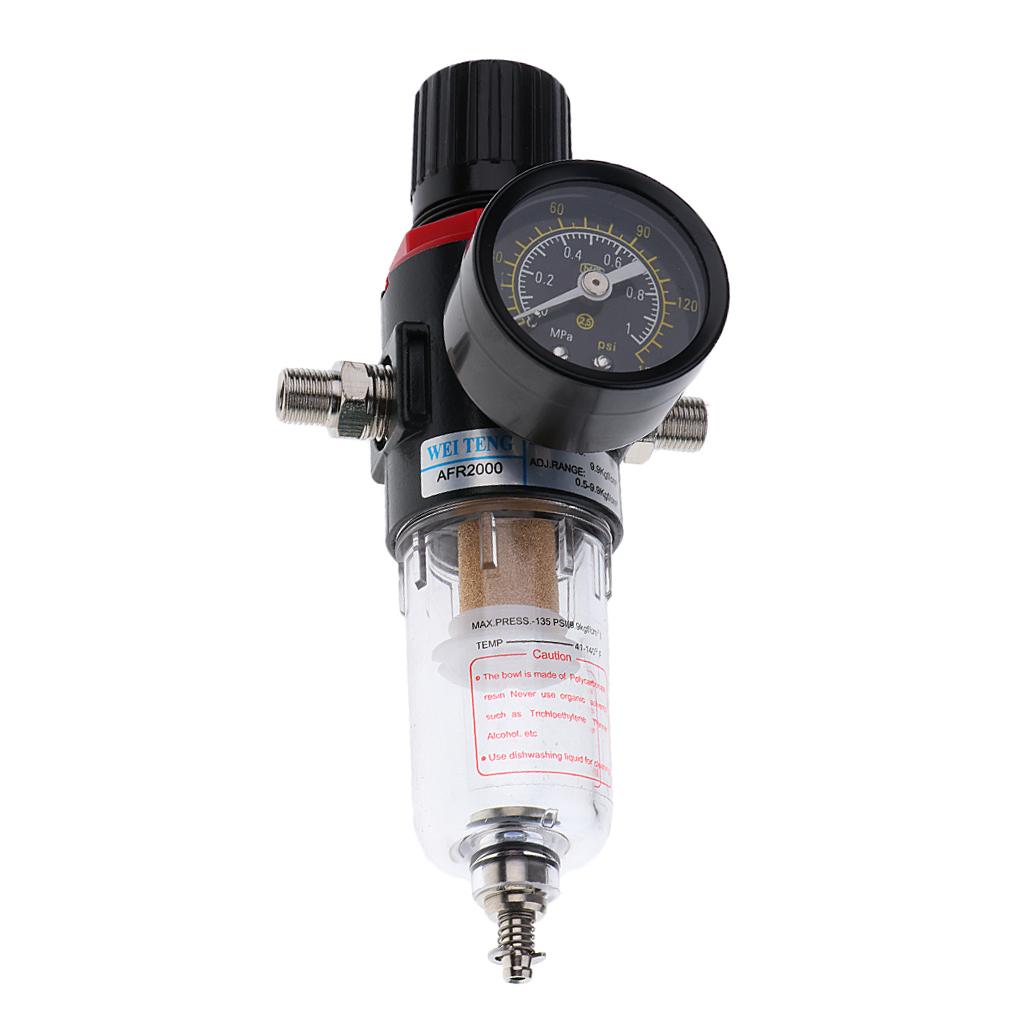

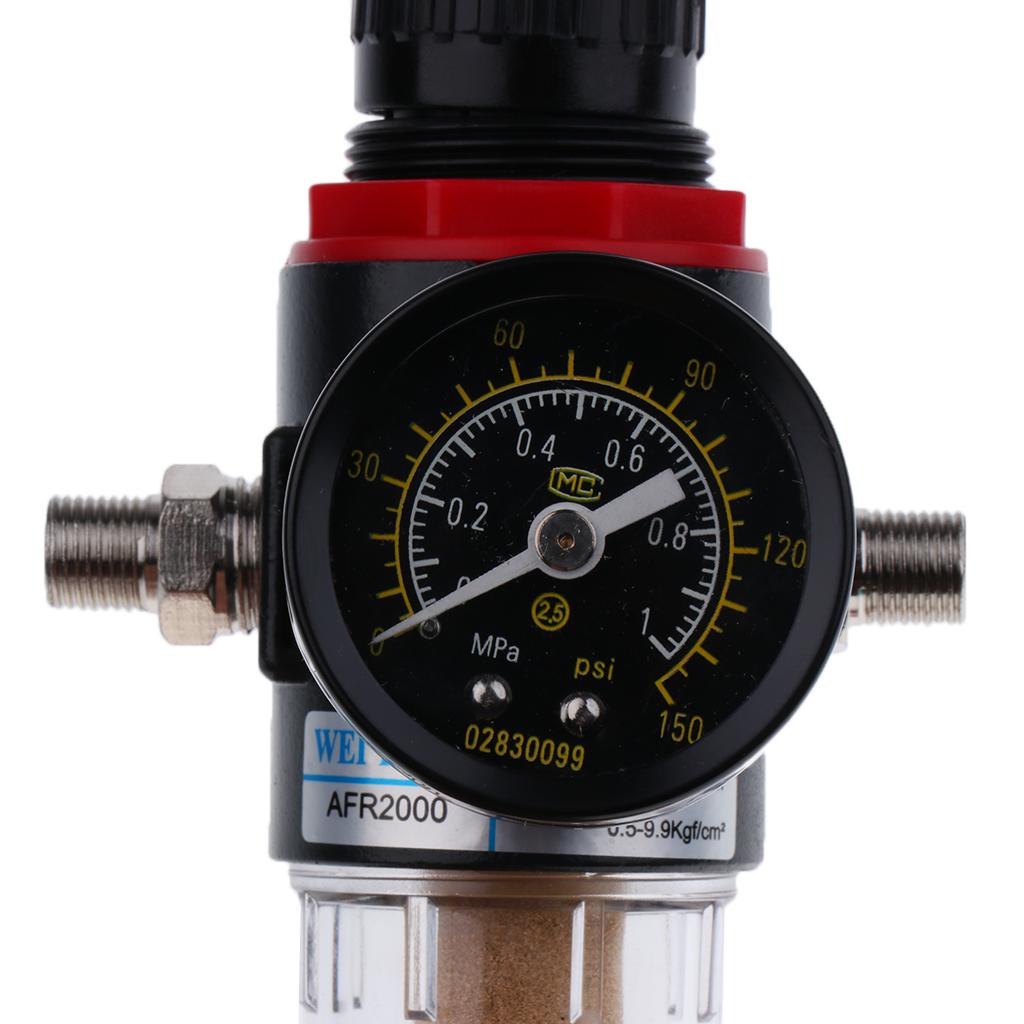

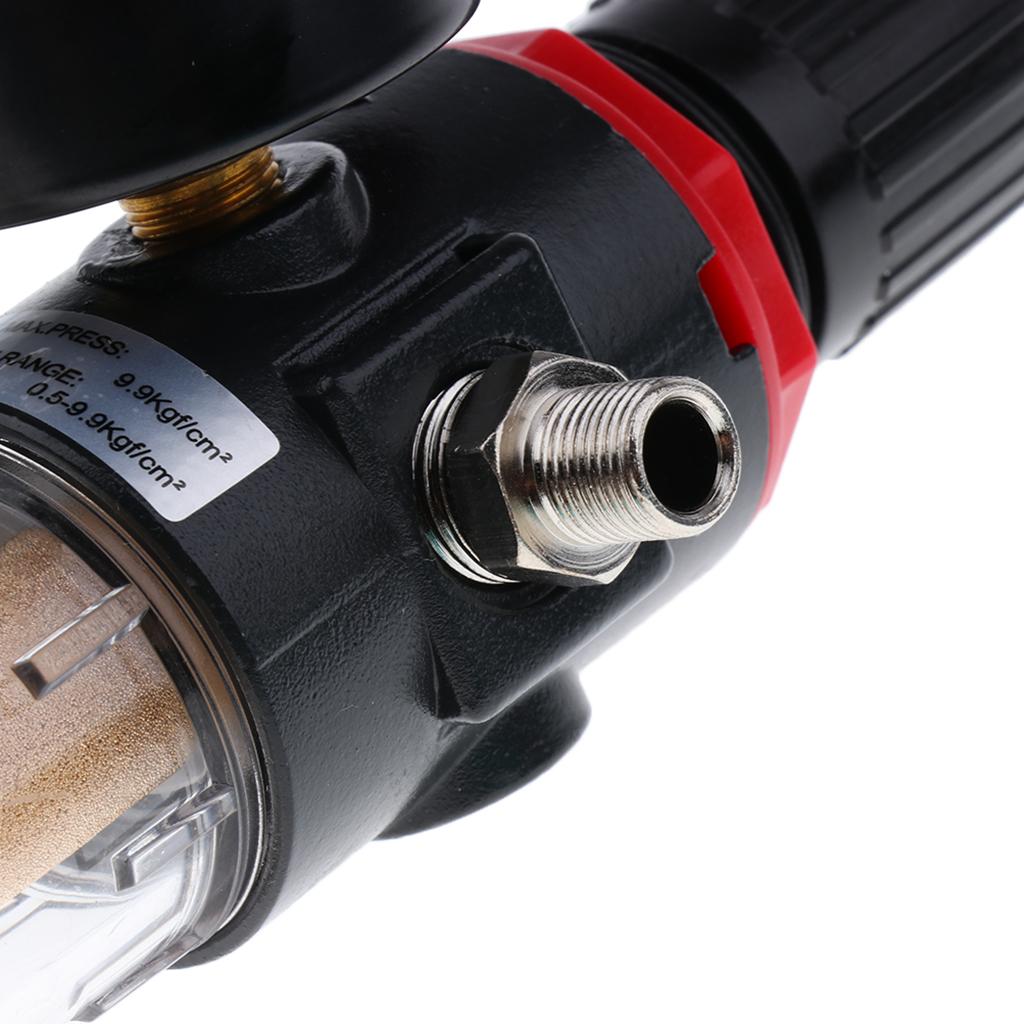

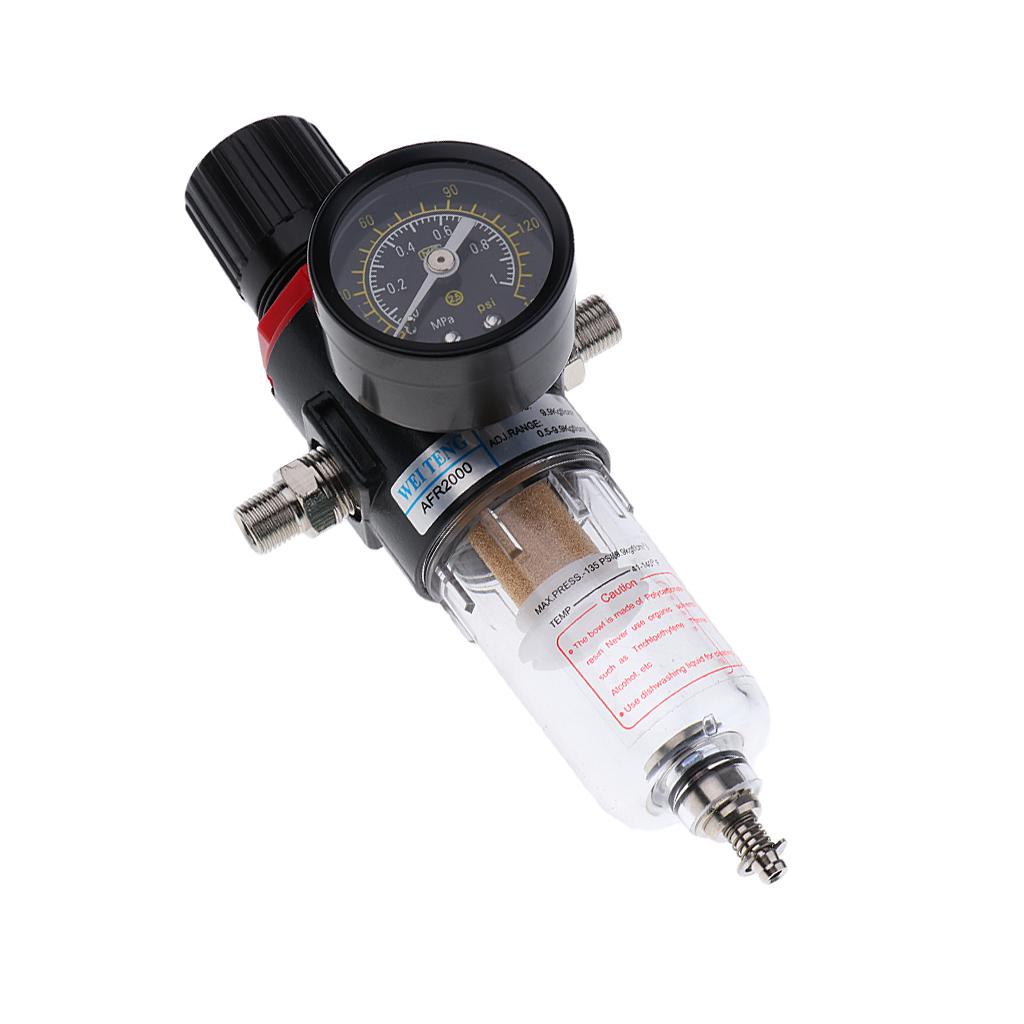

Air Compressor Water Filter W/ Regulator G1/4

Description:

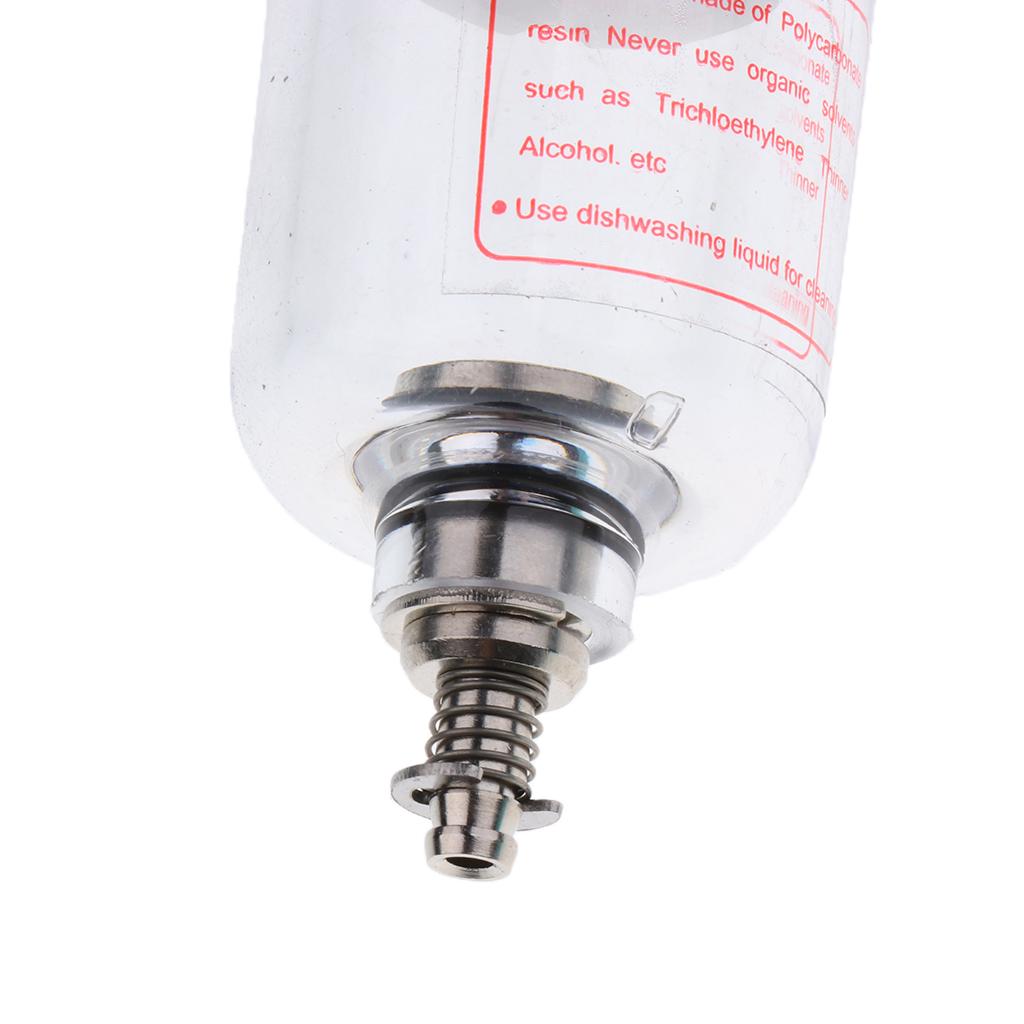

- Discharge water automatically

- Regulator valve adopts balanced inlet structure

- Widely used for pneumatic tool and components

- Help filter liquid and foreign particles from compressed air line

- With the advantages of stable pressure, high precision, and

- Filter adopts novel vane design with high division efficiency and differential pressure discharge device

Specification:

- Model: AFR2000 (AFR is the model, 2000 refers to the port size)

- Operating Fluid: Air

- Joint pipe bore: /4"

- Range of Adjustable Pressure: 0.05-0.99 Mpa

- Max. Adjustable Pressure: 0.99 Mpa

- Ensured Pressure Resistance: 1.5 MPa

- Operating Temperature Range: 5℃~60℃

- Filter Grade: 40 µ

- Capacity of Body: 15 cc

- Material: Metal,

- Size (After installation): Approx. 6.29 x 2.75 x 2.75 inch/16 x cm

- Color: Black or white(Random)

Package Includes:

1 x Pneumatic Filter Regulator

1 Gauge

2

Note: Caution: 1. The bowl is made of polycarbonate resin never use solvents such as trichloroethylen, thinner alcohol .etc 2. Use dish washing liquid for cleaning.
