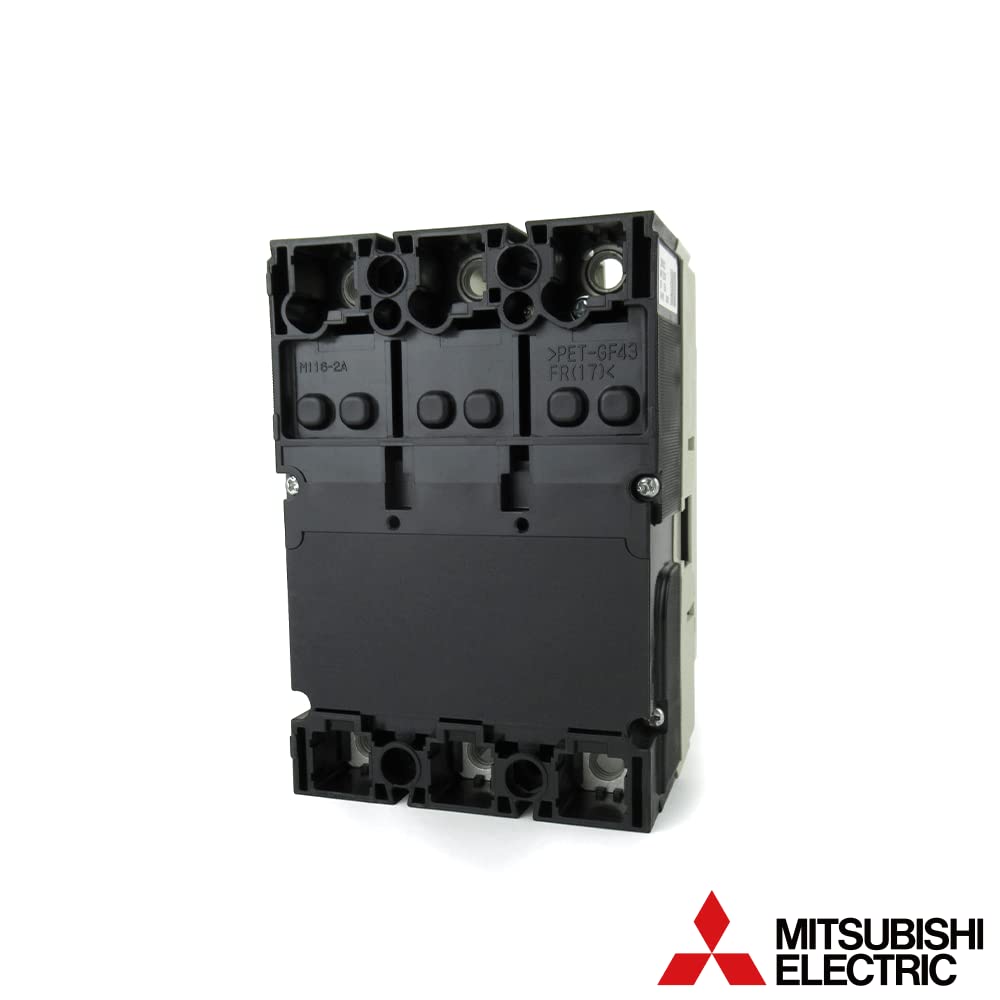

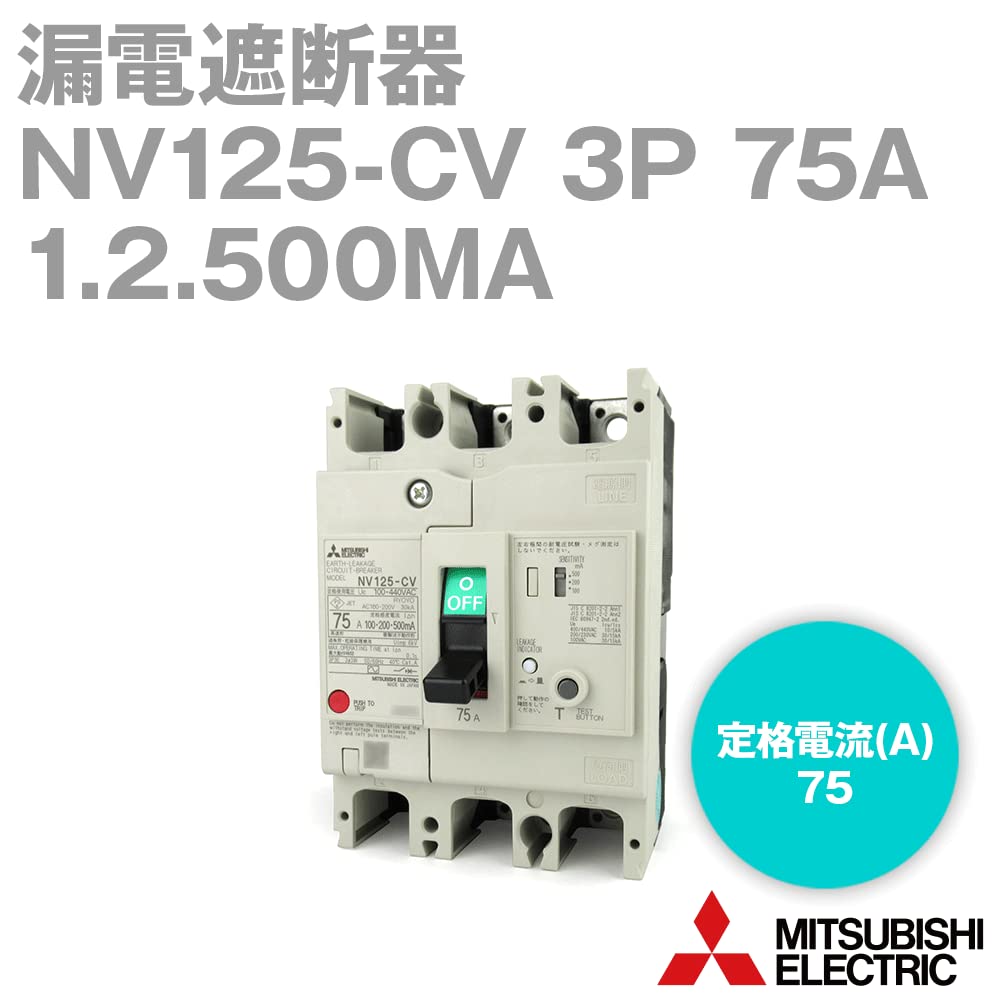

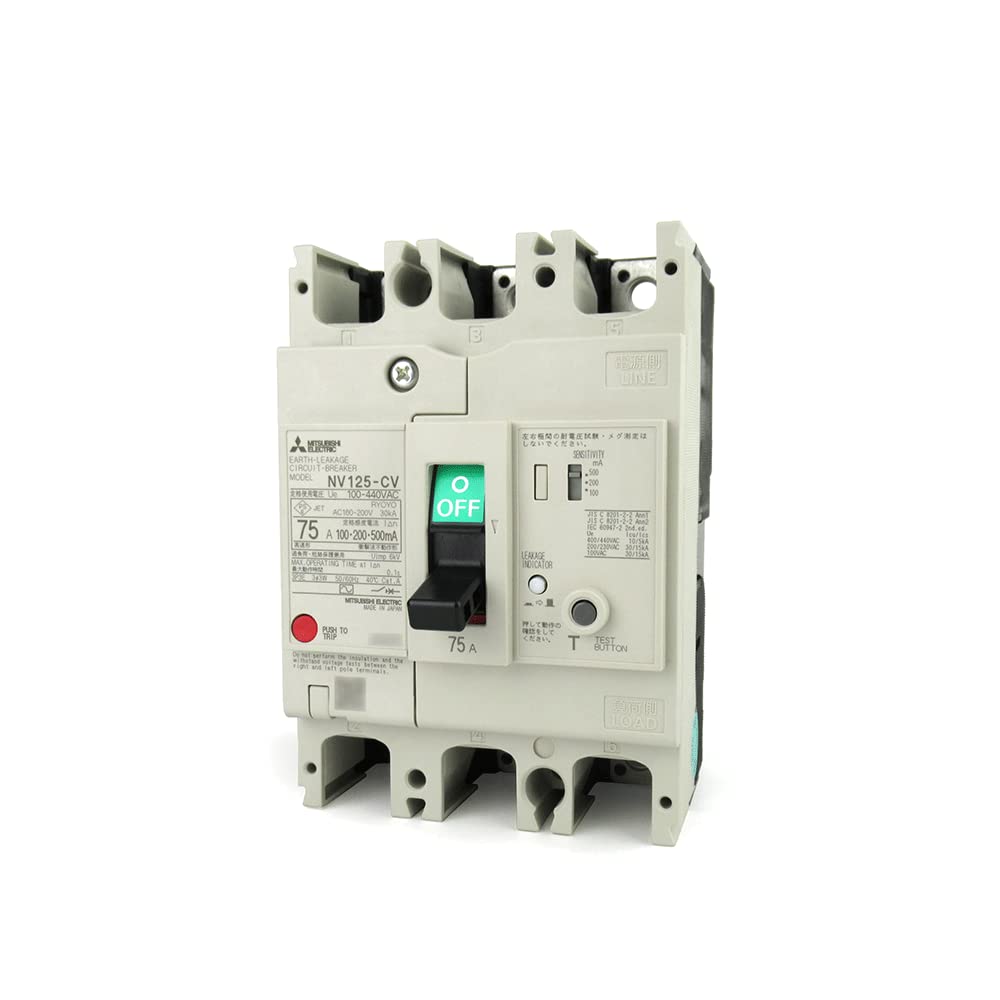

Mitsubishi Electric 3P 75A Leakage Circuit NN NV125-CV 1.2.500MA (Earth Breaker) (3 Pole) (AC 100-440)

Current price

Price €231.20

VAT included

Delivery 11‑33 business days

Delivery €3.90

Returns & refunds

Secure payments

Our support team speaks English

Safety & compliance documents

Description

Brand: Mitsubishi Electric Part number: NV125-CV 3P 75A 100-440V 1.2.500MA Connection method: Front type (AMP-N) Rated operating voltage: 100-440VAC Rated sensitivity current: 100, 200, 500mA switchable Rated current: 75A Connection method: Front type (AMP-N) Phase wire type 1Φ2W, 3Φ3W, 1Φ3W *When using a 3-pole earth leakage circuit breaker for 1Φ2W, connect to the left and right poles without using the center pole. When using for 1Φ3W, connect the center wire to the center pole. Rated operating voltage (AC V) 100-440 Frame (AF) 100 Dimensions (width W x height H x depth D) (mm) 90 x 130 x 90 Number of poles 3P Rated voltage AC V100-440 Rated sensitivity current (mA) 100, 200, 500 switching Compatible isolation Mass (kg) 1.0 Type (current) AC Rated current (A) 75 Rated breaking capacity (kA) AC440V: 10/5, AC415V: 10/5, AC400V: 10/5, AC230V: 30/15, AC200V: 30/15, AC100V: 30/15 Number of poles (P) 3
