Feature:

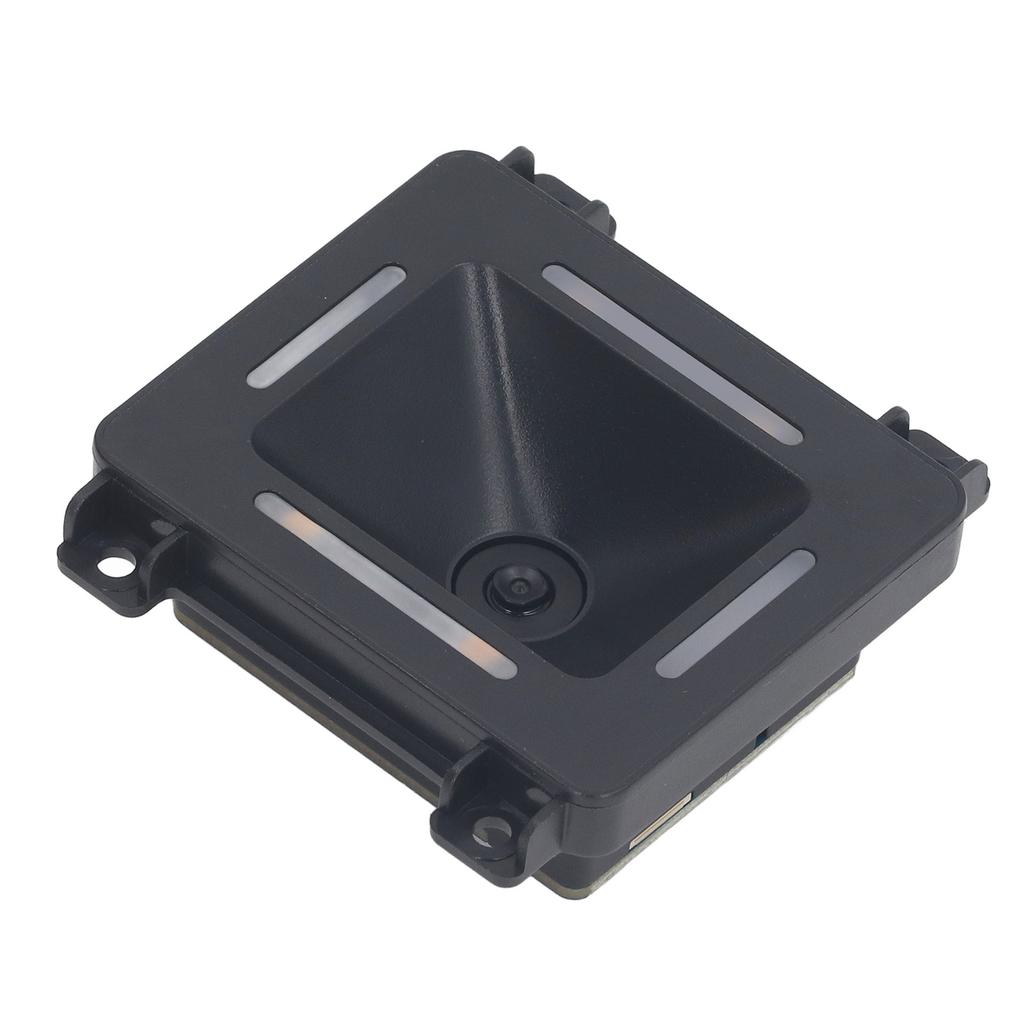

1. SCANNING MODULE: Embedded barcode scanning module with NFC card reader, supporting plug and play, has easy integration, strong compatibility and universality, and wide applicability.
2. WIDE APPLICATION: This embedded scanning module is suitable for various self service machine devices such as ticket machine, access control system, payment system, and identity authentication.
3. AUTOMATIC SENSING: The barcode scanning module supports automatic sensing, which instantly wakes up and reads the barcode when it passes through the scanning window, saving energy and time.
4. APPLICABLE BARCODES: Able to quickly recognize paper and film 1D codes, 2D codes, high reflective or low brightness screen codes, payment codes, red background barcodes, and other barcodes.
5. HIGH PERFORMANCE: The embedded barcode scanning module adopts excellent for CMOS 640x480 sensor, with high recognition accuracy and sensitivity, fast scanning speed, and strong decoding ability.
Specification:
Item Type: Scanning Module
Product Model: EP8280NFC
Product Size: Approx. 61 x 64.8 x 26mm 2.4 x 2.6 x 1in
Image Sensor: For CMOS 640x480 Sensor
Light Source: Warm White LED
Barcode Sensitivity: Tilt + 70 degrees , Deflection + 70 degrees , Rotation 360 degrees
Field of View: D=87.1 degrees H=74 degrees V=65 degrees
Reading Accuracy: more than 5mil
Decoding Capability:
1D: Codabar, Code 11, Code 128, Code 39, Code 32, Code 93, EAN 8, EAN 13, ISSN, ISBN, UPC A, UPC E, GS1 DataBar, GS1 128 Hong Kong 2 of 5, for MSI Plessey, for Industrial 2 of 5, for Interleaved 2 of 5, for Straight 2 of 5 IATA, for NEC 2 of 5, for ISBT128, for Telepen
2D: For Aztec Code, for HANXIN, for Maxicode, for Codablock F, PDF417, Micro PDF417, QR Code, Micro QR, DOT Code
Comm Interface: USB
Operating Voltage: 4.8 16VDC
Operating Current (Typical): 300mA
User Indicator: LED Decoding Indicator, Buzzer
Operating Temperature: 10 50 celsius
Storage Temperature: 20 60 celsius
Humidity: 5percent 95percent (Non Condensing)
Environmental Light: 0 100000LX
Scanning Speed: 100 scans sec
Scanning Range: Approx. 10 250mm 0.4 9.8in.

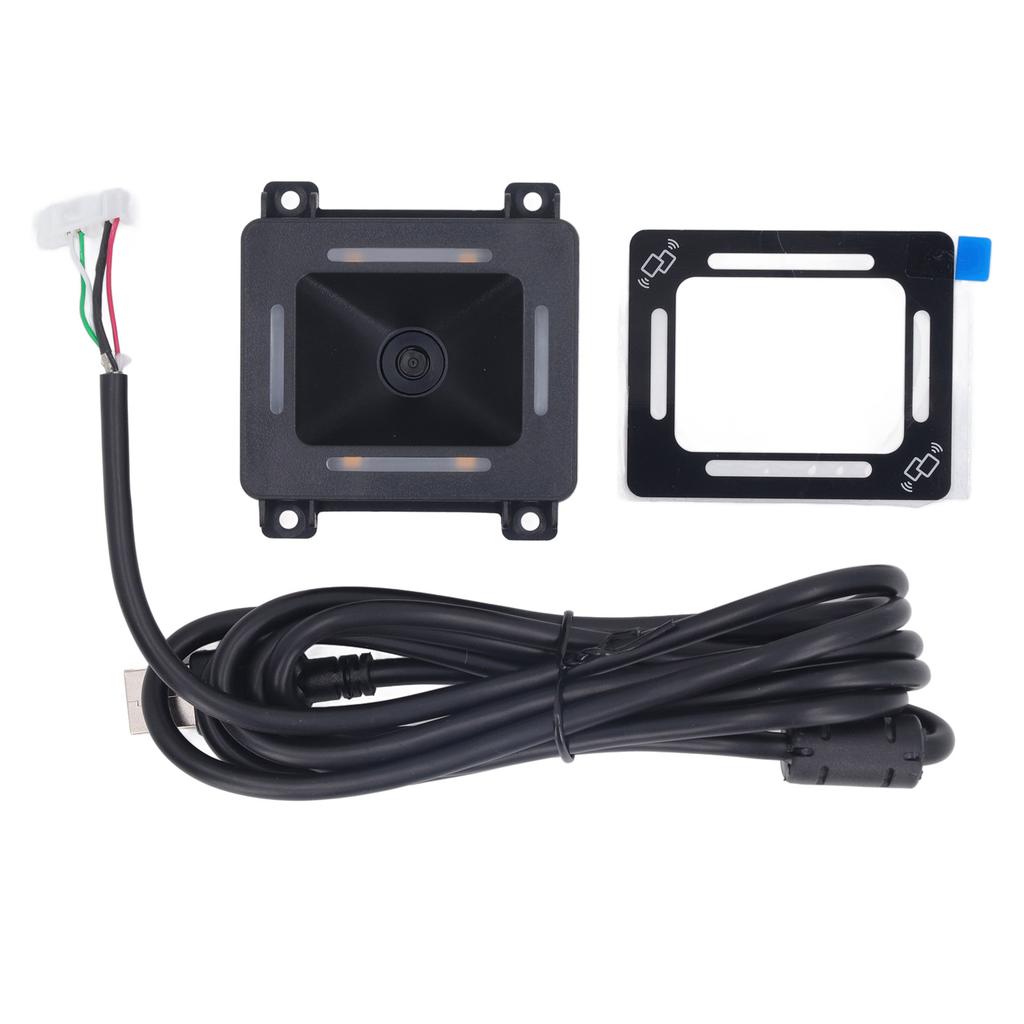

Package List:
1 x Scanning Module
1 x Cable
1 x User Manual
1 x Accessory
