Ayzeze: Warning: Before buying or using this product, please observe the local restrictions and rules such as minimum age of use, safety helmet or other protective equipment rules, license plate registration, third party liability insurance and speed limits. The use of this product on public roads, cycle lanes, pavements, or in other public areas may be restricted or prohibited. Check the product description for the suitability of the product and contact the Seller or the product’s Responsible Person for any questions by using the details provided on this product page.
-----
💗Advantages: All Kukirin scooters can be set to a speed limit mode, so there's no need to worry.
🚀Top speed of 45 km/h ensures both efficiency and a safe ride! Driving in designated non-motorized vehicle lanes easily avoids morning and evening rush hour traffic, reducing a 20-minute commute to around 10 minutes.
🔋The 48V 18.2AH battery with a range of up to 65km easily covers daily commutes! Based on a 20km daily commute, a single charge provides approximately three days of use.
🛞10-inch tires give the Kukirin M4 Max foldable electric scooter a stable ride! Made of highly elastic rubber, they offer both shock absorption and grip, making them less prone to slipping and bumping on city asphalt, light gravel, and rainy roads.
⚡️800W motor delivers balanced power for everyday use! Starts smoothly and without jerking, making it easy for beginners to learn. Even gentle slopes of less than 20° (such as those in community garages and overpasses) can be negotiated smoothly without additional power.
🏋️♂️With a maximum load capacity of 120kg, it's suitable for most user scenarios! Whether an adult user is riding normally or carrying small luggage, shopping bags, or other items, the high-strength alloy frame provides stable support and resists deformation under load, ensuring safety and durability during riding and meeting the diverse needs of solo travel.
📦 The foldable design combines high performance with portability! It folds quickly in just 2-3 steps, creating a compact size that easily fits in a car trunk, subway luggage rack, office corner, or home entryway, saving space and making it a hassle-free carry-on for diverse urban travel.
Product Specifications:
Product basic parameters
1. Weight
Product gross weight: 28.3 ± 0.5kg
Net weight of product: 24 ± 0.5kg
2. Size
Unfolding dimensions of the vehicle: 1180 * 590 * 1295mm
Folding size of the car body: 1190 * 590 * 515mm
Horizontal bar size: 590mm
Pedal size: 450 * 175mm
Pedal to crossbar height: 1020mm
Chassis height: 135mm
4. Maximum load-bearing capacity: 120kg
5. Speed (km/h):
Maximum speed: 45km/h
1st, 2nd, 3rd gear: 15km/h, 25km/h, 45km/h
1st, 2nd, 3rd gear: 15km/h, 20km/h, 25km/h
6. Battery life:
Medium speed range (65kg load): 64km
7. Performance:
Climbing ability: 20 °
Braking system: front and rear disc brakes+electronic brake
Braking distance: 6-8m
Protection level: IP54
8. Material:
Frame material: aluminum alloy+carbon steel
9. Motor:
Motor type: Wheel hub motor
Voltage: 48V
10. Acceleration mode: sine wave
11. Power data
Rated power: 800W
Instantaneous maximum power: 1000W
Outer Box label And Product label: 500W
Rated speed: 1000 ± 40rpm
Maximum output torque: 27.1N. m
12. Battery:
Model: 18650 lithium battery
Voltage: 48V
Capacity:
Single cell capacity: 2600mAh
Battery pack capacity: 18.2Ah
Standard power consumption: 0.864KW. H
Battery Protection System: Battery Protection Board (BMS)
13. Charger
Input voltage: 100~240V/50~60Hz
Input current: 2.5A
Output voltage: 54.6V
Output current: 2A
Charging time: 9-10 hours
Front shock absorber: Spring shock absorber
Rear shock absorption: Spring shock absorption
14. Lighting system
Headlight type: LED
Headlight power: 2W
Headlight illumination angle: 60 °
Headlight illumination area: 4 square meters
Turn signal: Yes
Tail lights: Yes, the tail lights light up when the front lights are on; Flashing tail lights when braking
15. Tires
Size: 10 inches
Type: Vacuum tire
Best tire pressure: 250kPa (36psi)

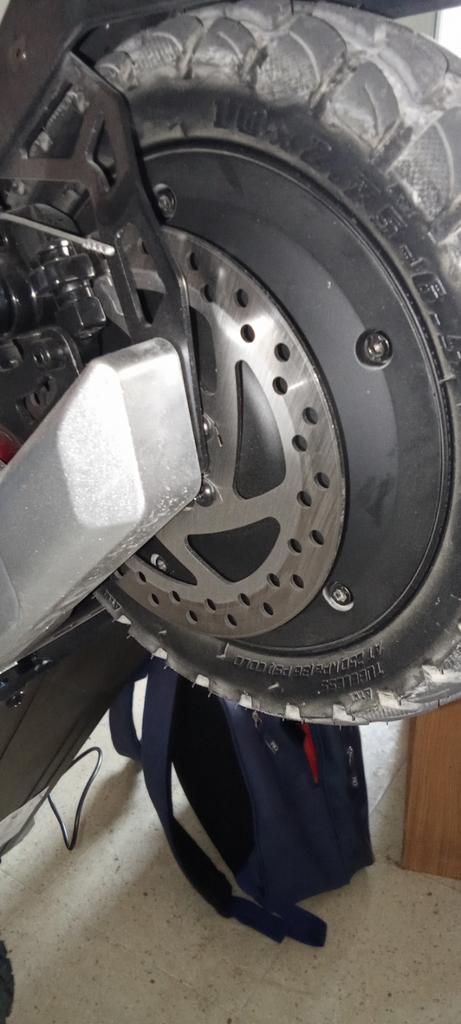

16. Disc brake disc:
Outer diameter: 140mm
Thread inner diameter: M6
17. Display screen:
Type: LED
Instrument material: PC board, LCD screen, plastic shell
Size: 126 * 115mm
Display content: speed display, battery level indicator, fault prompt, headlight indicator, cruise indicator, gear indicator, total mileage, single mileage, real-time voltage, starting mode, etc
Function settings:
1. In the power on state, press the S key briefly to release the P gear;
2. Press and hold the M key for 5 seconds to switch between speed limit and no speed limit modes;
3. Short press the M key to change the vehicle speed status, and cycle the gear from low gear to high gear;
4. Simultaneously press and hold the S and M keys to enter parameter mode settings. In the settings interface, short press the S key to switch menu options; Short press the M key to adjust menu parameters; When adjusting parameters by short pressing the M key, the parameters will flash. At this time, short pressing the M key will add the value, and short pressing the S key will subtract the value. After adjusting, long pressing the S key will save the adjusted parameters; After completing the parameter adjustment, press the S and M keys simultaneously to exit the parameter settings;
P1: Public/mile unit;
P2: Instrument displays temperature; 0: Not displayed; 1: Display motor temperature; 2: Display controller temperature;
P5: Cruise and non cruise modes; 0: No cruising; 1: Cruise;
P6: Zero start and non-zero start settings; 0: Zero startup; 1: Non zero startup;
PB: Electronic brake strength;
1：25%； 2：50%； 3：75%； 4：100%
PC: Mileage reset: Short press the M button, the screen will flash, and long press the M button to reset the mileage. "
Packing list: charger * 1, instruction manual * 1, combination tool * 1, rear mudguard * 1, fixing screws for rear mudguard * 4, pole plug * 1, key * 2
