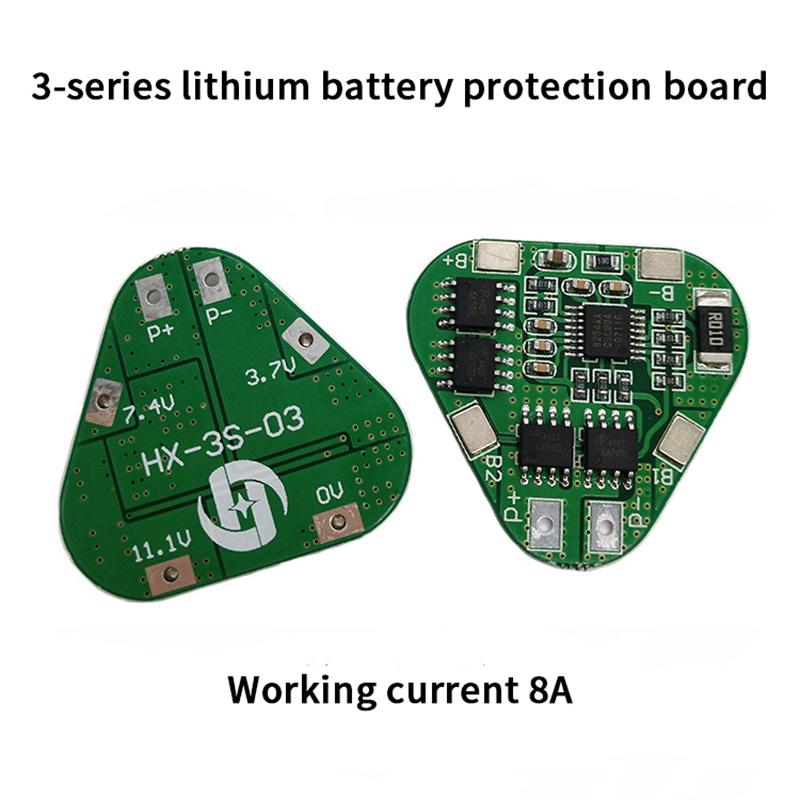

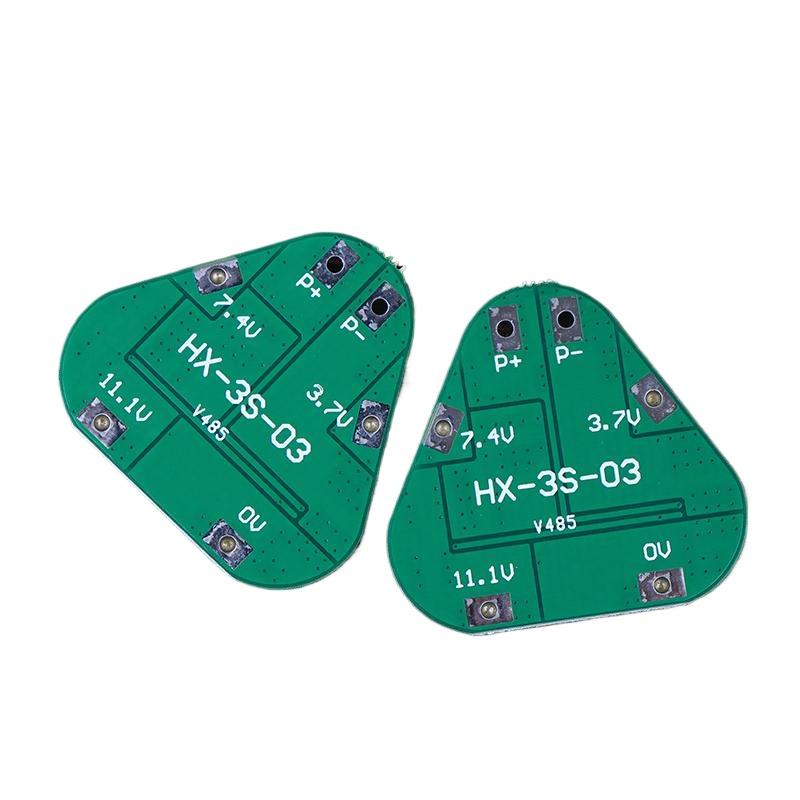

1/3/5Pcs 3S 12V 18650 Lithium Battery Protection Board 11.1V 12.6V Overcharge Over-Discharge Protect 8A 3 Cell Pack Li-Ion

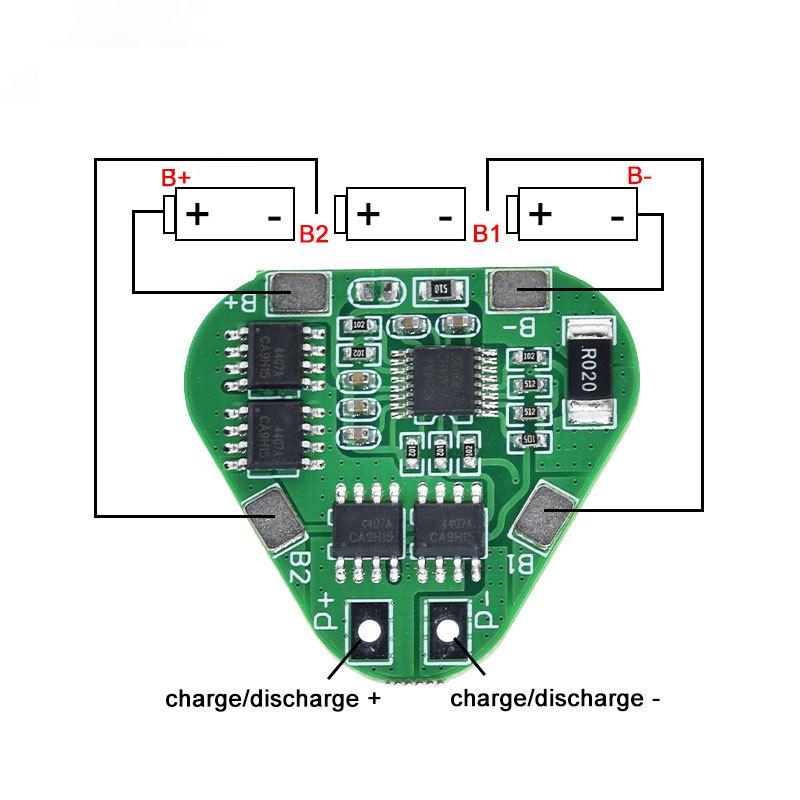

Description: Model: HX-3S-03 For lithium battery operating voltage: 10.8V~12.6V Overcharge voltage range: 4.25-4.35v±0.05v Over-discharge voltage range: 2.3-3.0v±0.05v Upper limit working current: 6-8A Working temperature: -40---+50 °C Upper limit instantaneous current: 9-10A Storage conditions: -40-- +80 ° C Quiescent current: less than 30uA Internal resistance: less than 100mΩ Features: Protections: Short circuit protection, overcharge protection, over-discharge protection and over current protection. Short circuit protection: protection, delay self-recovery. Application: 10.8V(3.6V*3S) lithium battery & packs 11.1V(3.7V*3S) lithium battery & packs 12.6V(4.2V*3S) lithium battery & packs Prismatic Lithium polymer battery (Li-Po) could also work for 3S2P(6 cells), 3S3P(9 cells),3S4P(12 cells) etc. Packing:1/3/5Pcs The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
