1. KEY FEATURES:
- Reliable enough to be used as genuine equipment by Fender and Gibson
- Eliminates "sound leakage" when the volume is 0, which was an issue with conventional products
- Improved sound quality with solid brass shaft
- Pod diameter 24mm, shaft length 16mm (threaded part: 6mm)
2. PRODUCT DESCRIPTION:

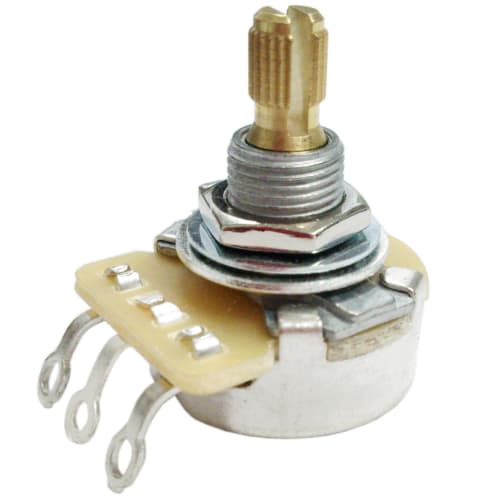

This is a volume/tone pot used for electric guitar/bass volume and tone circuits. The CTS product is so reliable that it is used as a genuine product by Fender and Gibson, and the custom CTS pot eliminates "sound leakage" when the volume is 0, which was a problem with conventional products. A special silver material is mixed into the carbon that serves as the resistor, and the residual resistance, which normally averages about 20Ω, is reduced to 4Ω or less, solving sound leakage and minimizing signal loss at full tension. It also uses a solid brass shaft, which has been proven to improve sound quality. The bottom part adopts the "flat back style" seen in 50's Gibson, and the rotational torque is set to an appropriate weight by changing the internal grease. Operability has also been significantly improved. Normally, the B curve is used for volume, and the A curve is used for tone, but the operability will be even better if you choose the one that suits your play style. The notches on the shaft are inch-standard, so please use inch-standard knobs. The diameter of the pod is 24mm, and the shaft length is 16mm (threaded part: 6mm). Topwood/HTK-B500CTS/C Made in USA
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 0.02 kg
- Dimensions: 7.4 x 5.0 x 2.8 cm
4. SPECIFICATIONS:
- Brand: Topwood
- Model Number: HTK-A500CTS/C
- Manufacturer: Topwood
