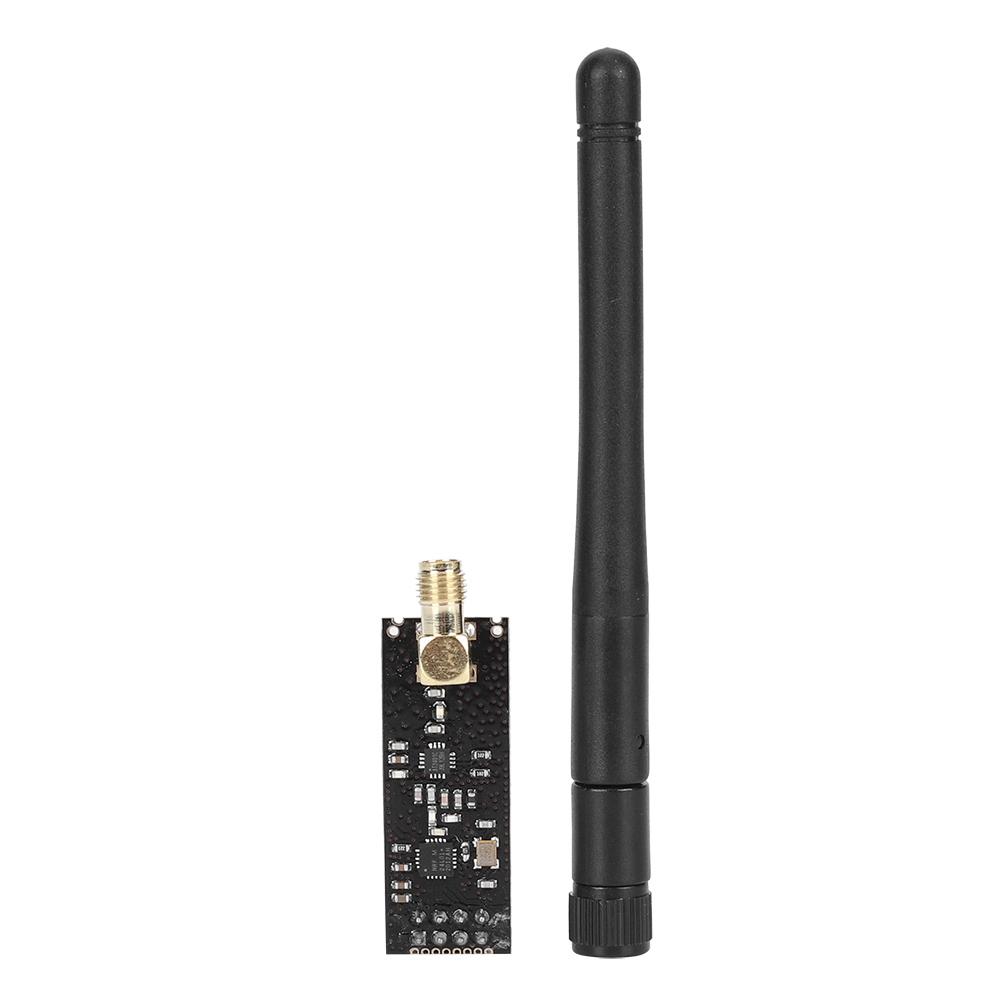

Wireless Module Electrical Accessory NRF24L01+ Power Amplifier LNA for 1100 Meters

Feature: 1. The wireless module of NRF24L01 + power amplifier + LNA is a high power and high sensitivity wireless data transmission module specially developed for 1100 meters ultra long distance data transmission. 2. NRF24L01P+Power Amplifier+LNA wireless module works in the 2.4G frequency band without license and it can support point to point applications can also form a star network. 3. Digital transmission chip NRF24L01+, which adds high power power amplifier and LNA chip, radio frequency switch, band pass filter, etc. And they constitute a professional completely bidirectional RF power amplifier, which makes the effective communication distance greatly expanded. 4. In the radio frequency part, a lot of optimization and matching are done to make the transmission efficiency get the highest and the harmonics are the smallest, so that the NRF24L01P + power amplifier+LNA wireless module has the lowest radio frequency interference to external equioments, and it is not susceptible to interference from other equioments, which greatly improves the stability of work. 5. And NRF24L01P+power amplifier+LNA wireless module is highly integrated and easy to embed in any product with space constraints. Customers need to add a microcontroller unit to control NRF24L01P+power amplifier+LNA through serial peripheral interface port. 6. Wireless module can complete the design of the ultra long distance wireless data transmission system, and there is no need to worry about the research and development of the RF part, which greatly reduces the research and development funds and shortens the research and development cycle. Specification: Item Type: Wireless module Size: Approx. 41 x 15.5mm 1.6 x 0.6in Operating Voltage: 3 3.6V (recommended 3.3V) Maximum Output Power: +20dBm Working Current (Peak) in Launching Mode: 115mA Receiving Mode Working Current (Peak Value): 45mA Power Down Mode Current: 4.2uA Working Temperature: 20 70 celsius Receive Sensitivity 2Mbps Mode: 92dBm Receive Sensitivity 1Mbps Mode: 95dBm 250kbps Receiving Sensitivity Mode: 104dBm Power Amplier Gain: 20dB LNA Gain: 10dB LNA Noise Figure: 2.6dB Antenna Gain (Peak Value): 2dBI At 2MB Rate (Open Space): 520meter Error: + approx. 0.5mm 0.02in Detail Size: Approx. 5mm 0.2in Approx.3.6mm 0.14in Approx. 2.54mm 0.1in interval space Approx. 1.27mm 0.05in interval space Approx. 40.8mm 1.6in Approx. 15.3mm 0.6in Approx. 3.5mm 0.1in . Package List: 1 x Wireless Module1 x Antenna
