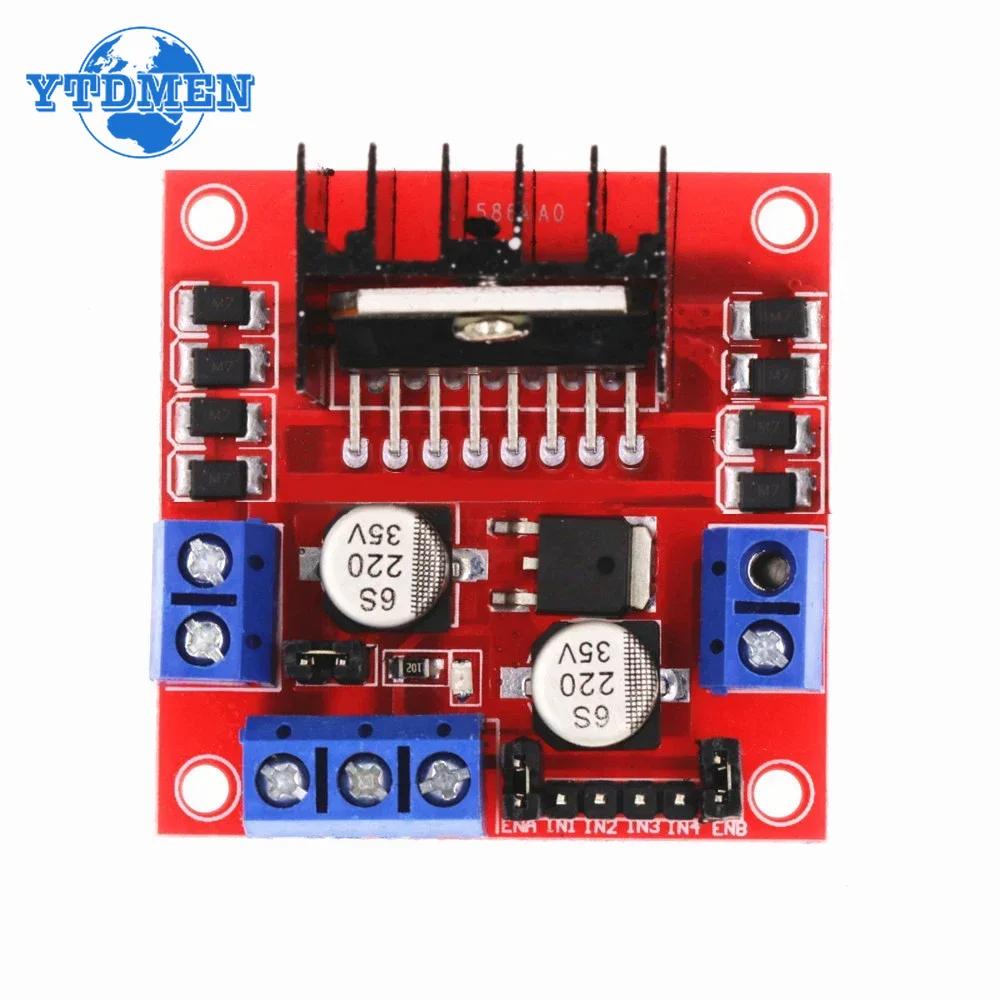

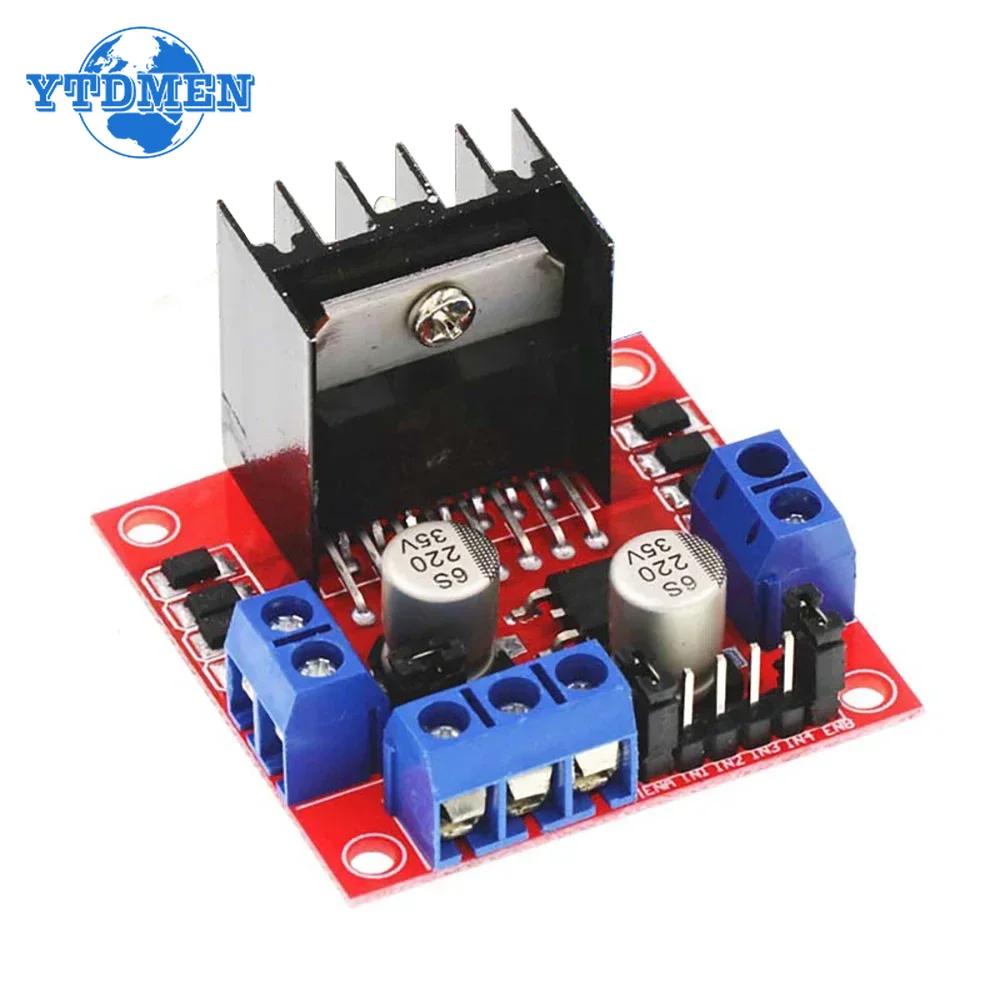

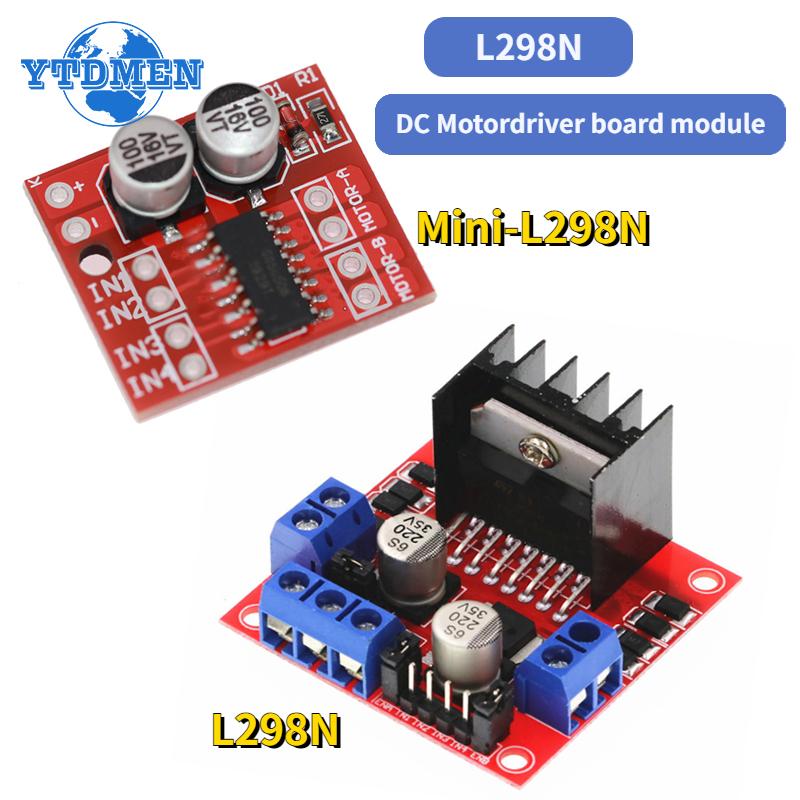

L298N
Product Description:
Module name: dual H-bridge motor drive module
Main control chip: L298N
Logic voltage: 5V
Logic current: 0mA-36mA
Storage temperature: -20°C to +135°C
Weight: 30g
Operating mode: H-bridge drive (dual)
Driving voltage: 5V-35V
Driving current: 2A (MAX single bridge)
Power: 25W
External Dimension: 43*43*27mm
Product Features:
★ This module uses ST's L298N as the main driver chip, which is characterized by strong driving ability, low heat generation and strong anti-interference ability.
★ This module can use the built-in 78M05 by driving the power supply part of the power work, but in order to avoid damage to the voltage regulator chip, when using more than 12V drive voltage, please use the external 5V logic power supply.
★ This module uses high-capacity filter capacitors, continuous current protection diodes, which can improve reliability.
Caution:
1. When your drive voltage (the above diagram identifies 12V input, the actual acceptable input range is 7-12V) is 7V-12V, you can enable the on-board 5V logic power supply, when using the on-board 5V power supply, the interface in the +5V
When the on-board 5V supply is used, the +5V supply in the interface does not need to be input, but can draw out 5V for external use. (This is a regular application!)
2. When the drive voltage is higher than 12V, less than or equal to 24V (the chip manual can support up to 35V, but according to the experience of the general 298 conservative application voltage support).
(The chip manual suggests that it can support up to 35V, but according to experience, the general 298 conservative application voltage support to 24V is already very impressive!) When, for example, to drive the rated voltage of
18V, for example, to drive a motor with a rated voltage of 18V. First, you must remove the jumper cap that enables the on-board 5V output. Then the 5V output port is externally connected to the 5V enable.
5V enable is a control signal with a level of 5V. When this signal input is valid, and the power supply in the motor driver module is normal, the motor driver module will output current. Otherwise, even if the power supply is normal, there is no current on the motor.
The voltage is supplied to the internal logic circuit of L298N. (This kind is an unconventional application of high voltage drive!)
