Product Name: OK Model Oregano 2 Blue DX 1.45m
Brand Introduction: OK Model is a brand from Japan known for providing high-quality radio-controlled aircraft models, each crafted with exceptional attention to detail and performance.

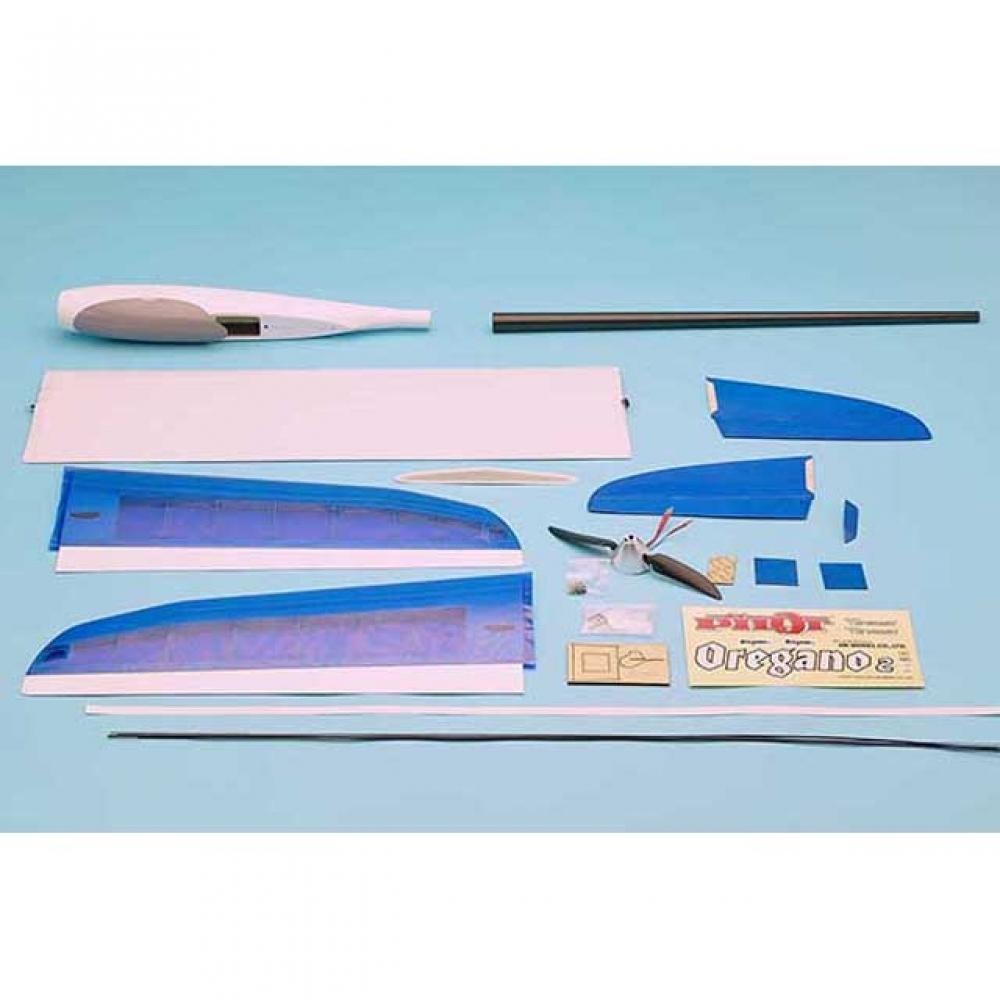

Product Description: The film-covered completed machine "Oregano 2" is a 1.4m class motor glider. The front fuselage pod is structured with a glass fiber gel coat to enhance overall rigidity, while the rear fuselage boom is made from tapered carbon pipe, which ensures that each control surface reacts linearly. The aileron shape, wing profile, wing planform, and dihedral angle have all been finely tuned to deliver excellent gliding performance and maneuverability. The nose is perfectly designed to fit the 38mm spinner for the Apollo motor. The covering uses the ultralight OK Model E-light film. This product is fully designed, engineered, and handmade at our domestic factory in Japan. Enjoy its excellent finishing and sophisticated flight performance.
Usage Instructions: This product is an ARF model with film already applied, requiring assembly of the wing, motor, receiver, and servos for completion.
Specifications:
- Length: 950mm
- Wingspan: 1450mm
- Wing Area: 21.5dm2
- Weight: 0.42-0.48kg
- Motor: Tahmazo Apollo 38V-1150 (7×4.5)
- RC Mechanism: AL(2), RD-EV, ESC
- Difficulty Level: Intermediate
- Completion State: Film applied and ready
- Compatible Power Unit: Electric motor
Cautions: The covering film may exhibit sagging or creasing due to its material properties. In such cases, heat can be applied with a model iron to shrink and remove the film.
Additional Equipment:
- Aircraft transmitter
- Mini receiver
- Servos: Tahmazo TS-D1102(2 for ailerons), Tahmazo TS-D1132MG(2 for rudder)
- Speed controller: Tahmazo Pro.C A-15
- Battery: Tahmazo LP-3S1P600RE
- Charger: Tahmazo LiPo dedicated charger
- Extension cords and general tools are required.
