【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
It comes with Japanese customer technical support and Japanese instructions, allowing you to operate it safely.

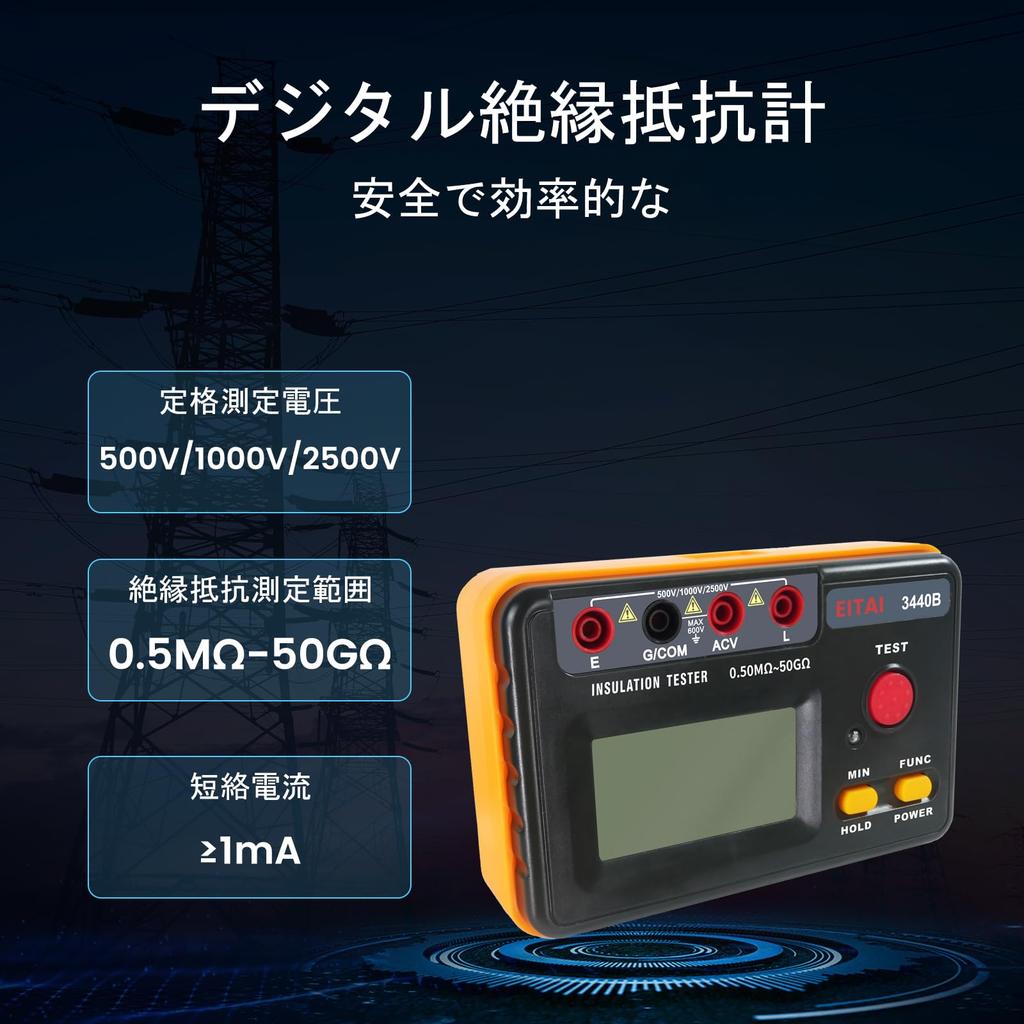

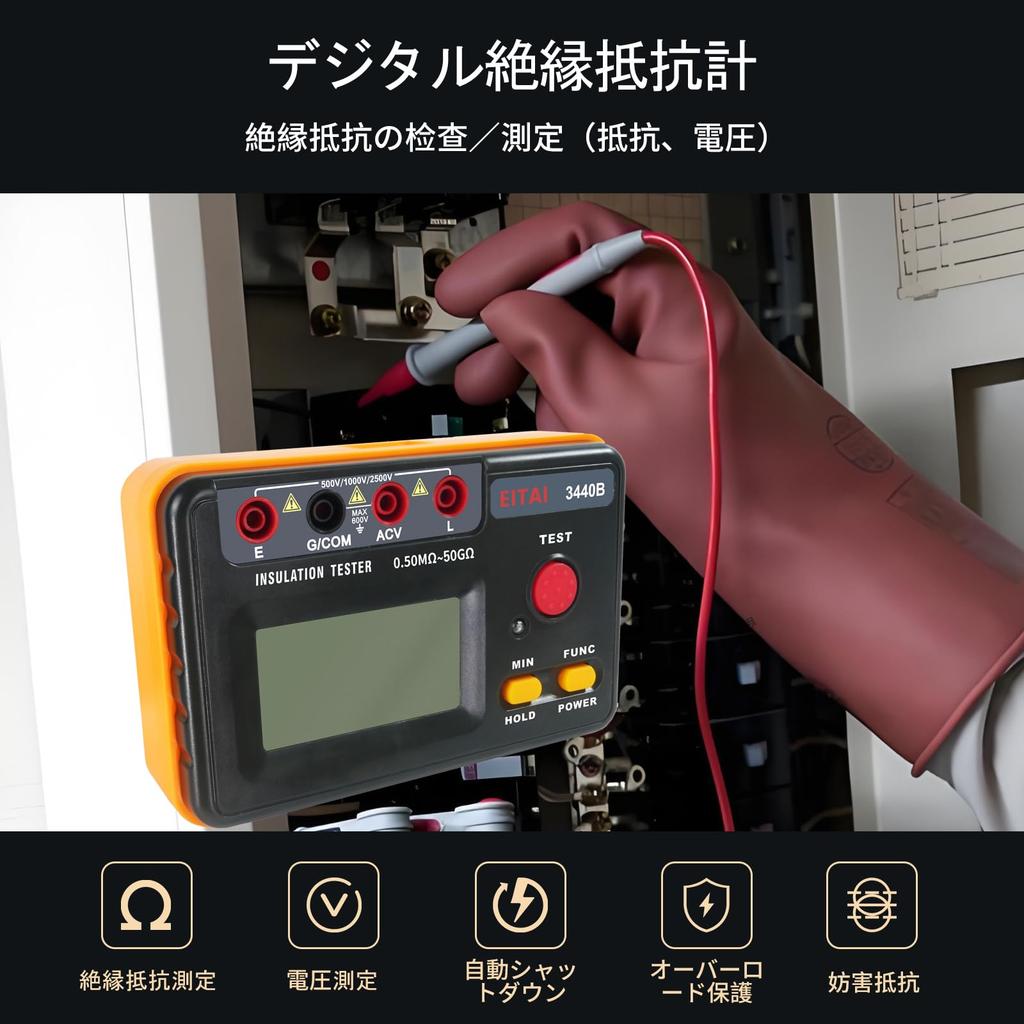

High Accuracy: The EITAI3440B insulation resistance tester provides stable and reliable testing with an output voltage up to 2500V and a short-circuit current of ≥1mA. It also offers high adaptability and repeatability.
[Wide Range Measurement] The EITAI3440B insulation resistance megger can measure insulation resistance up to 50GΩ, making it suitable for a variety of electrical equipment applications.
[Digital display] The insulation resistance value, test time, and output voltage are displayed simultaneously, allowing you to check the measurement data at a glance.
[Efficient Operation] Adjustable test time settings and auto-save function improve work efficiency. The lightweight and ergonomic design makes it ideal for field work and mobile testing.
Model: EITAI3440B Insulation Resistance Tester
Features: The EITAI3440A Insulation Resistance Megger is a high-precision digital insulation resistance tester that is easy to operate, reliable, and highly portable. It supports dual-range test voltage switching (500V/1000V/2500V) and features real-time output voltage monitoring to prevent measurement errors and safety risks caused by undervoltage. It features a wide measurement range up to 10GΩ, customizable test time, and automatic saving of results upon completion or key-operated abort. It is ideal for insulation resistance testing of electrical equipment such as transformers, motors, cables, and switches, making it the perfect tool for maintenance, troubleshooting, and calibration.
Technical Specifications: Rated voltage: 500V; 1000V; 2500V
Output voltage accuracy: ±10%
Insulation resistance range: 0.5MΩ to 50GΩ
Insulation resistance accuracy: ±5%rdg ± 5dgt
Voltage range: AC 0V to 600V
Voltage accuracy: ±1%rdg ± 5dgt
Short circuit current: ≥1mA
Power supply: DC 9V alkaline battery LR14 1.5V x 6
Switching: Press the FUNC key to turn on the power and select the test function.

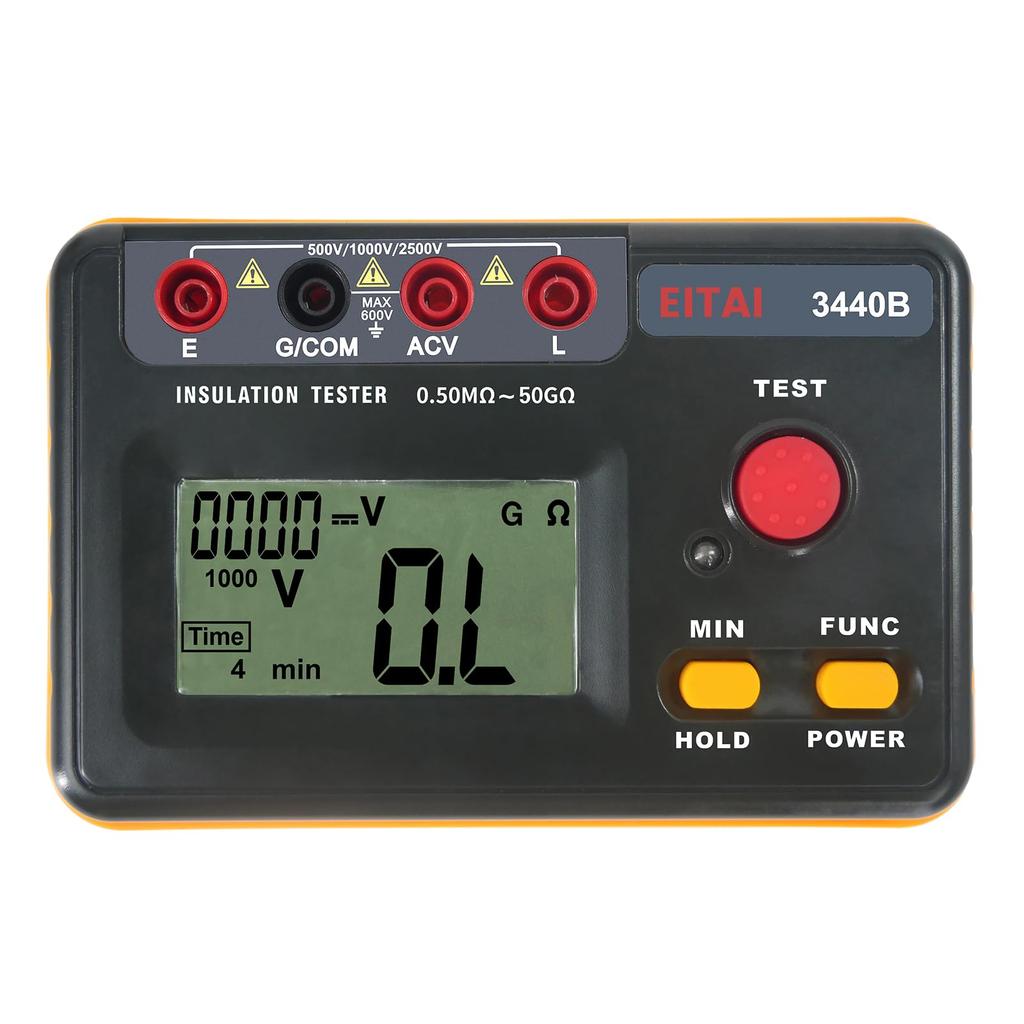

Display method: 4-digit LCD display, maximum display: 3999
Tester dimensions: 150mm (length) x 101mm (width) x 59mm (height)
Weight: Tester: 422g (including batteries); Total weight: 0.9kg (including accessories)
Insulation measurement time: 1/2/4/10 minutes
Voltage: Low voltage symbol display, replacement warning function
Automatic shutdown: Automatically shuts down if no operation is performed for 15 minutes after startup
Power consumption: Maximum power: 4.5W, minimum power: 18mW, rest power:
