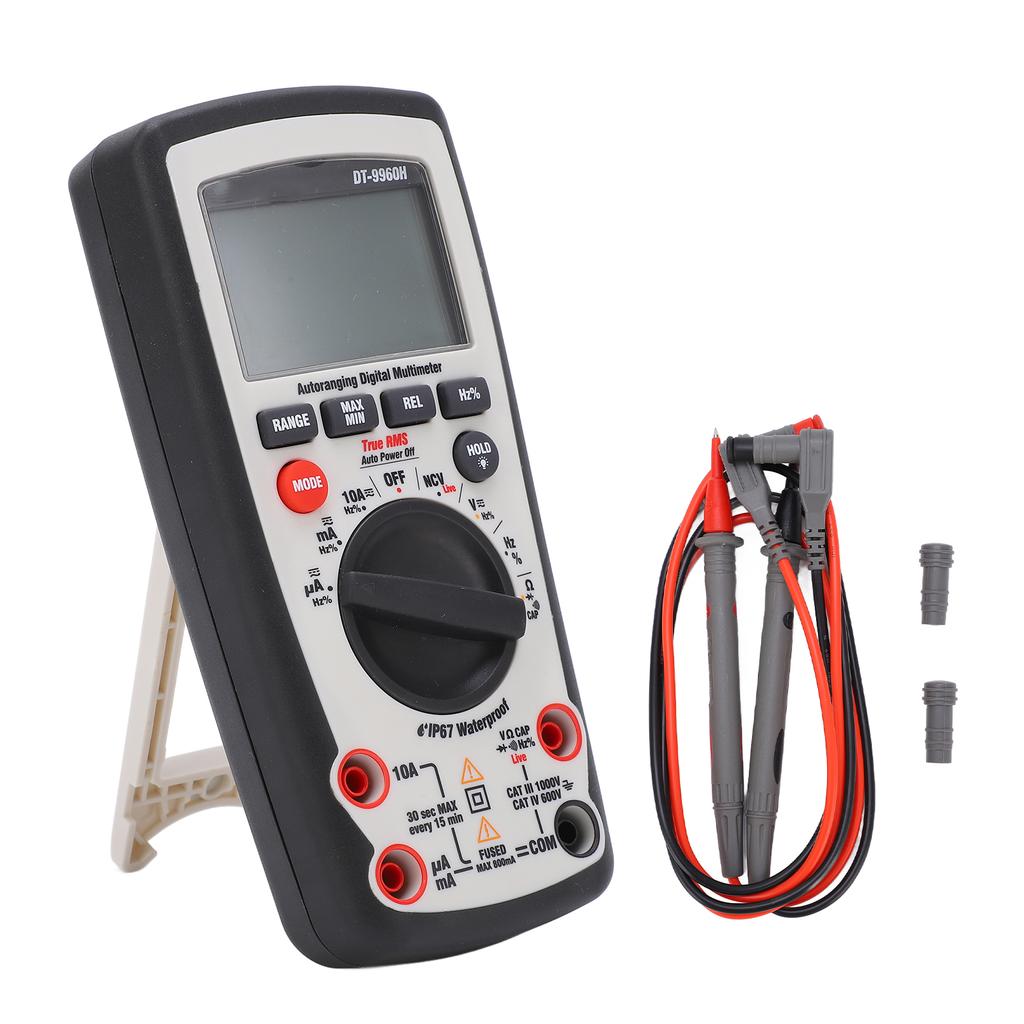

DT‑9960H Multimeter Digital LCD Universal Tester NCV Testing with Overload Protection for Electricity Testing








Popis
Feature: 1. NCV Detection: No close contact is required during measurement, quickly check conceal lines, level 4 strength display. VFD mode eliminates frequency conversion drive failure effectively 2. LCD Dispaly: 6000 digit counting LCD large screen with backlight function, analog bar and digital dual display, the measurement results are clear at a glance 3. Automatic Range Selection: The meter will match the current measurement according to the appropriate range; it can also be manually adjusted to lock the range within a specific range for measurement. 4. Temperature Testing: The temperature measurement range can reach 1300 celsius , and the temperature can be measured when the gear is turned to celsius . K type temperature probe, can be used for air conditioning maintenance detection 5. Full Range Protection: Intelligent anti burning, with overload protection function, high quality explosion proof tube is used, and the operation is safer. Specification: Item Type: Multimeter Model: DT 9960H Material: ABS Battery: 1 x 9V 6F22(battery not included) Purpose: This product can be widely used in residential, industrial factories, tenement, office buildings, home appliance equipment maintenance and testing and other industries Impact Resistance (Drop Test): 2 meters Diode Test: The maximum test current is 0.9mA, and the typical open circuit voltage is about 3.2V DC Continuity Test: if the resistance is less than 50 Ohm , the buzzer will sound, and the test current is <0.35mA Input Impedance: Approximately:> 10M True RMS: AC response The crest factor less than 3 can reach up to 500V at full scale, and the crest factor is reduced to less than 1.5 at 1000V Display: 6000 digit backlit LCD with analog bar graph Over Range: display OL Automatic Shutdown: the meter will automatically shutdown after about 15 minutes without operation (can be disabled) Polarity: automatically distinguish the polarity, ( ) negative indication Measurement Speed: 3 times per second under normal conditions Fuse: mA, uA range: 800mA 1000V ceramic fast blow A Range: 10A 1000V ceramic fast fusing Working Temperature: 0 celsius 50 celsius (32 Fahrenheit 122 Fahrenheit ) Storage Temperature: 10 celsius 60 celsius (14 Fahrenheit 140 Fahrenheit ) Working Humidity: maximum 80percent at 31 celsius (87 Fahrenheit ), and linear drop to 50percent at 40 celsius (104 Fahrenheit ) Storage Temperature: <80percent RH Working Altitude: 2000 meters How to Use: 1. DC voltage measurement Note: Do not perform measurement at the moment when the power is turned on or off, as the high voltage may damage the meter. 1. Set the function switch to the VDC position. 2. Insert the black test plug into the COM jack; insert the red test plug into the positive jack. 3. Touch the tip of the black test to the negative pole of the circuit; touch the tip of the red test to the positive pole of the circuit. 4. Read the voltage on the display. 2. Measurement of AC voltage (frequency, duty cycle) Warning: Risk of electric shock. The tip of the probe may not be long enough to reach the live parts in the 240V socket of some devices because the contacts are recessed deep into the socket. When there is actually voltage on the socket, the reading may show 0 volts. Assuming there is no voltage, make sure that the tip of the probe touches the metal contacts in the socket. Note: If the motor on the circuit is turning on or off, do not measure AC voltage. Large electrical pain may occur, which may damage the meter. 1. Set the function switch to the V Hz percent VFD position and indicate AC on the display. Alternating current 2. Insert the black test plug into the COM jack; insert the red test plug into the positive jack. 3. Touch the tip of the black test to the negative pole of the circuit; touch the tip of the red test to the positive pole of the circuit. 4. Read the voltage on the display. 5. Press and hold the MODE button for 2 seconds, VFD will be indicated on the display. 6. Read the VFD value on the display. 7. To exit the VFD mode, press and hold the MODE button for 2 seconds. 8. Press the Hz percent button to indicate Hz . 9. Read the frequency on the display. 10. Press the Hz percent button again to indicate percent . 11. Read the percentage of duty cycle on the display. 3. mV voltage measurement Note: Do not perform measurement at the moment when the power is turned on or off, as high voltage may damage the meter. 1. Set the function switch to the m Hz percent position. 2. Press the MODE button to indicate DC or AC . 3. Insert the black test plug into the COM jack; insert the red test plug into the positive jack. 4. Touch the tip of the black test to the negative pole of the circuit; touch the tip of the red test to the positive pole of the circuit. 5. Read the mV voltage on the display. 6. Press the Hz percent button to indicate Hz . 7. Read the frequency on the display. 8. Press the Hz percent button again to indicate percent . 9. Read the percentage of duty cycle on the display. 4. Low impedance measurement Low impedance voltage measurement is used to check dummy voltage. When the non power line is very close to the power line, a virtual voltage will appear. The capacitive coupling between the wires makes the unpowered wires appear to be connected to a real voltage source. The low impedance voltage measurement setting places a load on the circuit, which greatly reduces the voltage reading when connected to a dummy voltage. 1. Set the function switch to LoZ, the LCD display will display the symbols LoZ and AC . 2. Insert the black test plug into the COM jack; insert the red test plug into the positive jack. 3. Touch the tip of the black test to the negative pole of the circuit; touch the tip of the red test to the positive pole of the circuit. 4. Read the voltage on the display. DC Voltage 60.00mV 0.01mV + (0.9percent +9digits) 600.0mV 0.1mV 6.000V 0.001V + (0.5percent +5digits) 60.00V 0.01V 600.0V 0.1V 1000V 1V + (0.6percent +6digits) AC Voltage(45 1kHz) 60.00mV 0.01mV + (0.9percent +9digits) 600.0mV 0.1mV 6.000V 0.001V + (0.8percent +4digits) 60.00V 0.01V 600.0V 0.1V 1000V 1V + (0.8percent +8digits) Low Impedance AC voltage 6.000V 0.001V + (3.0percent +30digits) 60.00V 0.01V 600.0V 0.1V VFD 50.0V 700V 0.1V 1V + (4.0percent +9digits) DC Current 600.0microamps 0.1microamps + (1.0percent +3digits) 6000microamps 1microamps 60.00mA 0.01mA 600.0mA 0.1mA 6.000A 0.001A + (1.5percent +3digits) 10.00A 0.1A AC Current 600.0microamps 0.1microamps + (1.5percent +3digits) 6000microamps 1microamps 60.00mA 0.01mA 600.0mA 0.1mA 6.000A 0.001A + (2.0percent +3digits) 10.00A 0.1A Resistance 600.0 Ohm 0.1 Ohm + (1.0percent +2digits) 6.000k Ohm 0.001k Ohm + (0.8percent +2digits) 60.00k Ohm 0.01k Ohm 600.0k Ohm 0.1k Ohm 6.000M Ohm 0.001M Ohm + (1.2percent +2digits) 60.00m Ohm 0.01m Ohm + (1.0percent +5digits) Capacitance 6.000nF 0.001nF in a relative state + (5.0percent +25digits) 60.00nF 0.01nF + (5.0percent +20digits) 600.0nF 0.1nF + (40percent +5digits) 6.000microfarad 0.001microfarad 60.00microfarad 0.01microfarad 600.0microfarad 0.1microfarad 6.000mF 0.001mF + (10percent reading) 60.00mF 0.01mF . Package List: 1 x Multimeter(battery not included)2 x Test 2 x Jack Protective Sleeve1 x Manual Note: Warning: Risk of electric shock. Both AC and DC high voltage circuits are very dangerous and should be measured carefully.1. When the meter is not in use, always turn the function switch to the OFF position. The meter has an automatic shutdown function. After 15 minutes of inactivity, the meter will be automatically turned off.2. If OL appears on the display during the measurement, the value is out of the range you selected, please change it to a larger range.Note: In some lower AC and DC voltage ranges, if the test s are not connected to the device, the display may show randomly changing readings. This is normal and is caused by high input sensitivity. When connected to the circuit, the reading will stabilize and provide an appropriate measurement value.
